TCT 100 – 100 watt Head amplier
100 watts RMS output into 8 or 16 ohm impedance
loudspeaker load.
5 off 7025/12AX7/ECC83 double triode small signal valves
(tubes)
4 off EL34 power valves (tubes)
HT Fuse = T1A (time lag) 250V rated 20mm glass fuse
Mains Fuse = 100V 50/60 Hz supply = T5AL (time lag)
250V rated 20mm glass fuse
Mains Fuse = 120V 60 Hz supply = T5AL (time lag) 250V
rated 20mm glass fuse
Mains Fuse = 230V 50 Hz supply = T2.5AL (time lag) 250V
rated 20mm glass fuse
Mains Fuse = 240V 50/60 Hz supply = T2.5AL (time lag)
250V rated 20mm glass fuse
Warning! Where fuses specied are rated at 250V please
be aware that this is the rating of fuse value and NOT the
rating of your particular amplier
TCT100H head Dimensions (mm) = 702 (W) x 248 (H) x
259 (D) – Weight = 22Kg
TCT 50 – 50 watt Head amplier, TCT50C – 50 watt 2 x 12”
Combo
50 wat ts RMS output into 8 or 16 ohm impedanc e
loudspeaker load.
5 off 7025/12AX7/ECC83 double triode small signal valves
(tubes)
2 off EL34 power valves (tubes)
HT Fuse = T500mAL (time lag) 250V rated 20mm glass
fuse
Mains Fuse = 100V 50/60 Hz supply = T3.2AL (time lag)
250V rated 20mm glass fuse
it is usually for a very good reason, it could be anything
from a voltage spike on the mains power, to a serious
malfunction of your amplifier. Fuses are there for your
protection – treat them with respect, and never replace
with the wrong value!
Mains Fuse = 120V 60 Hz supply = T3.2AL (time lag) 250V
rated 20mm glass fuse
Mains Fuse = 230V 50 Hz supply = T1.6AL (time lag) 250V
rated 20mm glass fuse
Mains Fuse = 240V 50/60 Hz supply = T1.6AL (time lag)
250V rated 20mm glass fuse
Warning! Where fuses specied are rated at 250V please
be aware that this is the rating of fuse value and NOT the
rating of your particular amplier
TCT50H head Dimensions (mm) = 702 (W) x 248 (H) x 259
(D) – Weight = 17.9Kg
TCT50C 2x12” combo Dimensions (mm) = 702 (W) x 267 (H)
x 536 (D) – Weight = 33.5Kg
CAUTION! There are no user serviceable parts mounted
inside your amplifier! Refer servicing to suitably qualified
personnel.
AMI 3 WAY FOOT-PEDAL – the 3 way foot-pedal supplied
with your TCT50/100 amplier has a couple of features that
you may want to be made aware of. Firstly the supplied 5
way DIN cable can be replaced if required by any 5 way
DIN lead – either screened or unscreened. Secondly, to
help the foot-pedal t better in with your normal stage set-
up, the cable connection can be made Right Hand (as
supplied) or can be converted to Left Hand connection.

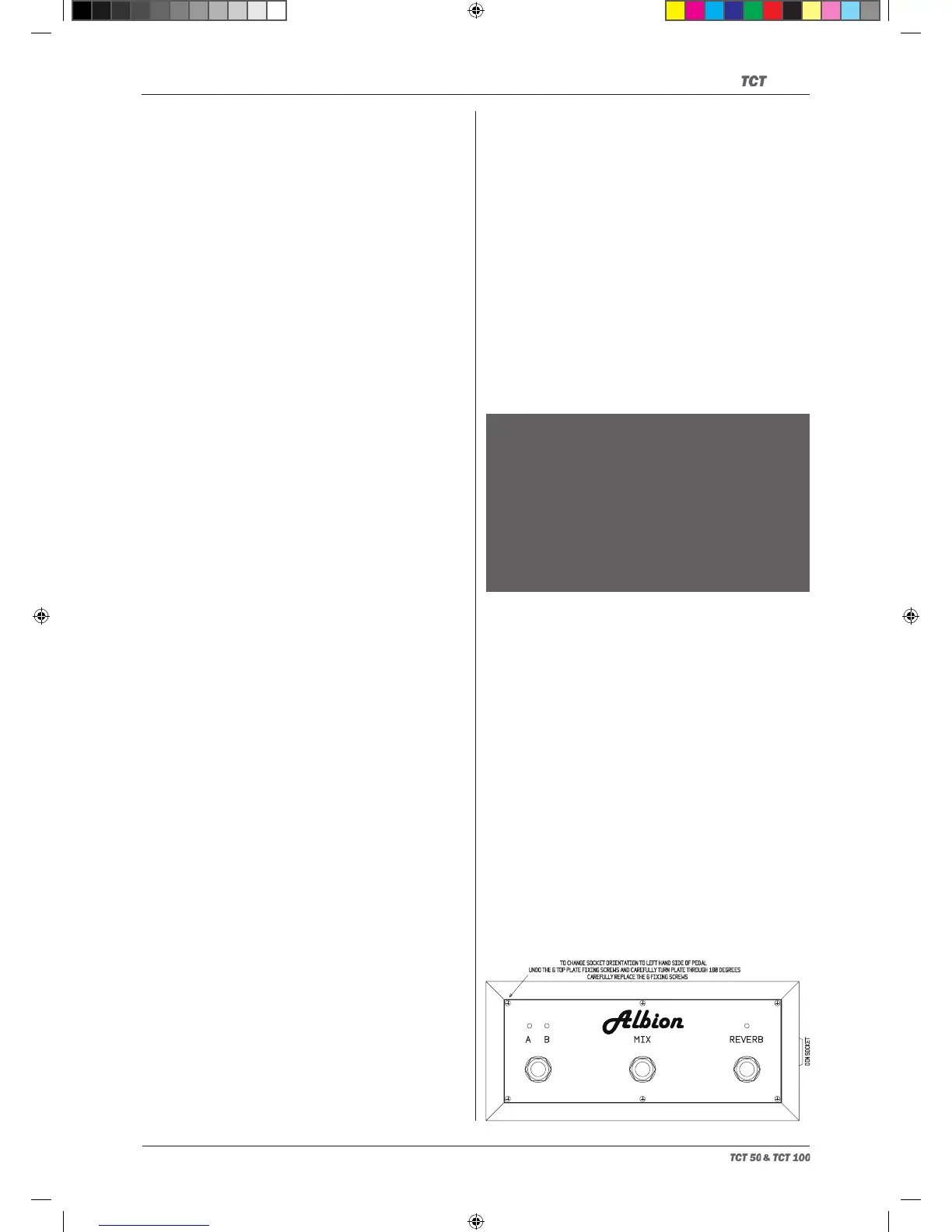

Please see the diagram below.
CAUTION!
There are no user serviceable parts mounted
inside your amplier! Refer servicing to suitably
qualied personnel.
This means that for your own safety and the
correct performance of your amplifier, do not
open the chassis unless you really do know what
you are doing!
