Alcatel-Lucent RMAB User Manual

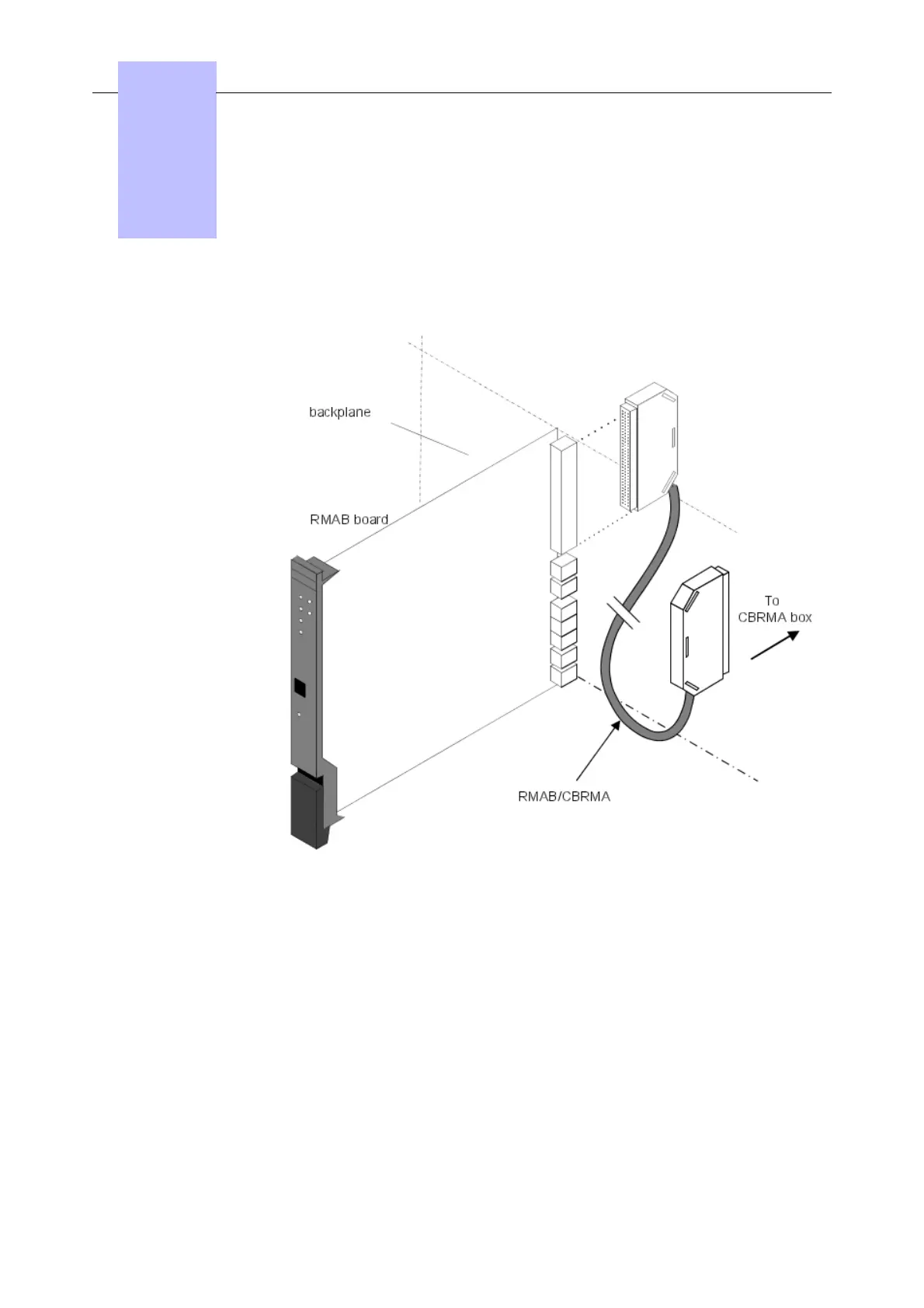

3.1 Connection
The RMAB plugs either into a BRMA box either into an interface position of PABX.
The RMAB /CBRMA cable is describe in RMAB/CBRMA cable - Hardware description .
When the RMAB board is in a BRMA box, the connections are described inM2 cabinet -
Internal connections .
3.2 Output pins
The RMA board output points are shown below :


 
'       # "##!"#
3-1
