ALDI RANGE MASTER HIL-1500DI - Page 5

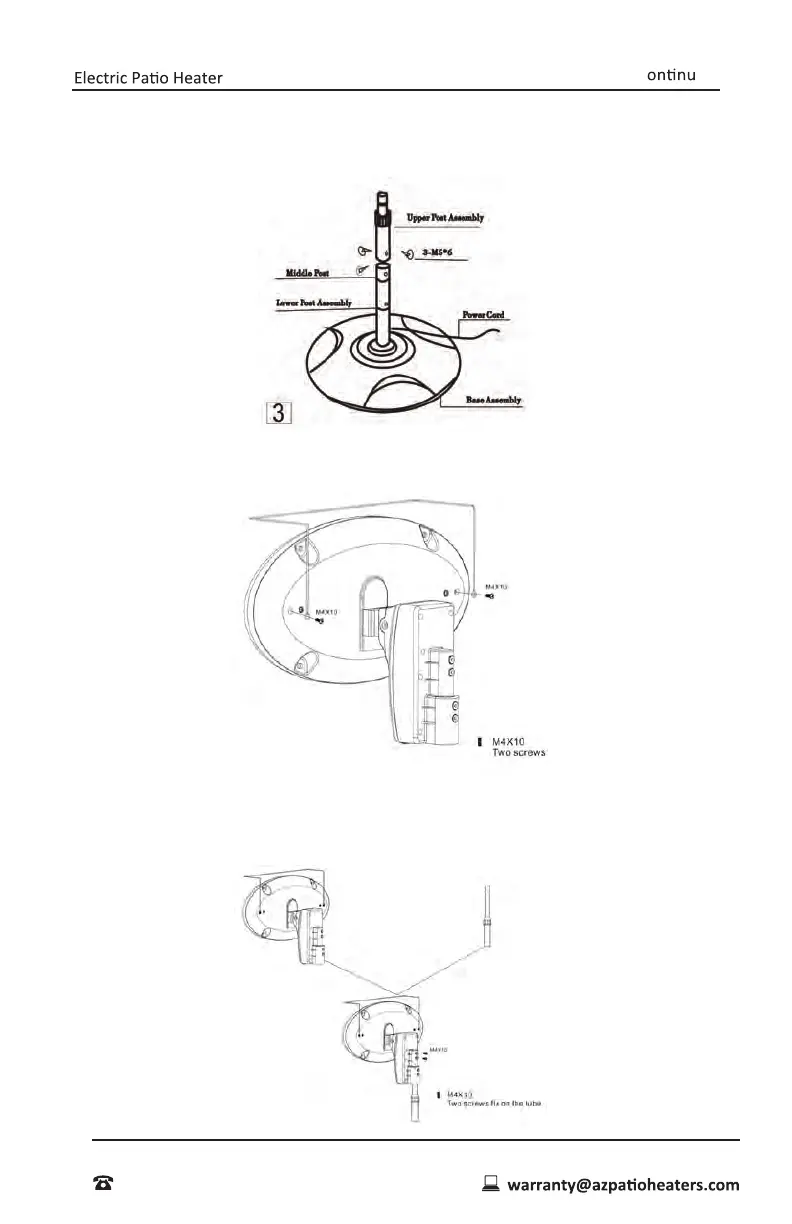

Step 3
Join the upper post assembly (7) and the middle post (9) using 3 M5X6 screws.
(See figure 3)
Step 5
Join the heating element assembly (1) and the upper post assembly (7) together and
tighten the screws. Use the clamp to secure power cord. (See figure 5)
Assembly (c
ed)
AFTER SALES SUPPORT
888-775-1330
5
Step 4
Attach handle to the back of heating element assembly with 2 M4X10 screws.
(See figure 4)
4
5
