Assembly
ASSEMBLY

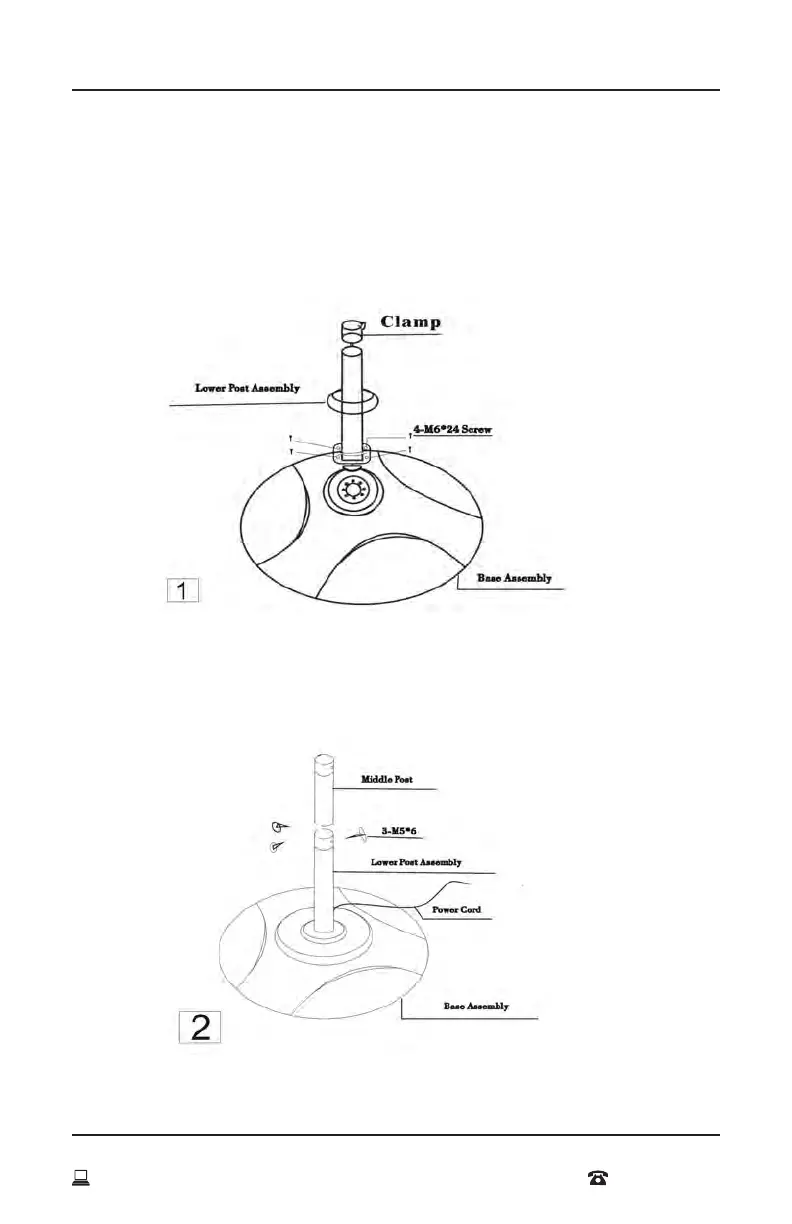

Step 1
Insert the lower post assembly (11) into the base assembly (16)
and aach it ghtly using 4 M6X30 screws. Insert the clamp (12)
into the lower post (11). (See figure 1)
Step 2
Join the lower post assembly (11) and the middle post (9)
using 3 M5X6 screws. (See figure 2)
Electric Pao Heater
AFTER SALES SUPPORT
888-775-1330
4
warranty@azpaoheaters.com
