Aleko LM176 - Armature Plate Mounting Details; Door Mounting Assembly; Armature Plate Adjustment; Electrical Connections

- 2 -

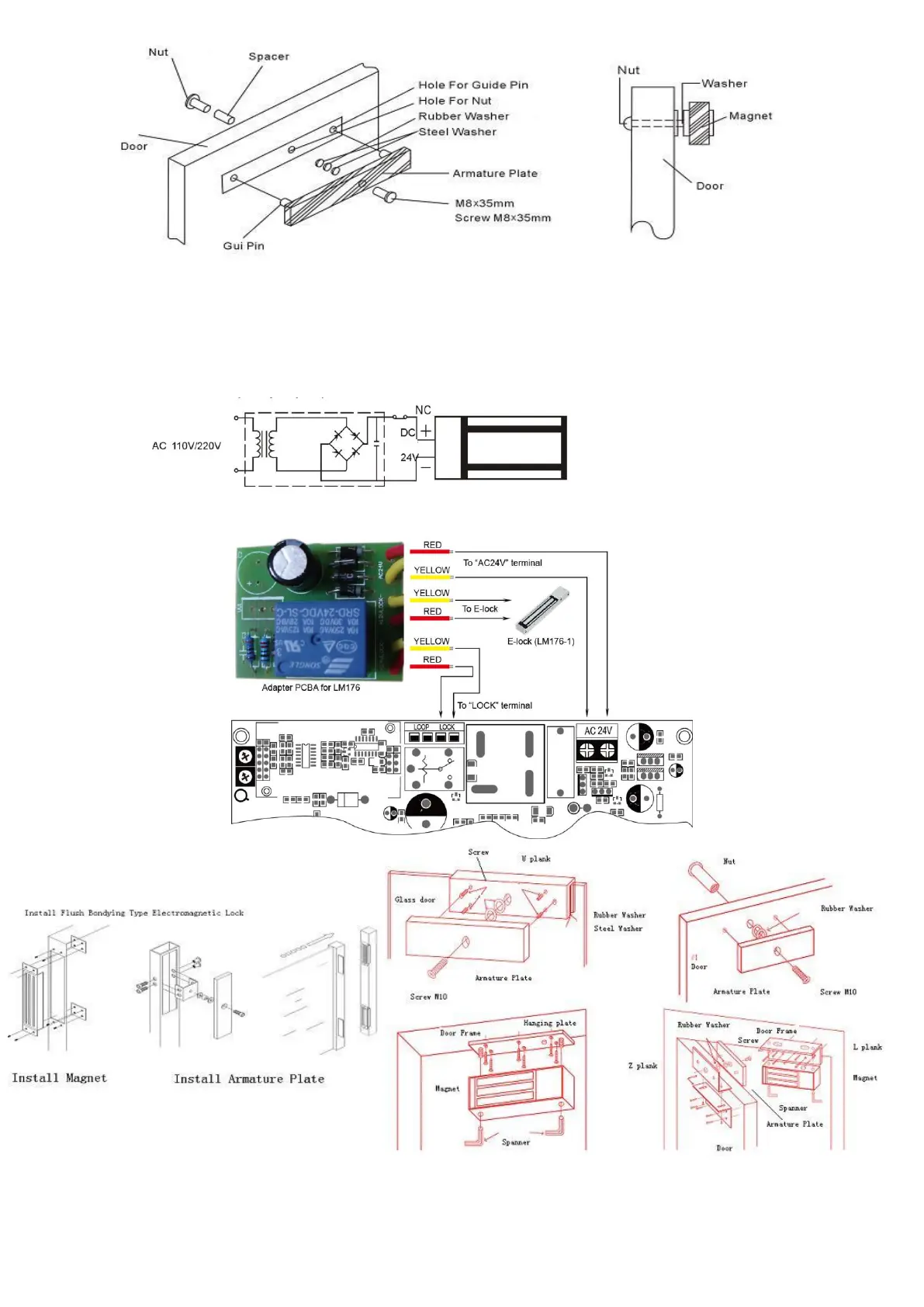

☆ Armature Plate Mounts To The Door：
Important：Fix the armature plate not too tightly, and make the rubber washer more flexible, in order to make the armature plate automatically adjust its
proper position with magnet.
☆Connection for 24VDC Kit：
A． Required power 0.5Amp（Maximum）. B. Connect the ground (-) lead of 24VDC power source to negative terminal of the E-lock .
C． Connect the positive (+) of 24VDC power source to positive terminal of the E-lock .
☆Connection With AS/GG swing gate opener：
☆ Other installtion
