13
WIRING CONNECTIONS
H5/3 Thin BLACK Wire ( Remote Start Enable or Neutral Safety Input)
When the Thin BLACK wire is grounded, the remote start unit is operable.
When this wire is open from ground, the remote starter is disabled.
1. An optional toggle switch can be added on to this wire to temporally
disable the remote starter. This feature is useful if the vehicle is being
serviced or stored in an enclosed area.
2. This wire can also be connected to the neutral safety switch wire in the
vehicle.
IMPORTANT NOTE: Directly connect the Thin BLACK wire to ground
when not being used. The remote starter will not work if this wire
is
not grounded.
H5/4 BLUE / WHITE
Wire
(-) Instant Trigger or Major trigger
Input (Zone 2)
This wire is the (-) negative ground trigger input wire for hood/trunk pin
switches.
H5/5 GREY/BLACK
Wire
(Negative Diesel Wait to Start Input)

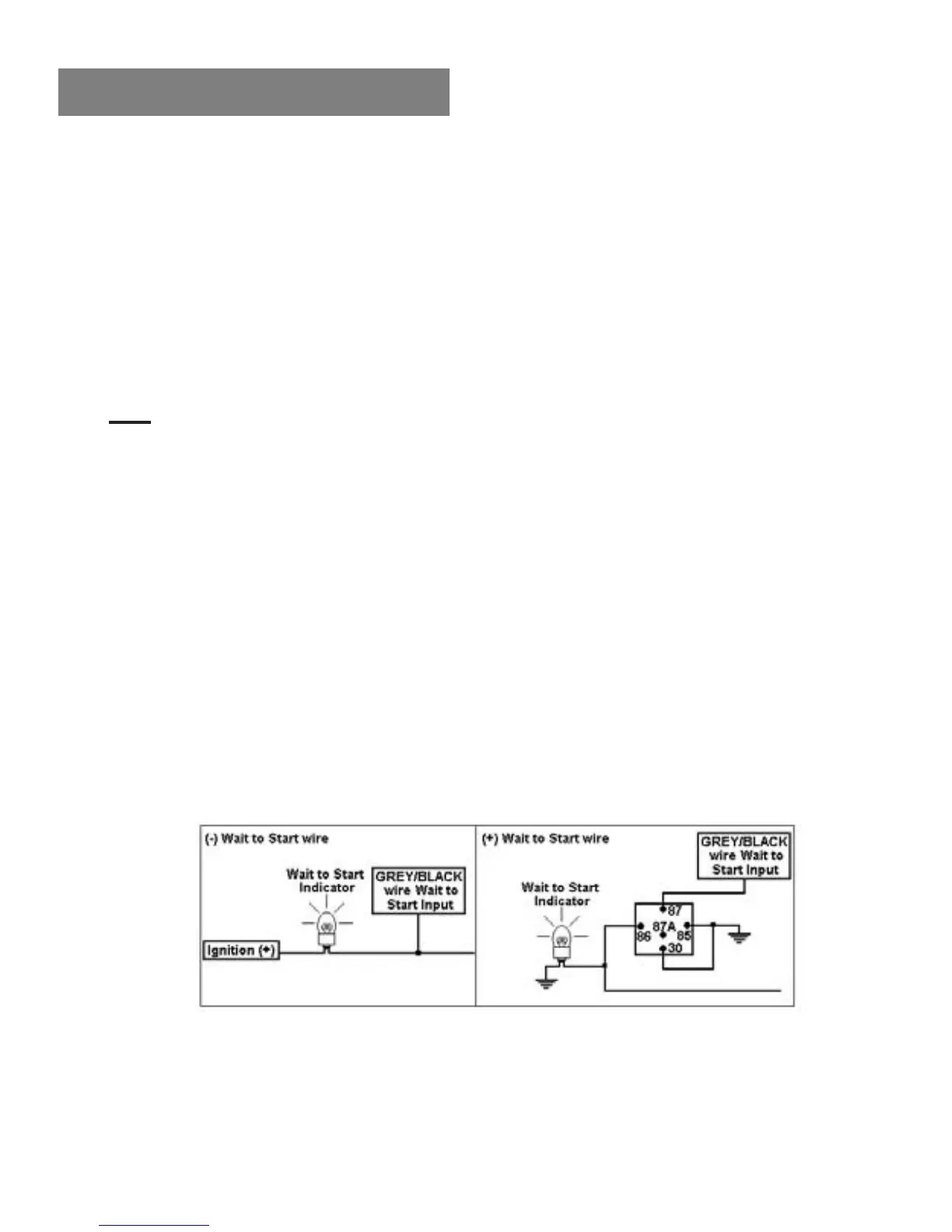

The GREY/BLACK wire is a (-) negative input for diesel vehicles only.
This wire will attach directly to the wait to start bulb on the dashboard,
or on some vehicles the ECM module. You must locate and test the wire
that will provide a ground signal when the wait to start light is on. The
correct wire will provide a ground signal when the bulb is on and +12volt
positive when the bulb is out. There are some vehicles that will have the
opposite configuration and you will need to wire a relay to convert the
polarity. (See diagram example below) You must program the control
module for diesel mode. (See programming Start Feature #1.)
H5/6 GREEN
Wire
(Negative Door Input) (Zone 3)
The GREEN wire is the (-) negative ground trigger input for negative
style door circuits. This green wire will attach to the wire in the vehicle
that provides a ground when any of the doors are opened. The same wire
in the vehicle will provide +12volts positive or 0 voltage when the doors
are closed.
