Negative Oil Sensor Connections: +12volts to +14volts will show
on the multimeter when the ignition switch is turned to the ON position
in the key cylinder and +2volts to + 3volts when the motor is running.
Positive Oil Sensor Connections: +2volts to + 3volts will show on
the multimeter when the ignition switch is turned to the on position in
the key cylinder and +12volts to +14volts when the motor is running.
IMPORTANT NOTE: You must program for oil sensing type before
trying to remote start. (See programming start feature #2.)
WIRING CONNECTIONS

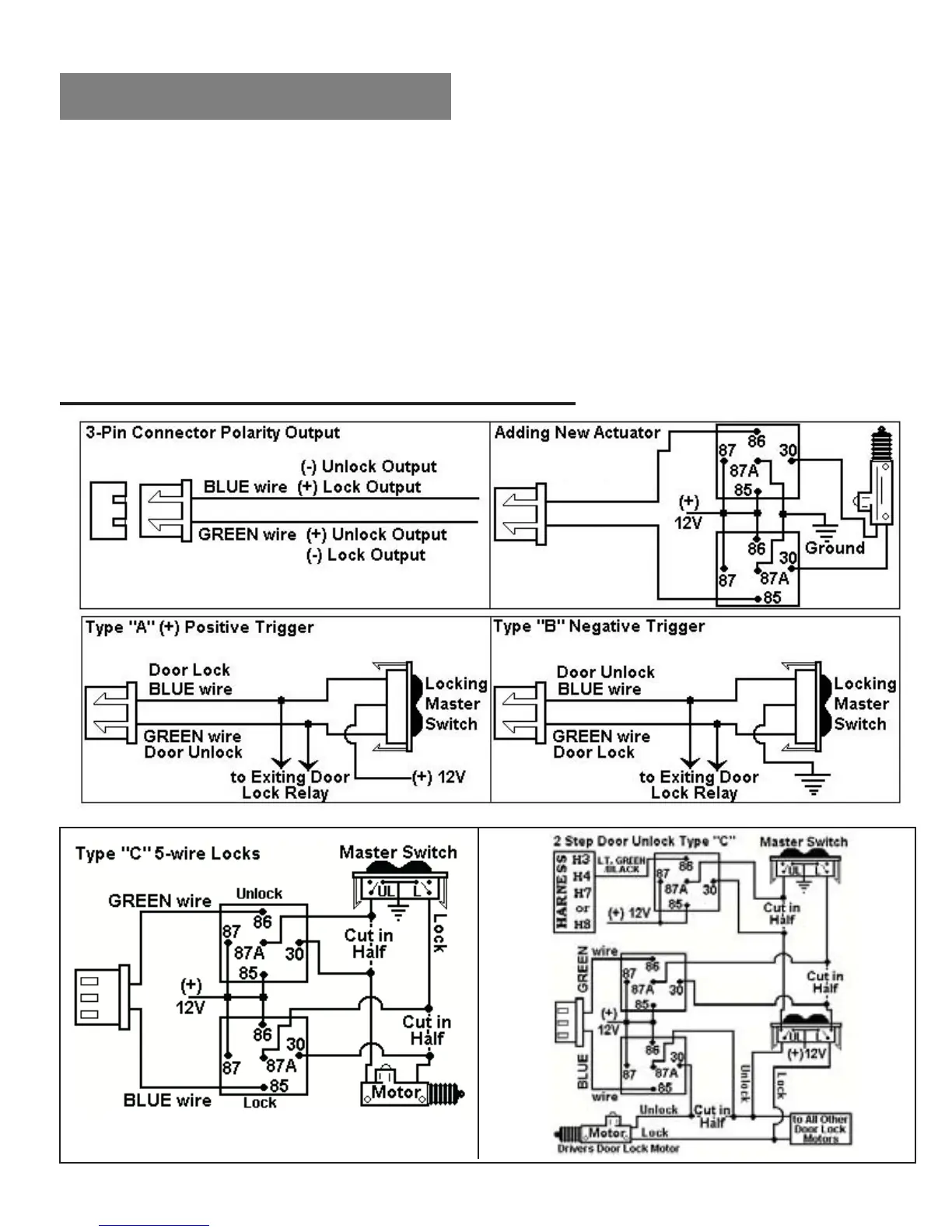

H6: 3-PIN DOOR LOCK CONNECTOR:
BLUE wire
GREEN wire
