42
PROGRAMMING
To connect to the key in sensor as shown in method 1:
A. Locate the control wire that connects the drivers door pin switch to the key in
sensor switch.
B. Cut this wire and connect the ignition cylinder side to a chassis ground.
C. Locate the key in sensor switch wire that connects the chime module to the ignition
cylinder.
D. Cut this wire and connect the ignition cylinder side to terminal 30 of a P&B VF45F11
or equivalent relay.
E. Connect the cathode (striped) side of a 4003 series diode to this same wire, and
connect the (non striped) side to the negative safely input wire (GREY) (H5/1)
of the remote start unit.
F. Connect terminal 86 of the relay to a fused + 12 volt constant battery source.
G. Connect terminal 87 of the relay to the chime module side of the previously cut
wire in step D.
H. Connect terminal 85 of the relay to the drivers door side of the pin switch wire
previously cut in step B.
Note: A second 4003 series diode may be required to maintain the integrity of the
hood open, shut down circuit. If this is the case, it must be installed as shown in the
diagram above. The anode (Non Stripped) side must be connected to the GREY wire
(H5/1) of the remote start unit. The cathode (Striped) side must be connected to
the hood pin switch.

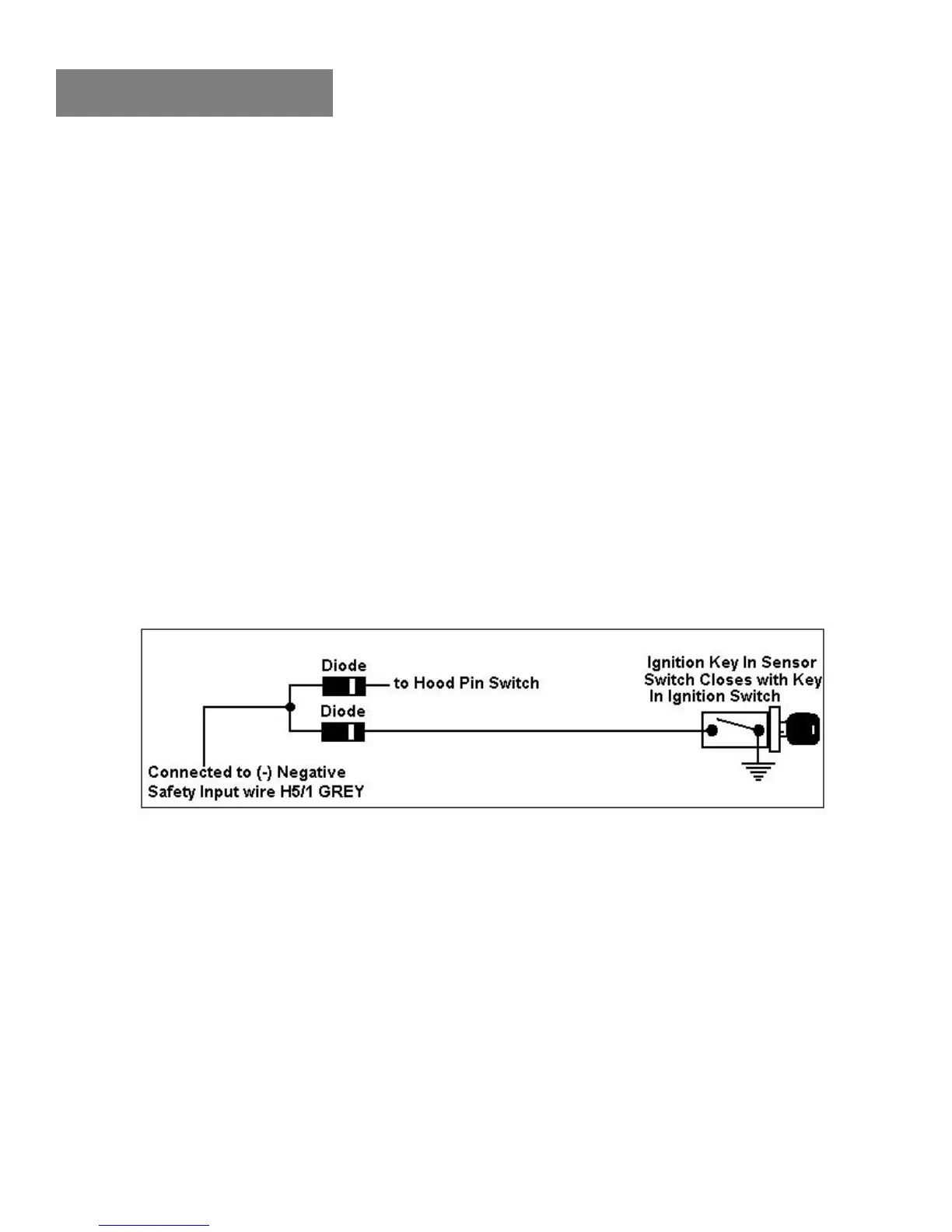

METHOD 2
T
o connect to the key in sensor circuit as shown for method 2:
A. Locate the control wire that connects the drivers door pin switch to the key in sensor switch.
B. Cut this wire and connect the ignition cylinder side to chassis ground.
C. Locate the key in sensor switch wire that connects the chime module to the ignition cylinder.
D. Cut this wire and connect the ignition cylinder side to the Remote Start Negative Safety Shut
down wire GREY (H5/1), using a 4003 series diode as shown above.
Note: A second 4003 series diode may be required to maintain the integrity of the hood open,
shut down circuit. If this is the case, it must be installed as shown in the diagram above. The anode
(Non Striped) side must be connected to the GREY wire (H5/1) of the remote start unit. The cathode
(Striped) side must be connected to the hood pin switch.
AFTER THE CONNECTION OF THE NEUTRAL START SAFETY WIRE AS INDICATED IN ANY
OF THE PREVIOUS ALTERNATE CONFIGURATIONS, THIS CIRCUIT MUST BE TESTED FOR
OPERATION.Retest by following the steps outlined in the NEUTRAL START SAFETY TEST shown
in this manual.
