Alesis HD24 - System Wordclock Modification (Rev. C); Circuit Modification Diagram; Step-by-Step Modification Instructions

System Wordclock Modification for RL Main PCB Rev. C
(September 19, 2001)

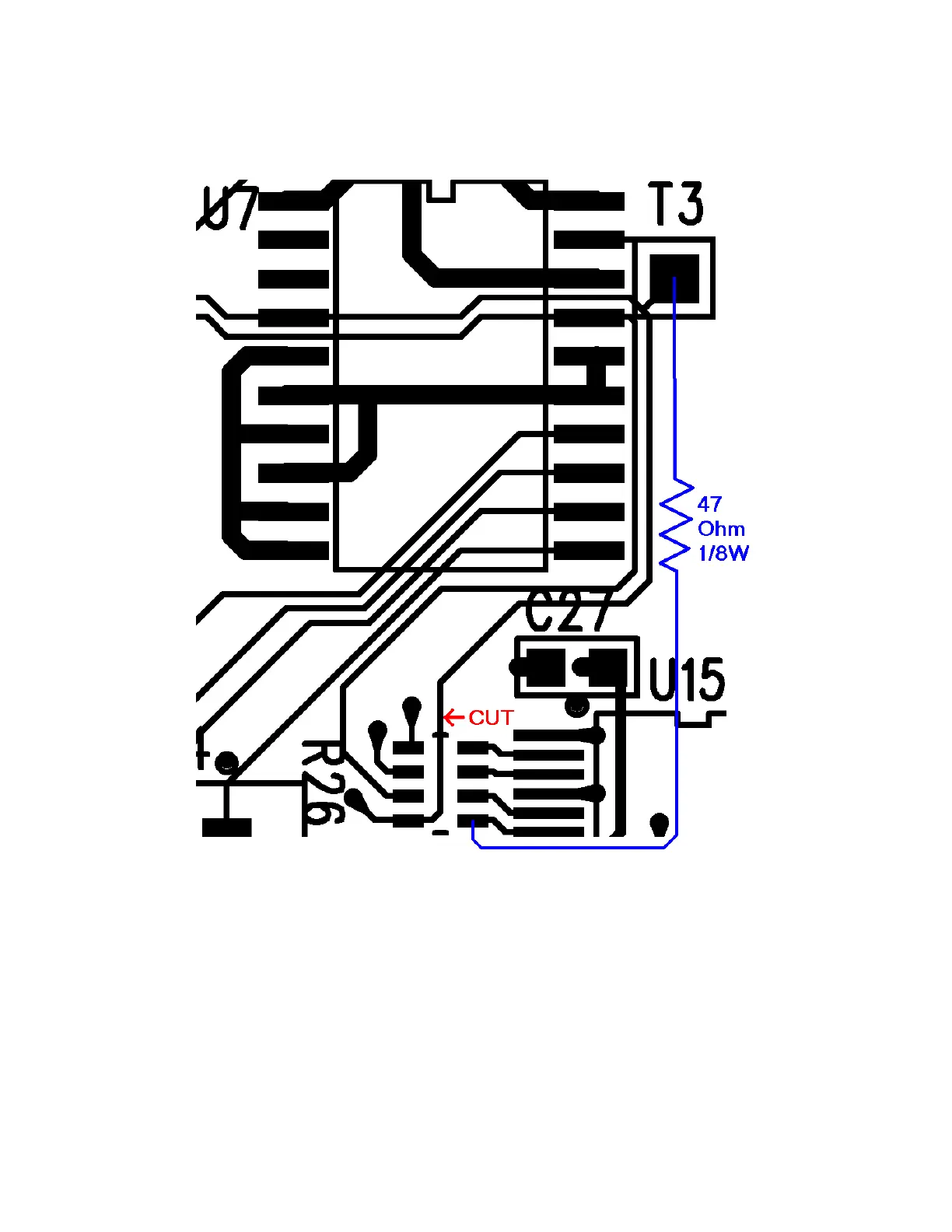

Fig. 1: Circuit Modification Diagram
Steps:
1. Cut Trace from R26 to T3 as close to R26 as possible
(at red arrow).
2. Connect 47 Ohm 1/8 Watt resistor between T3 and the
lower right pad of R26 (blue line w/ resistor symbol).
