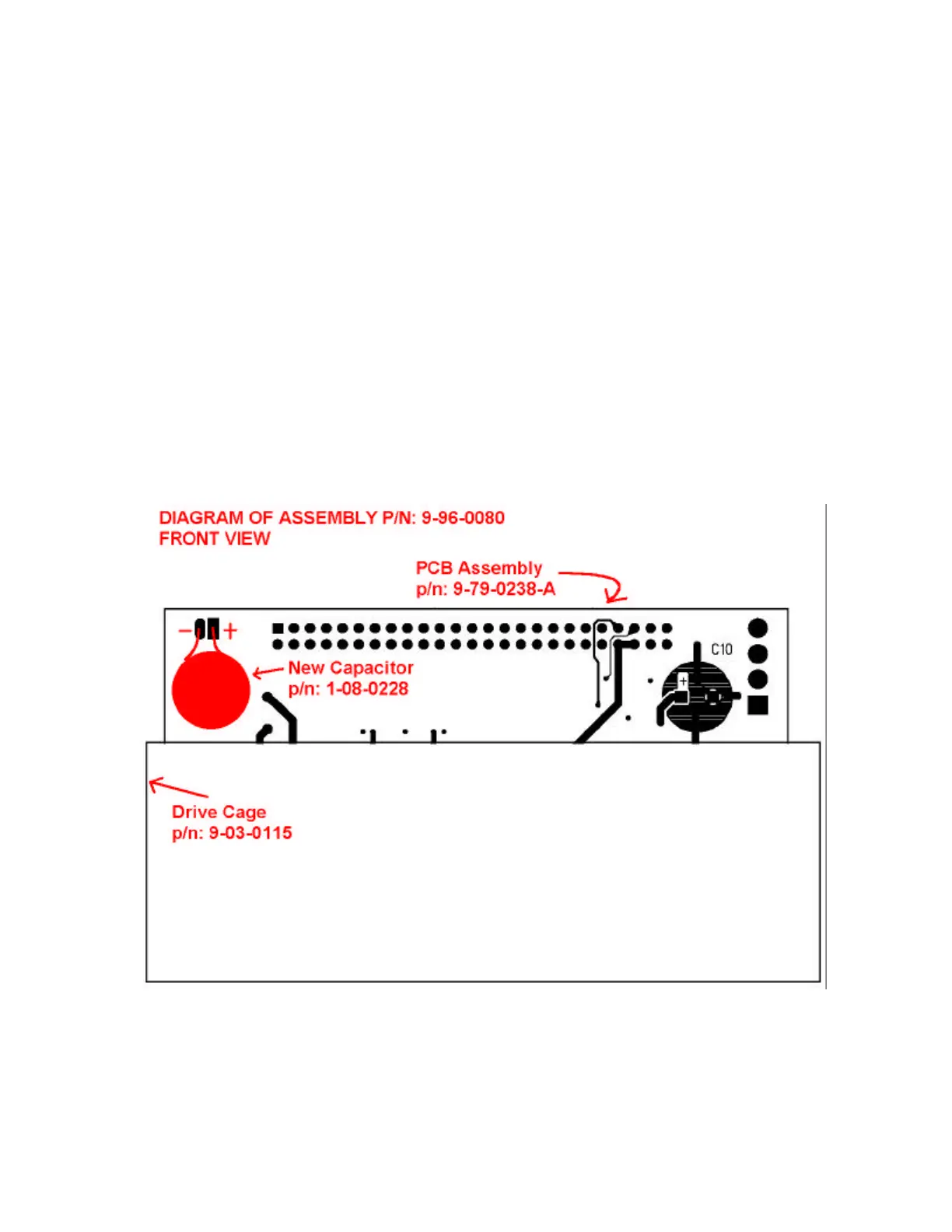

Alesis HD24 - HD Backplane ECN (9-79-0238); PCB Modification Procedure; Assembly Diagram for Modification; Front View of Modification Area

Alesis RL (HD24) HD Backplane ECN
9-79-0238
11/05/2001
Section 1 – PCB Modification
1. Apply the Foam Strip (9-34-0026) to the Capacitor (1-08-0228)
2. Form the leads of the Capacitor (1-08-0228) as shown in the
diagrams below.
3. Solder the Capacitor (1-08-0228) to the HD Backplane PCB (9-79-
0238) as shown.
