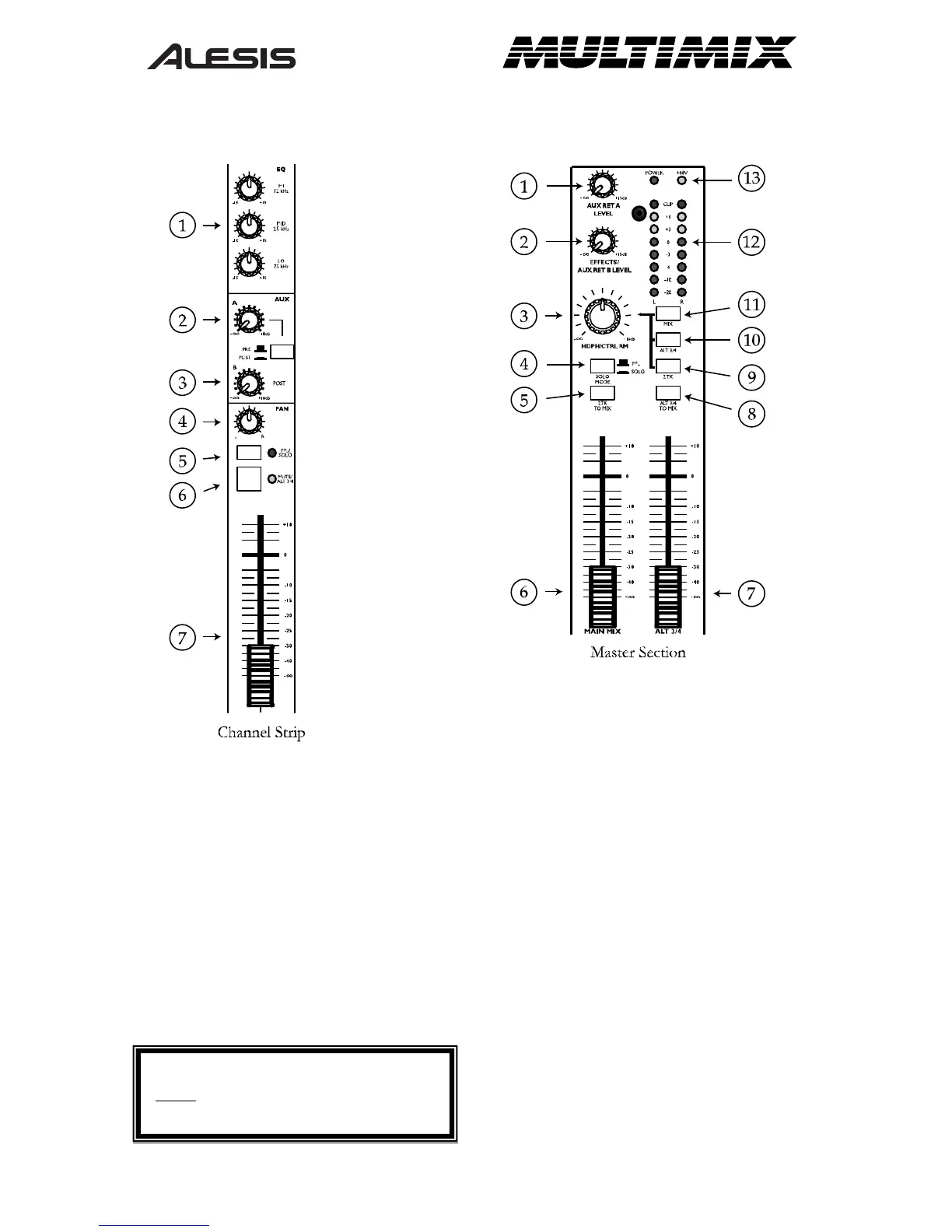

CHANNEL FEATURES
1. EQ: Boosts or cuts the respective frequencies for
each channel.
2. AUX A: Routes channel signal to an external device
like an effects processor. (PRE or POST fader
depending on switch position.
3. AUX B: Controls level routed to internal effects
processor or routes channel signal to an external
device like an effects processor.
4. PAN/BALANCE: Assigns the channel signal to
any spot in the mono or stereo spectrum.
5. PFL/SOLO: Allows the channel signal to be heard
before being affected by the fader.
6. MUTE/ALT 3/4: Mutes the channel signal heard
in the MAIN OUTPUT and routes the signal to the
ALT 3/4 OUTPUT.
7. CHANNEL FADER: Controls the signal level of
the MIC or LINE inputs.
MASTER FEATURES
Note: It is recommended that the MULTIMIX be
turned off before connecting and disconnecting
any sources to the inputs of the unit.
1. AUX RET A: Controls the signal level that returns
from AUX A.
2. EFFECTS/AUX RET B: Controls the signal level
of the internal effects or the level returning from
AUX B if in use.
3. HDPH/CTRL RM: Controls the level that is sent
to the PHONES or CTRL RM outputs.
4. SOLO MODE: Switches the solo’d channel signals
from pre-fader to post-fader listen.
5. 2TK TO MIX: Routes the 2TK input to the MAIN
faders.
6. MAIN MIX: Controls the level of the MAIN
OUTPUTS.
7. ALT 3/4: Controls the level of the ALT 3/4
OUTPUTS.
8. ALT 3/4 TO MIX: Routes the ALT 3/4 signal to
the MAIN MIX output.
9. 2TK SWITCH: Routes the 2TK input signal to the
HDPH /CTRL RM output.
10. ALT 3/4 SWITCH: Routes the ALT 3/4 signal to
the HDPH/CTRL RM output.
11. MIX SWITCH: Routes the MAIN MIX signal to
the HDPH/CTRL RM output.
12. LED METERS: Monitors the audio signal level.
13. +48V LED: Indicates that the PHANTOM
POWER is enabled for the MIC inputs.
S/PDIF CABLE: We recommend that you use a cable
that is specifically designed to carry a digital signal and
does not exceed 5 meters (16.4 ft) in length.
* Use only high quality cables for digital transfers*
