ALEX ORIGINAL 7486-1313 - Mounting Mechanical Components

ELECTRIC SLIDING DOOR
01.17
O
R
I
G
I
N
A
L
PAGE 7
ESD 1108

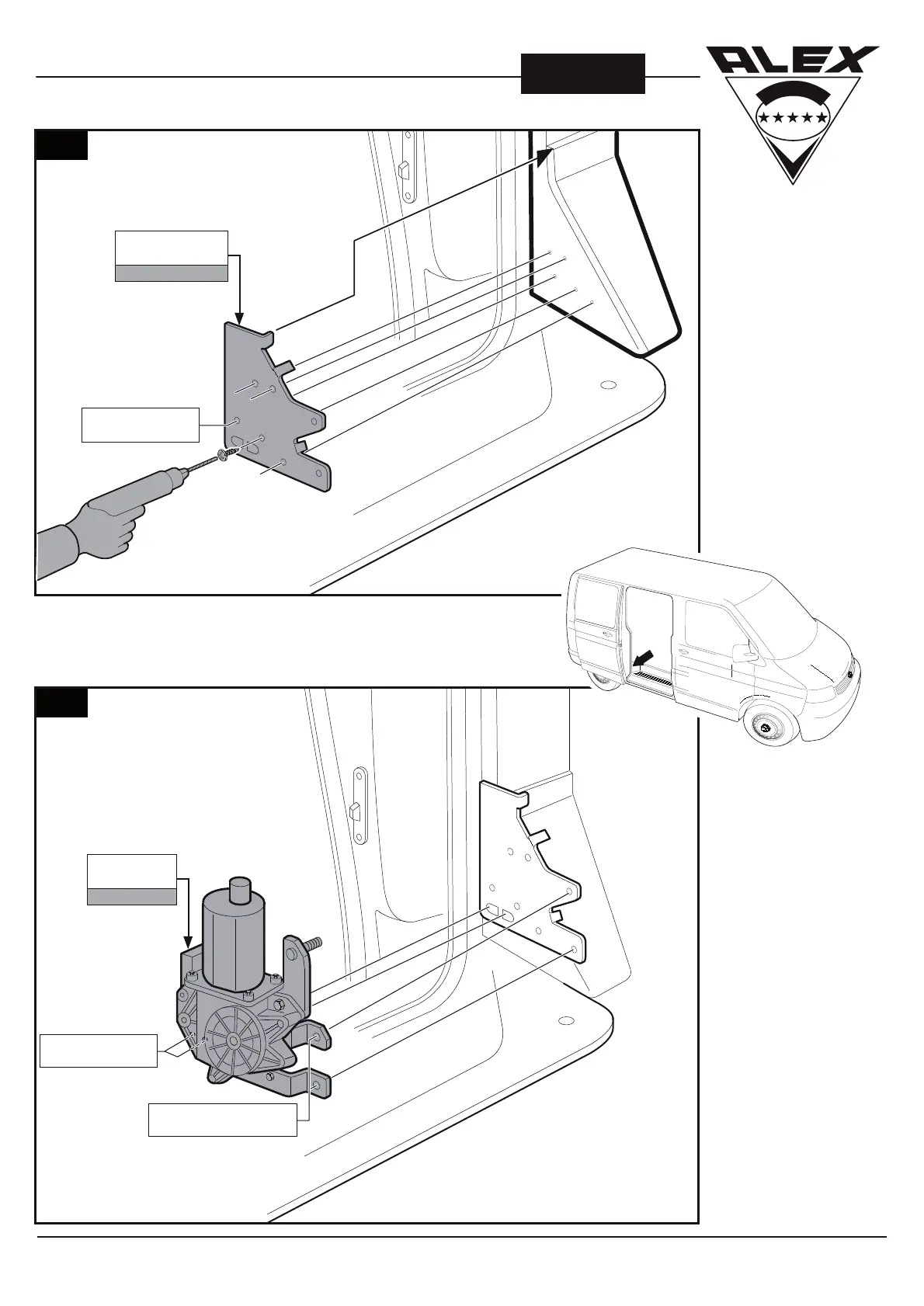

VOLKSWAGEN T-5 from 2005 & T-6 from 2015
17
18
5 SCREWS 5x19
(SELF DRILLING)
5 SCREWS 5x19
(SELF DRILLING)
2 BOLTS M6x15
+SELFLOCKING NUTS
PUSH/PULL.
ASSY. BRACKET
P.N. 2296-030
PUSH/PULL.
ASSY.
P.N. 2296-036
