ALEX ORIGINAL 7486-1313 - Page 9

ELECTRIC SLIDING DOOR
06.20
O
R
I
G
I
N
A
L
PAGE 8
ESD 1109

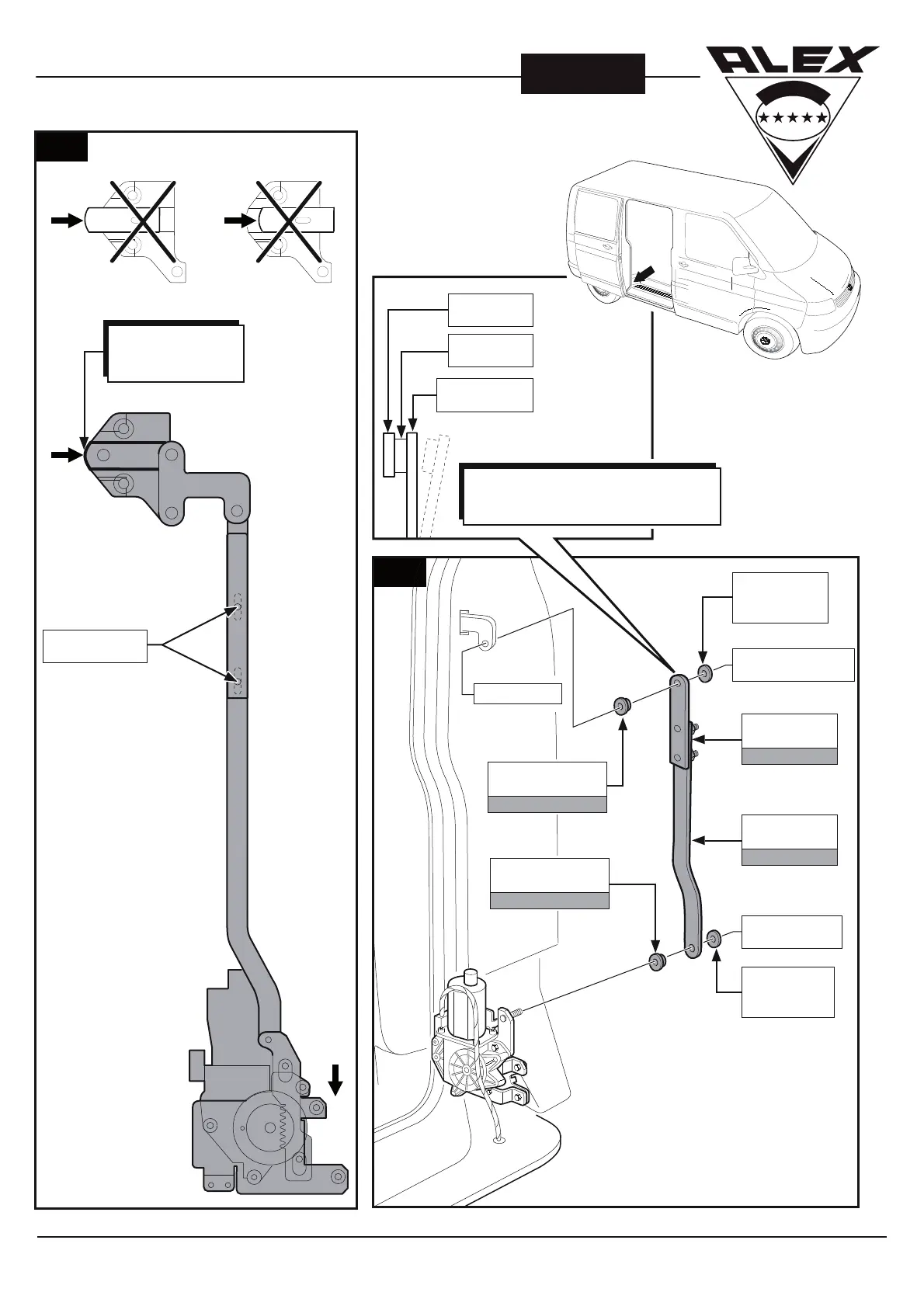

VOLKSWAGEN T-5 from 2005 & T-6 from 2015
19
20
WRONG WRONG
RIGHT
IMPORTANT!
ADJUST TO THE
PROPER POSITION
AND THAN
TIGHTEN NUTS
BOLT M6x20
SPECIAL
+WASHER
Ø19xØ6x2mm
SPECIAL
+WASHER
Ø19xØ6x2mm
M6 SELFLOCKING
NUTS
SELFLOCKING
NUTS
LOCK ASSY.
LEVER
SHOULDER
SPACER
CONNECTING
ARM
MAKE SURE CONNECTING ARM IS
PARALLEL TO LOCK ASSY. LEVER.
IF NECESSARY BEND ACCORDINGLY
SHOULDER
SPACER (2 PCS.)
P.N. 2471-288
CONNECTING
ARM
P.N. 2032-458
CONNECTOR
ARM
P.N. 2032-477
SPACER (2 PCS.)
P.N. 2471-138
SHOULDER
