Alf ISIV-01 - Installation and Specifications; Parts Identification Chart; Technical Specifications

6-7

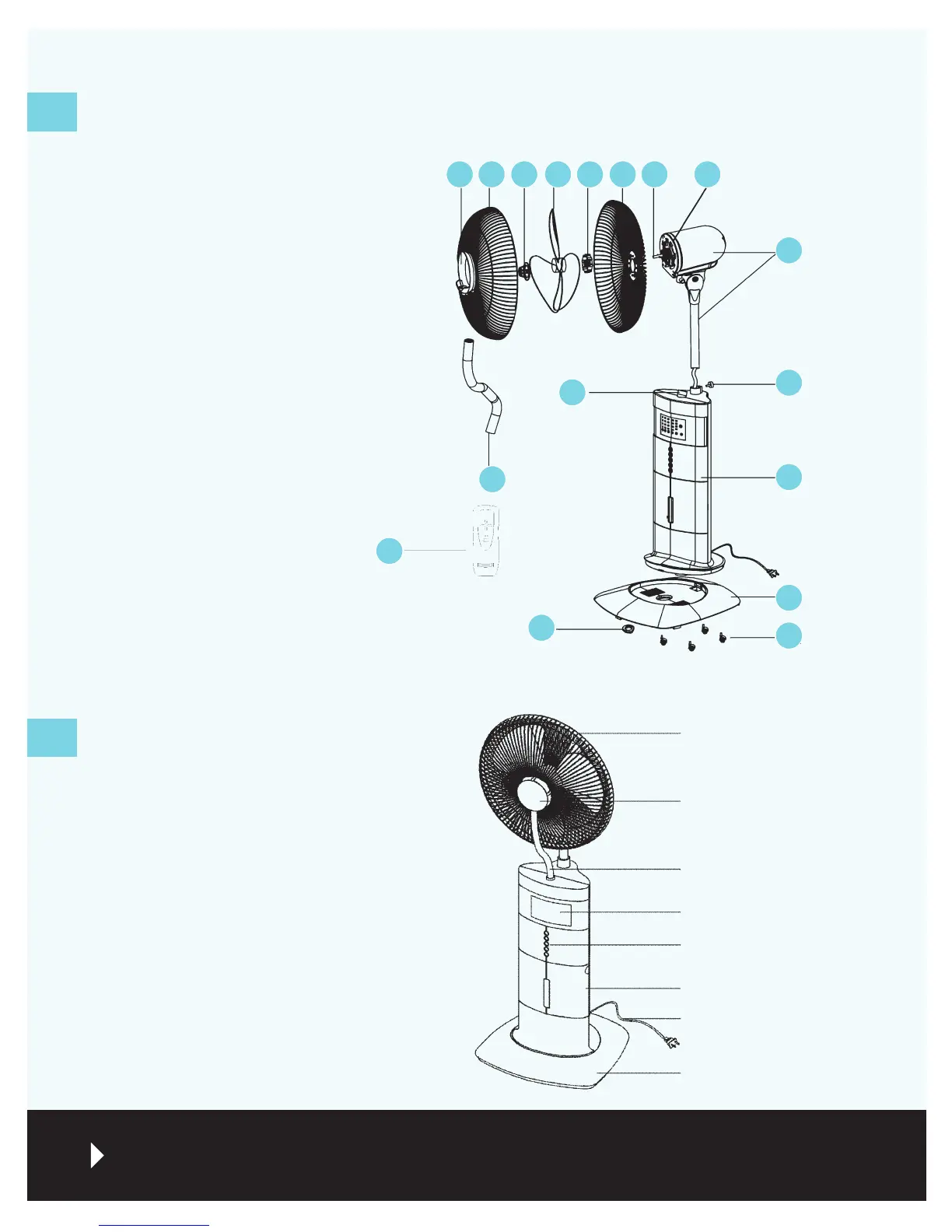

Installing Chart and Technical Specifications
1. Front mist plate
2. Front guard
3. Blade cap
4. Blade
5. Guard mounting nut
6. Rear guard
7. Motor
8. Adjust knob
9. Fan body
10. Base
11. Castors
12. Base nut
13. Plastic tube entry hole
14. Mist plastic tube
15. Remote control
16. Motor shaft
17. Pin
• Rated Voltage : 220-240V
• Rated Frequency : 50Hz
• Fan Power : 65W
• Humidity Power : 35W
• General Power : 100W
• Max Mist Capacity : 200ml/h
• Size : 400mm
• Water Tank Capacity : 1500ml
Technical Specifications
1 2 3 4 5 6
7
8
9
10
11
12
13
14
15
16 17
Guard
Mist Plate
Plastic Tube
PVC
Switch
Water Tank Panel
Power Cord
Base
