OPERATION INSTRUCTIONS

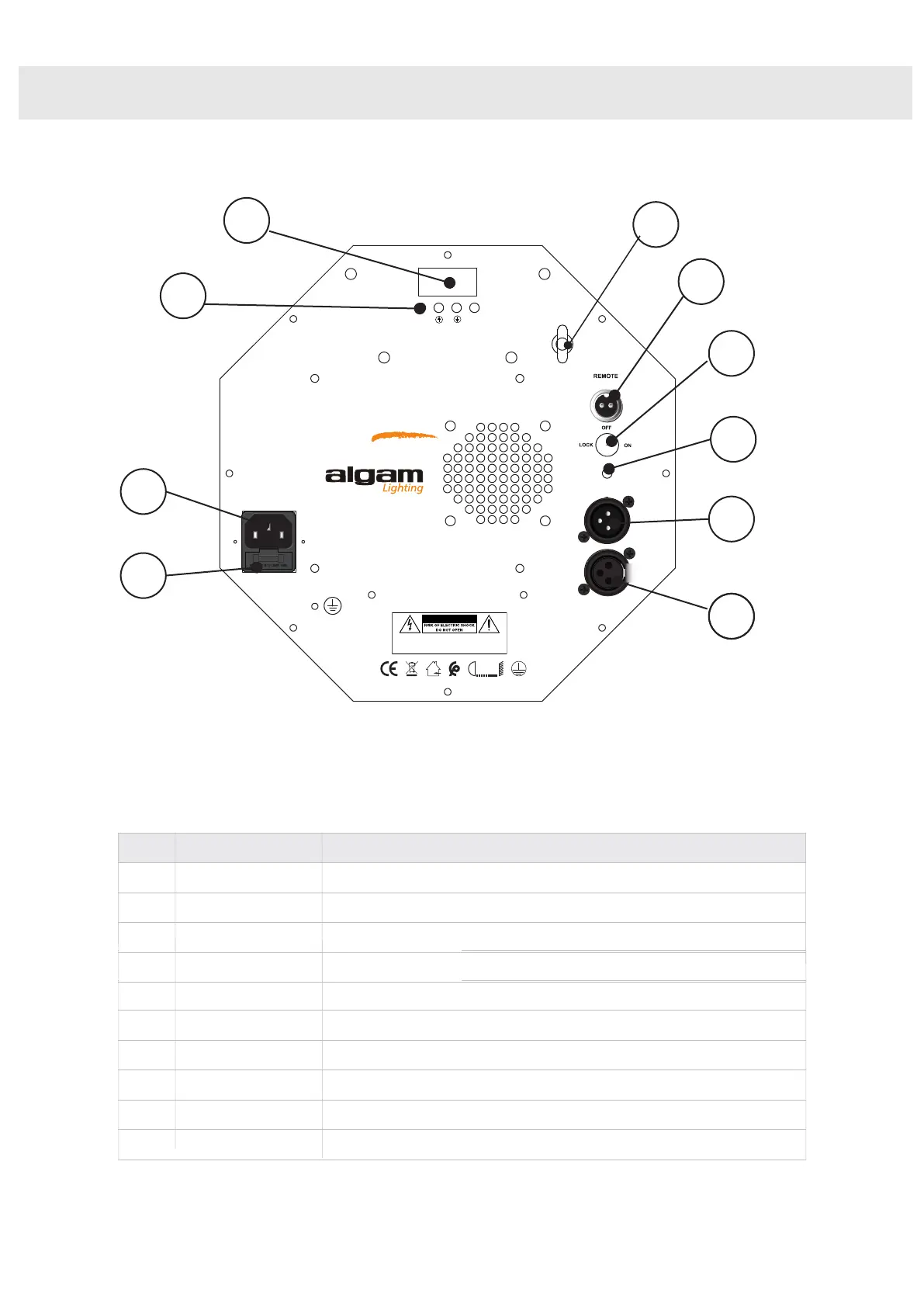

Name
Key
LASER Status LED
Fuse Holder
Power input
Key switch
Safe switch
DMX output
DMX input
Insurance rings
LED display
NO
1
2
FUNCTION
To select and navigate into menu/functions
Solid Light when LASER beam is ON
Replace Fuse only with same model and specs.
Power input socket, built-in protective tube and spare tube
Make sure the professional person use
Switch off the laser manually if error occurs
3PIN female XLR interface, for DMX communication
3PIN male XLR interface, for DMX communication
Connecting wire rope to prevent illegal operation and fall
For setting mode/ function
1
2
4
5
6
8
7
9
10
ATTACH SAFETY
CABLE HERE
SUNFLOWER
EFFET LED ROTATIF AVEC LASER 3B
WHEEL LED EFFECT WITH 3B LASER
VOLTAGE : 230V AC/50-60HZ
POWER RATING : 120W
