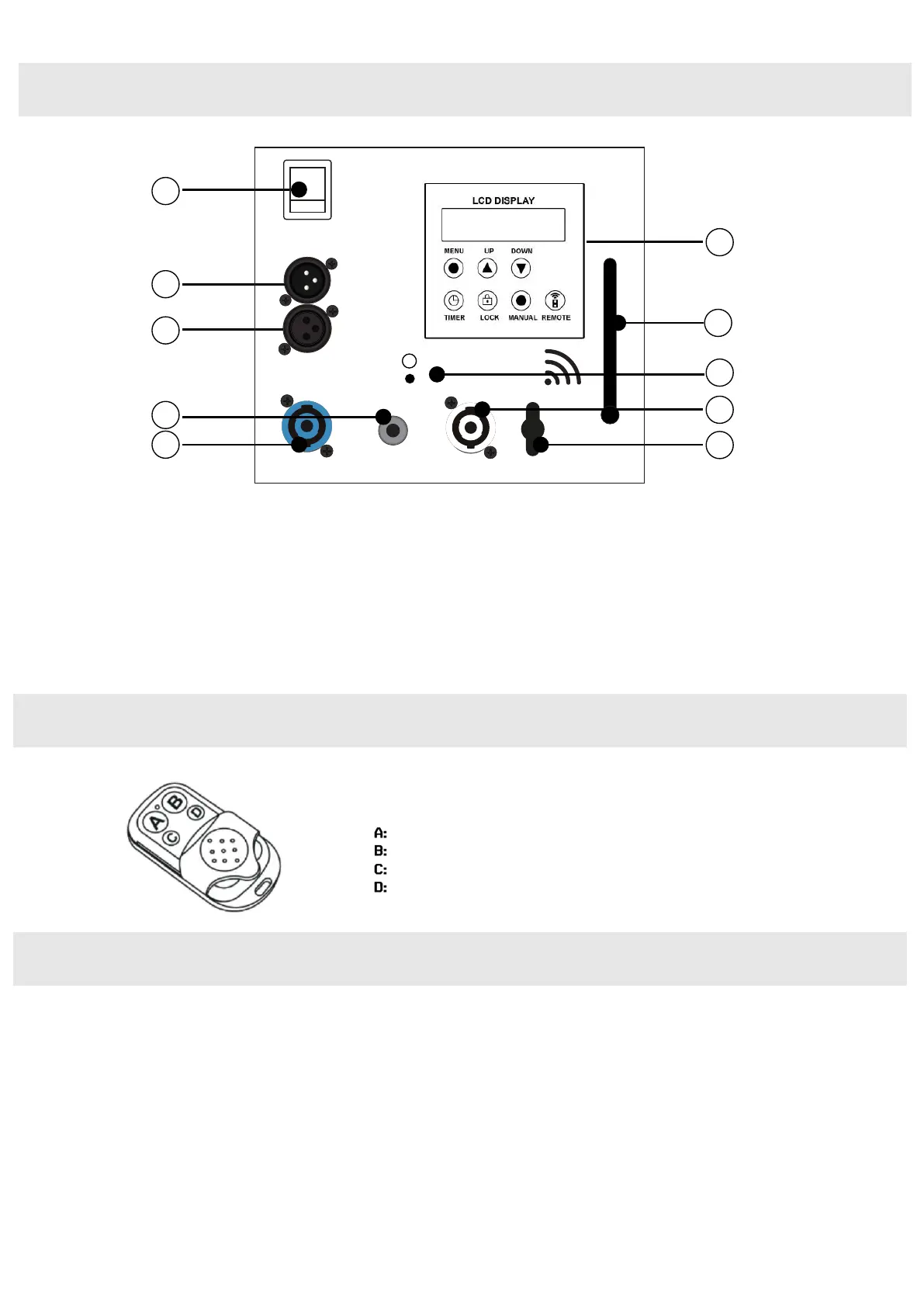

Algam Lighting VULKAN PRO - Connectors and Controls

5- Fuse
6- POWER IN connector
7- LCD display with control panel
8- Wireless DMX receiver
9- POWER OUT connector
( you can connect here one more VULKAN PRO only)
10- Security hook for safety cable
1- Mains power supply switch
2- XLR 3 pins DMX IN connector
3- XLR 3 pins DMX OUT connector
4- Wireless system antenna
REMOTE
Connect the fog machine only in an earthed mains outlet or extension cord.
ATTENTION: the power cord can only be replaced by an original replacement one.
Unplug the mains lead before filling the fluid tank.
How to use
Unpack the fog machine
Do not connect yet the power cable.
Fill the fluid tank .
Connect the unit to mains outlet. Turn ON the mains switch. The heating element is automatically switch ON.
It will take about 4 minutes until the working temperature is reached.
Display will show « warming up».
Once the LCD displays «Ready», you are ready to go.
You can now use the unit in DMX mode, is manual mode, with wireless remote controller or with wireless
DMX signal transmission.
ON / OFF
Output volume up
Output volume down
ON / OFF
CONNECTORS AND CONTROLS
OPERATION INSTRUCTIONS
