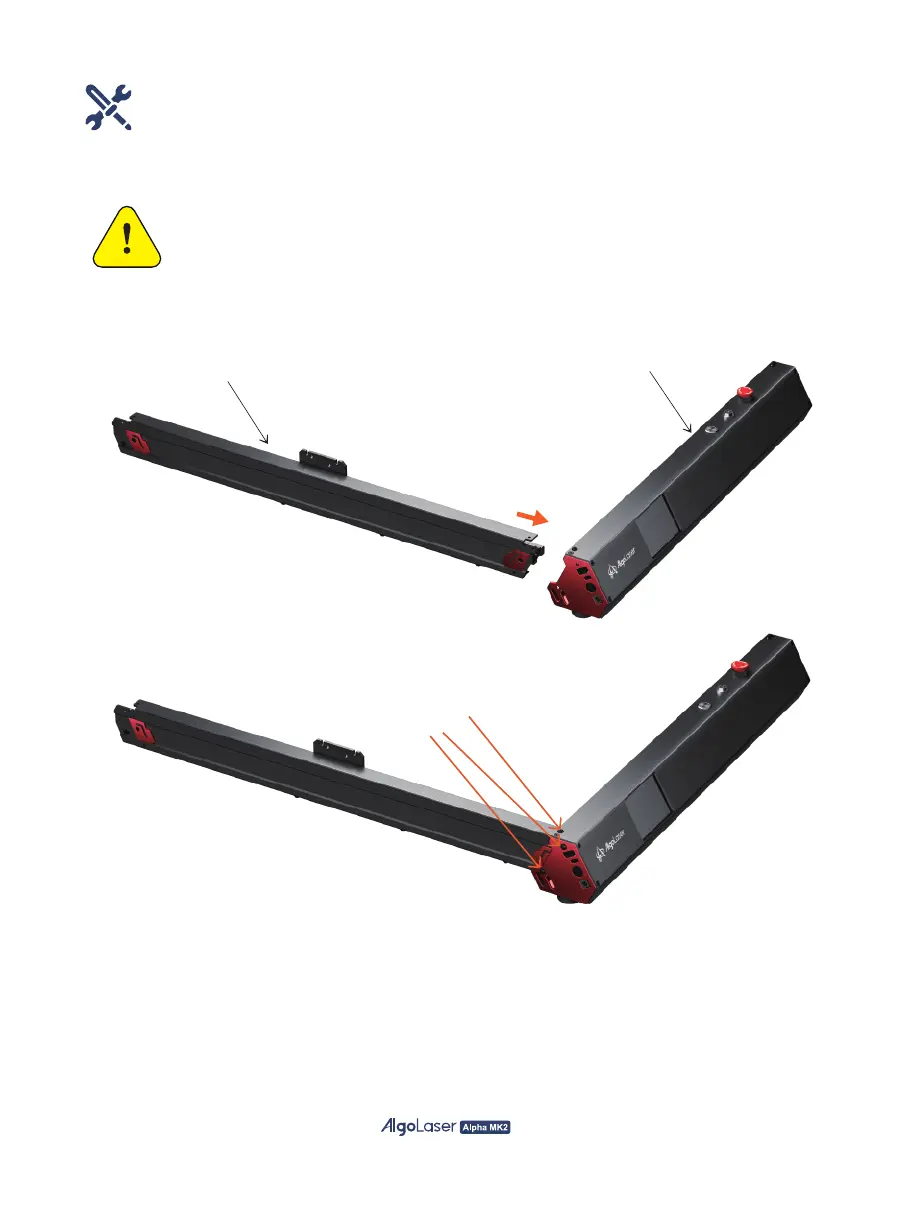

Step 1: Mount B(Left Y-Axis Assembly) on A(Front Assembly) from the side and secure it with 3 screws

in total from the top and the side.

Screw type: M4X12 Screw

Precautions:

Be careful not to hit the motherboard of the front panel assembly.

Left Y-Axis Assembly

Front Assembly

M4X12 Screw

Assemble the Left Y-Axis Assembly

01/ 10
