Right Y-Axis Assembly

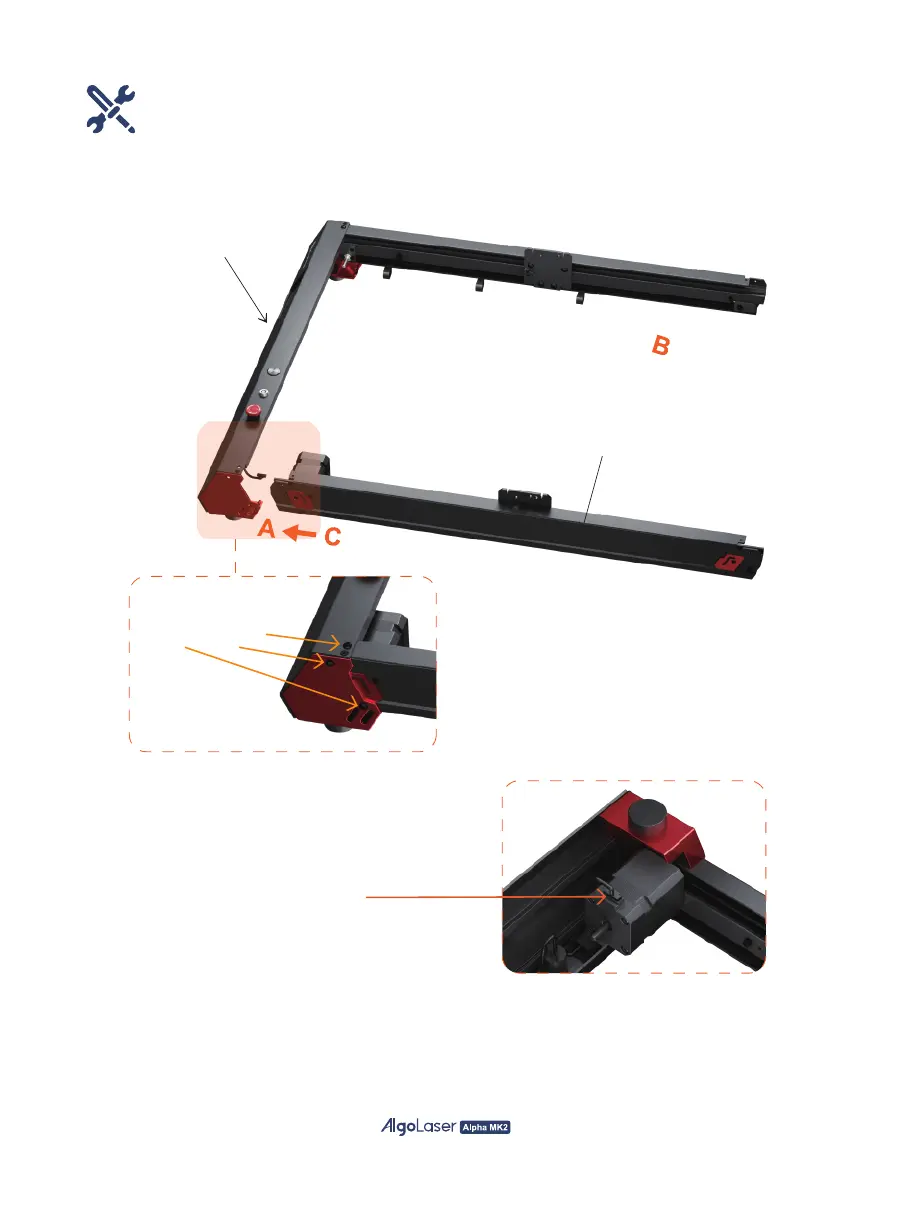

Step 2: Mount C(Right Y-Axis Assembly) on A(Front Assembly) from the side and secure it with 3 screws
in total from the top and the side.
Screw type: M4X12 Screw
Front Assembly
M4X12 Screw
Assemble the Right Y-Axis Assembly
Plug the motherboard cable into
the motor socket at the bottom of the right Y-axis.
