03/ 10

Rear Panel Assembly

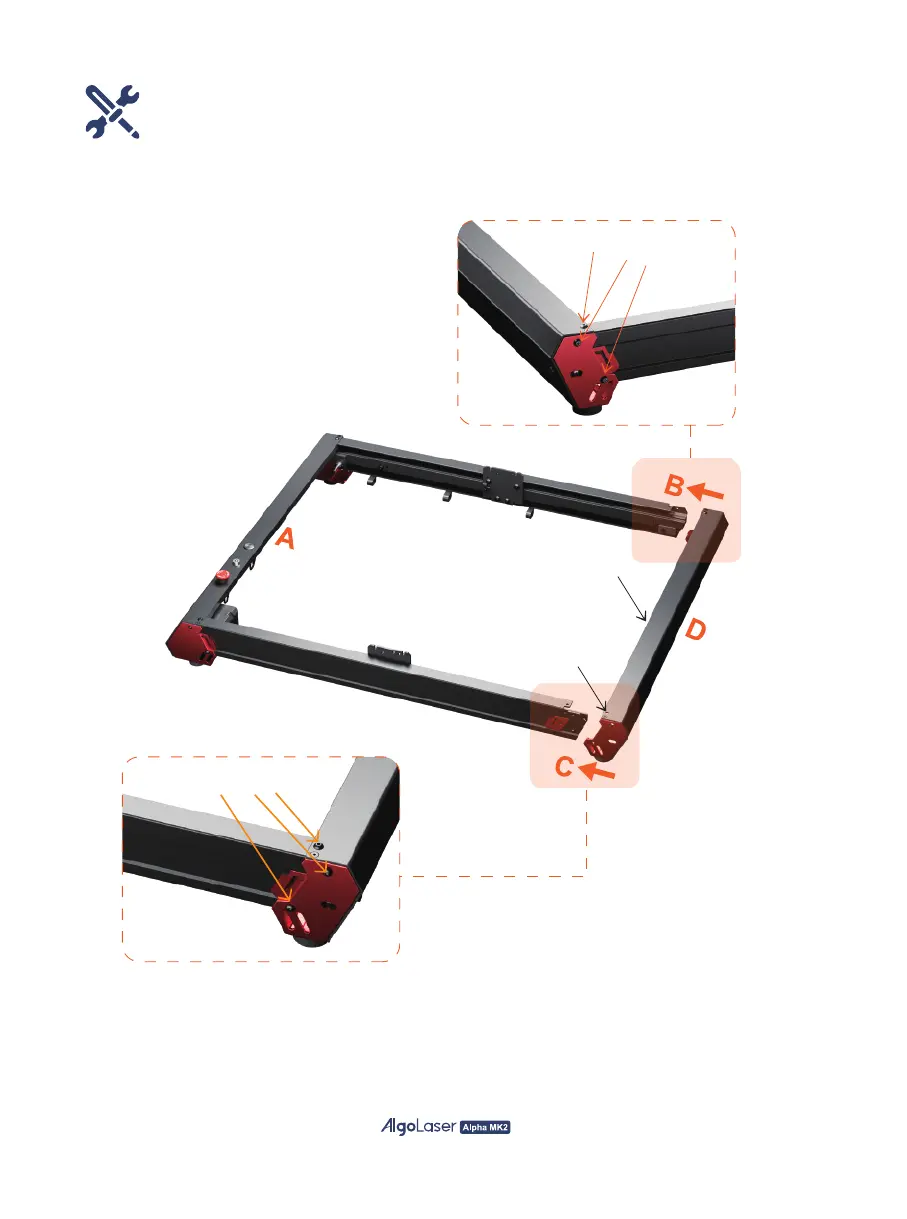

Step 3: Mount D(Rear Panel Assembly) to B(Left Y-Axis Assembly) and C(Right Y-axis Assembly) from

the rear and secure them with 6 screws in total from the top and the side.

Screw type: M4X12 Screw

M4X12 Screw

Assemble the Rear Panel Assembly
