Place the X -axis component+laser component into the corresponding position of the left and right Y axis
①
②
③
④
⑤
04/ 10

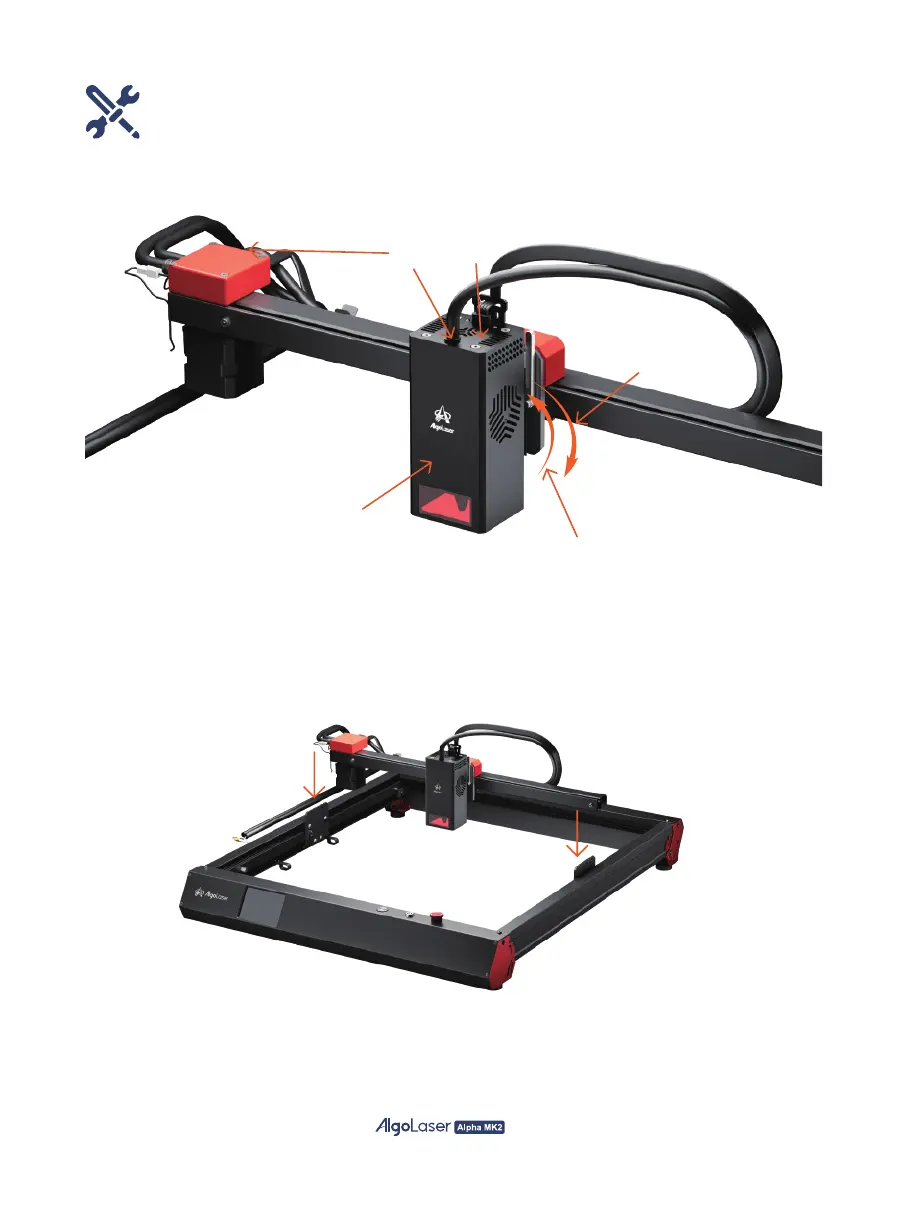

Assemble the X-Axis Assembly
① Pull down the lever on the X-axis assembly clamp.
② Place the dovetail groove on the back of the laser module into the corresponding chute of the clamp.
③ Lift up the lever to clamp the laser module.
④ Insert the plug of the laser cable into the corresponding position of the laser module.
⑤ Connect one end of the air pipe to laser module and another end to the control box.
