AlgoLaser Alpha - Page 10

7
Right Y-Axis Assembly

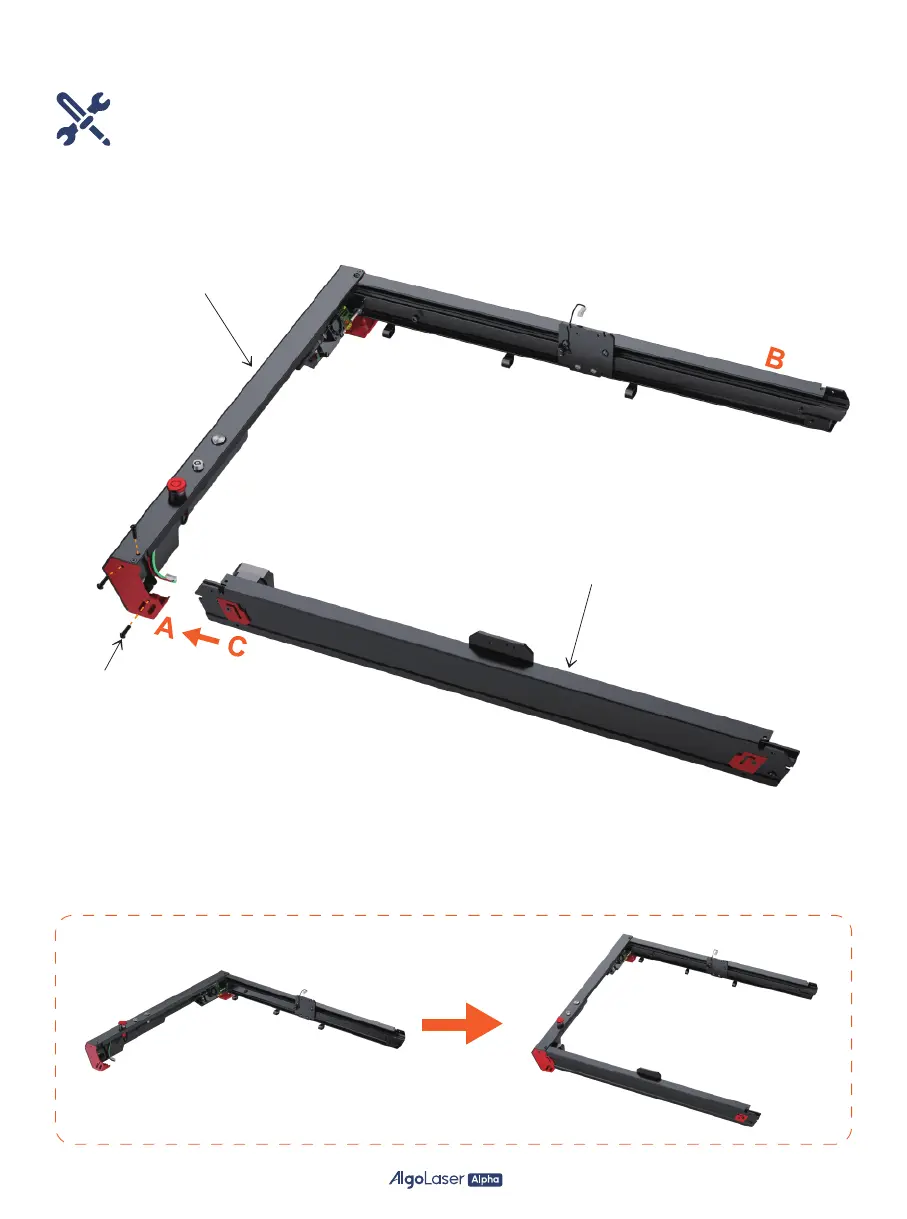

Step 2: Mount C(Right Y-Axis Assembly) on A(Front Assembly) from the side and secure it with 3 screws in total
from the top and the side.
Screw type: M4X12 Screw
Front Assembly
M4X12 Screw
Step 2: Finished
Machine Assembly
Assemble the Right Y-Axis Assembly
02/ 21
