Machine Assembly
Precautions:
Be careful not to hit the motherboard of the front panel assembly.
Left Y-Axis Assembly

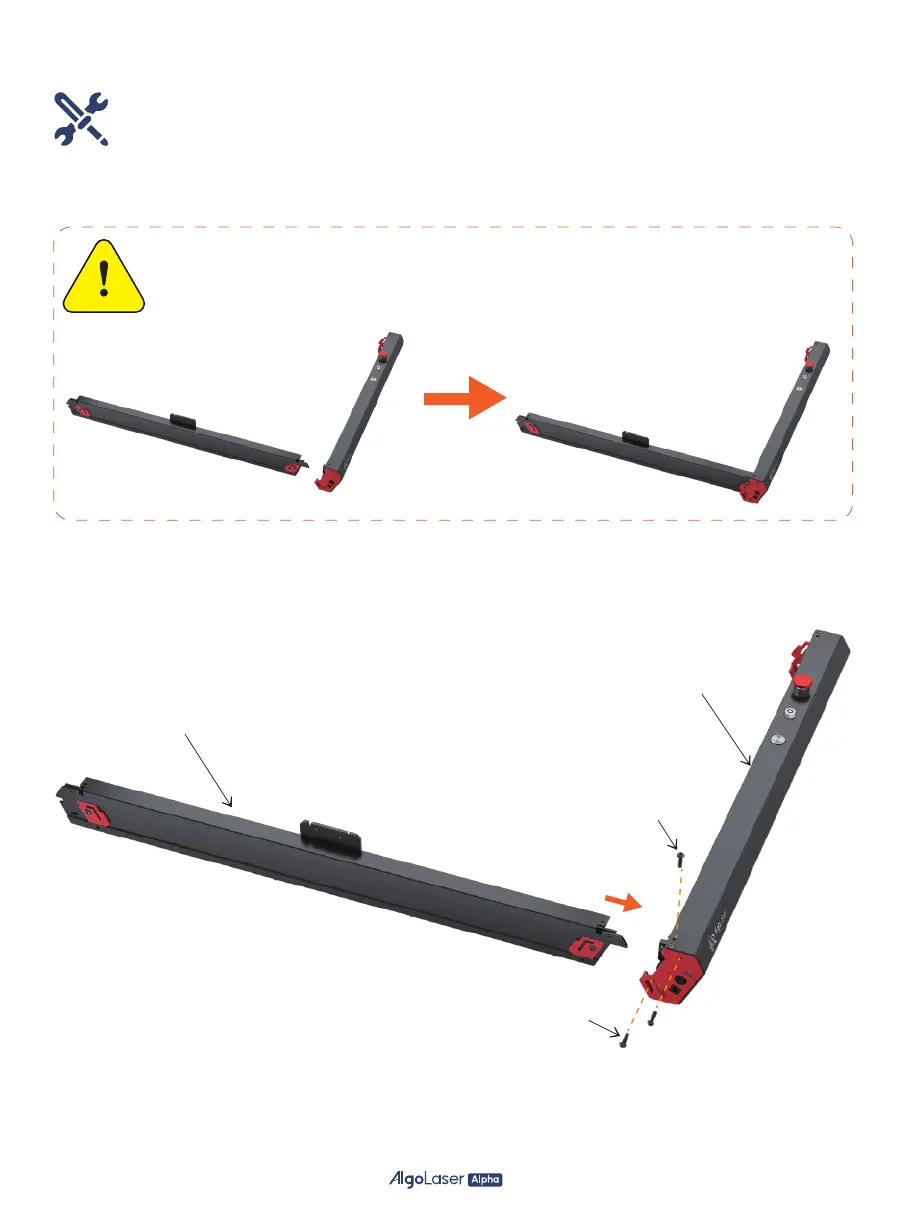

Step 1: Mount B(Left Y-Axis Assembly) on A(Front Assembly) from the side and secure it with 3 screws in total
from the top and the side.
Screw type: M4X12 Screw
Front Assembly
M4X12 Screw
M4X12 Screw
Assemble the Left Y-Axis Assembly
Step 1: Finished
