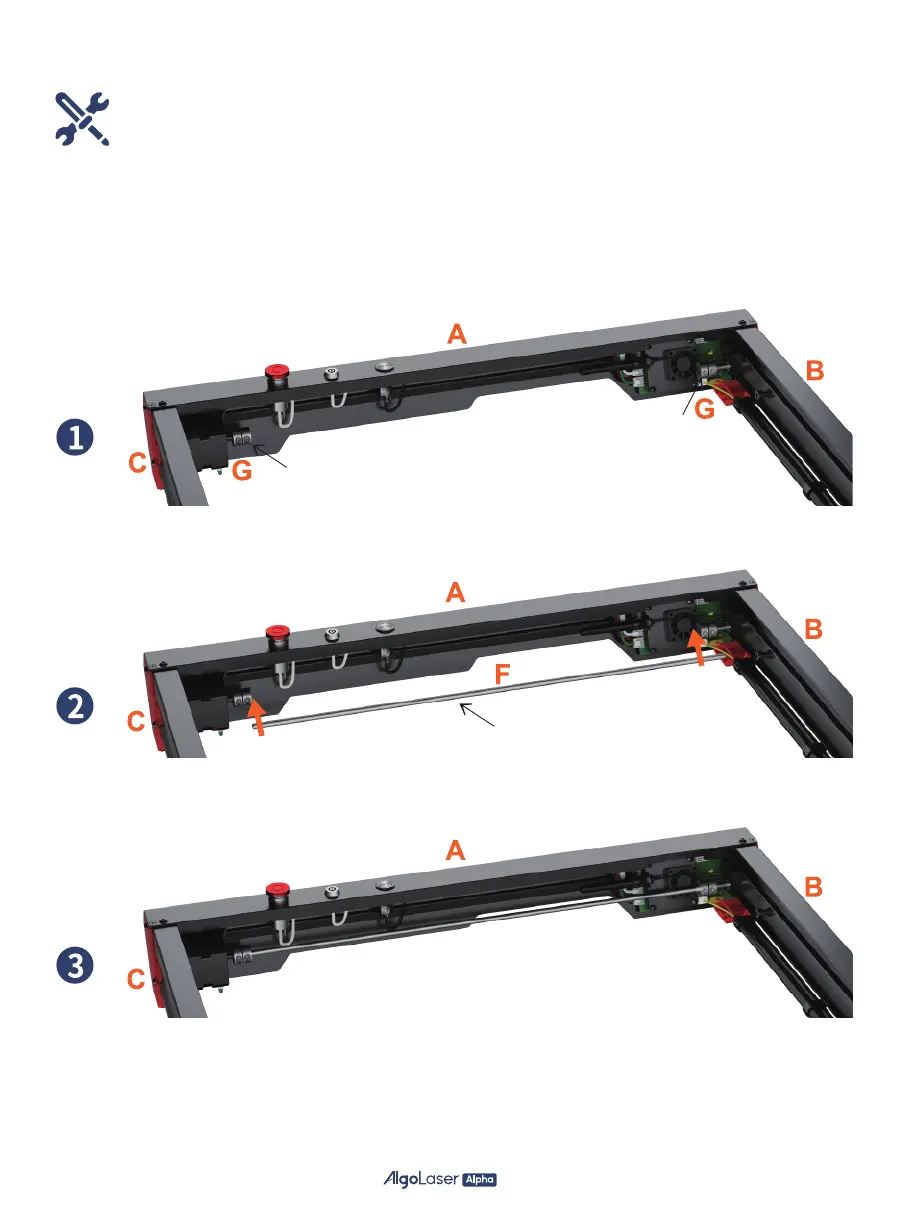

Step 12: Let the short stick go through G(Coupling), do not tighten the screws,
Then fit F(Motor Extension Shaft ) into the Extension Shat of A(Front Assembly).
finally tighten the screws on G(Coupling).
17
Coupling
Coupling
Motor Extension Shaft
Step 12: Finished
Machine Assembly
Assemble the Motor Extension Shaft
