AlgoLaser Alpha - Page 21

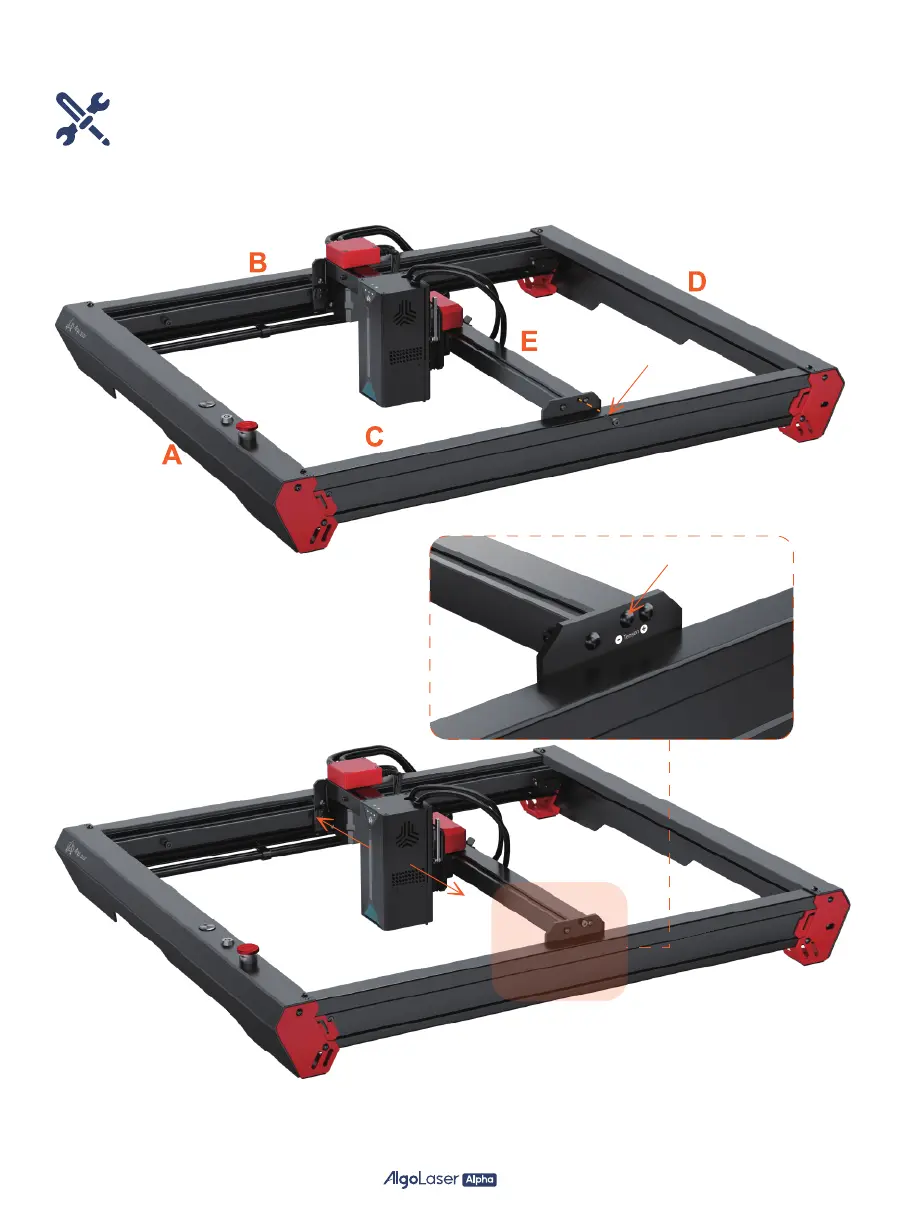

Step 13: Install a screw on E (X-Axis Assembly), tighten the screw until the belt is properly tightened (this means
the laser module can move smoothly).
Screw type: M4X12 Screw
18
M4X12 Screw
M4X12 Screw
Step 13: Finished
Machine Assembly
Tighten the Belt
13/ 21
