ALI GSWM001 - Step 4: Monitor Mounting; Mount Monitor to Arm; Step 5: Tension Adjustment; Adjust Gas Spring and Tilt Tension

8 pages

To Next Page

To Previous Page

Step 5

Step 4

For Heavier Monitors

For Lighter Monitors

· Insert the 5mm Allen Key into the adjusting hole and turn clockwise (-) to reduce gas spring tension, suitable for lighter screens.

· Insert the 5mm Allen Key into the adjusting hole and turn counter-clockwise (+) to increase gas spring tension, suitable for heavier screens.

· Please take note it may take numerous turns for gas spring tension adjustment.

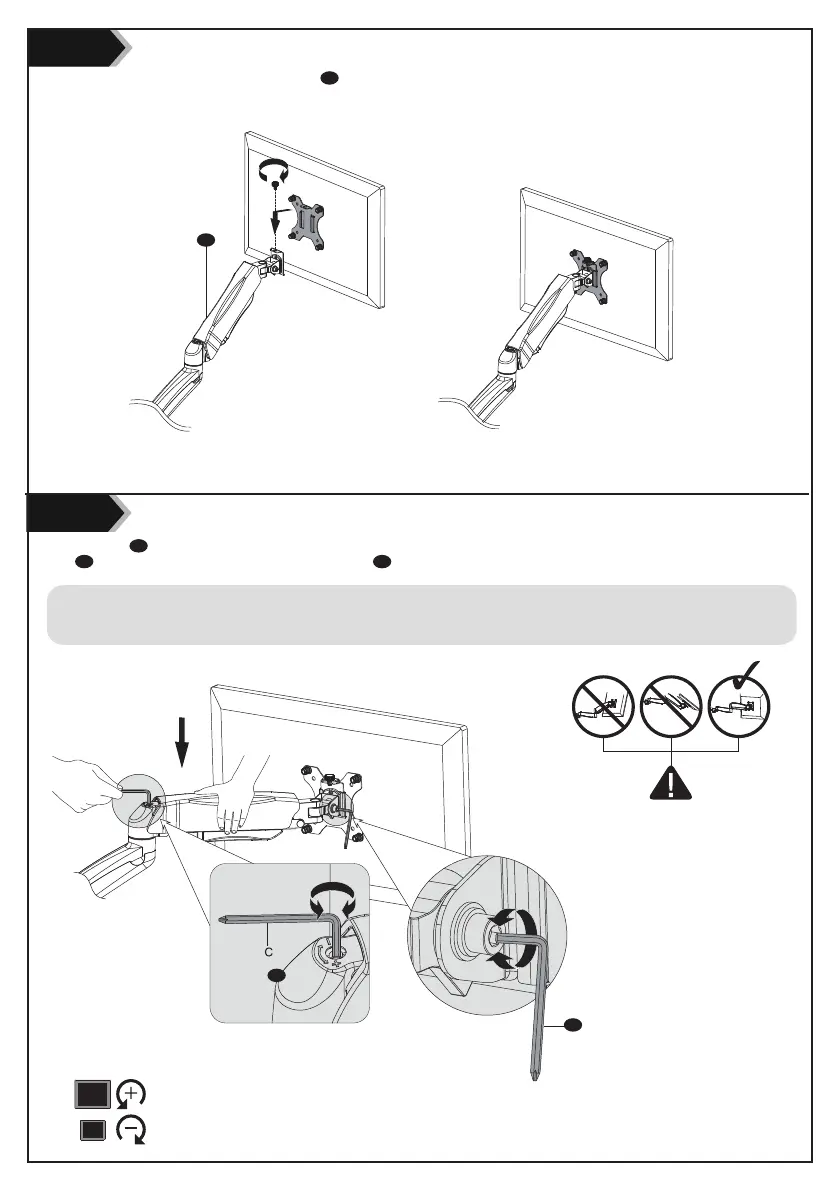

Put the assembled TV/Monitor onto the Arm A and ensure the stability, tighten the VESA plate using Top Screw.

Press the Arm A on horizontal level as image shown, adjust gas spring tension to your personal preference using Allen Key

5mm C . Adjust the tilt tension using Allen Key 5mm C .
