Owner'sManual

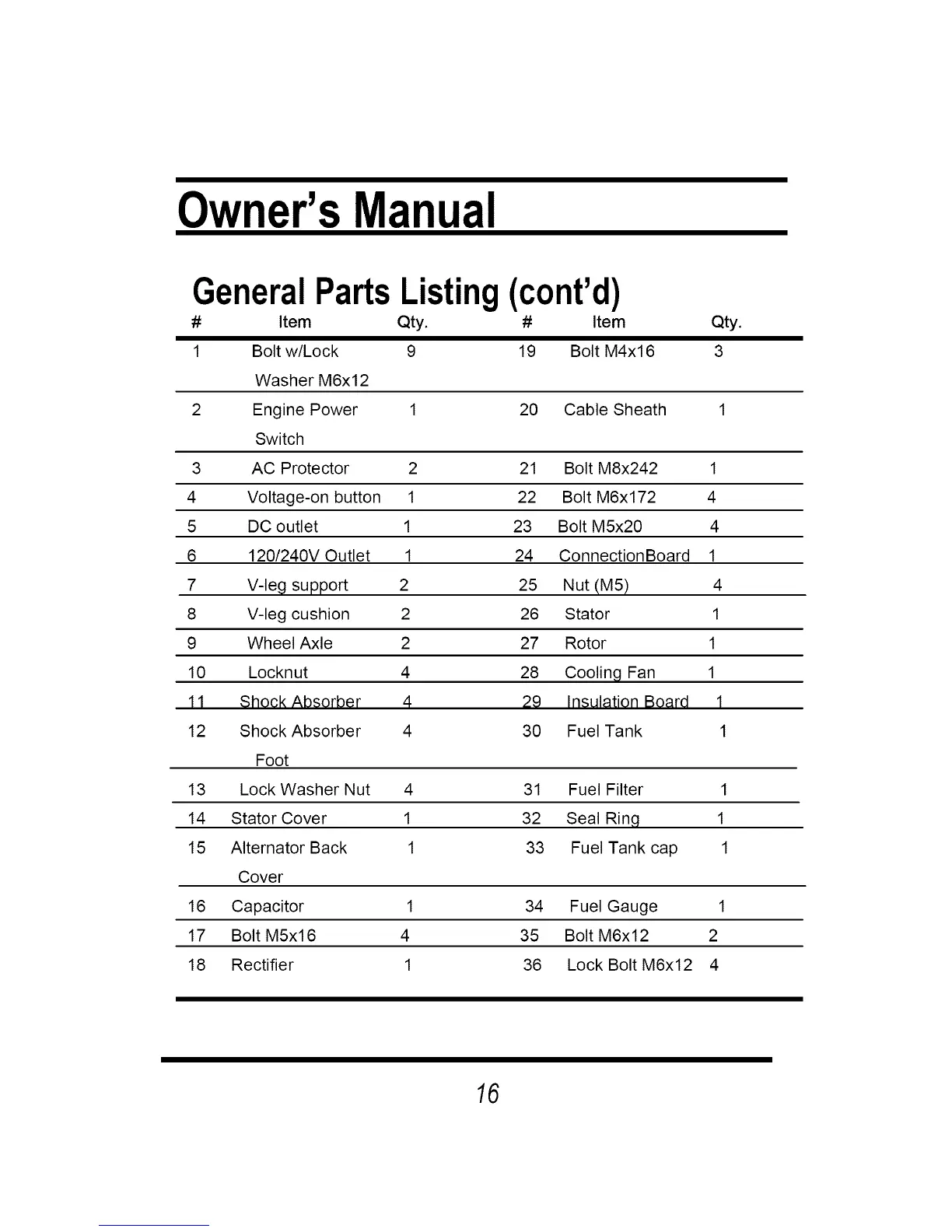

GeneralPartsListing(cont'd)
# Item Qty.
1 Bolt w/Lock 9
Washer M6x12
2 Engine Power 1
Switch
3 AC Protector 2
4 Voltage-on button 1
5 DC outlet 1
6 120/240V Outlet 1
7 V-leg support 2
8 V-leg cushion 2
9 Wheel Axle 2
10 Lockn ut 4
11 Shock Absorber 4
12 Shock Absorber 4
Foot
13 Lock Washer Nut 4
14 Stator Cover 1
15 Alternator Back 1
Cover
16 Capacitor 1
17 Bolt M5x16 4
18 Rectifier 1
# Item Qty.
19 Bolt M4x16 3
20 Cable Sheath 1
21 Bolt M8x242 1
22 Bolt M6x172 4
23 Bolt M5x20 4
24 ConnectionBoard 1
25 Nut (M5) 4
26 Stator 1
27 Rotor 1
28 Cooling Fan 1
29 Insulation Board 1
30 Fuel Tank 1
31 Fuel Filter 1
32 Seal Ring 1
33 Fuel Tank cap 1
34 Fuel Gauge 1
35 Bolt M6x12 2
36 Lock Bolt M6x12 4
16
