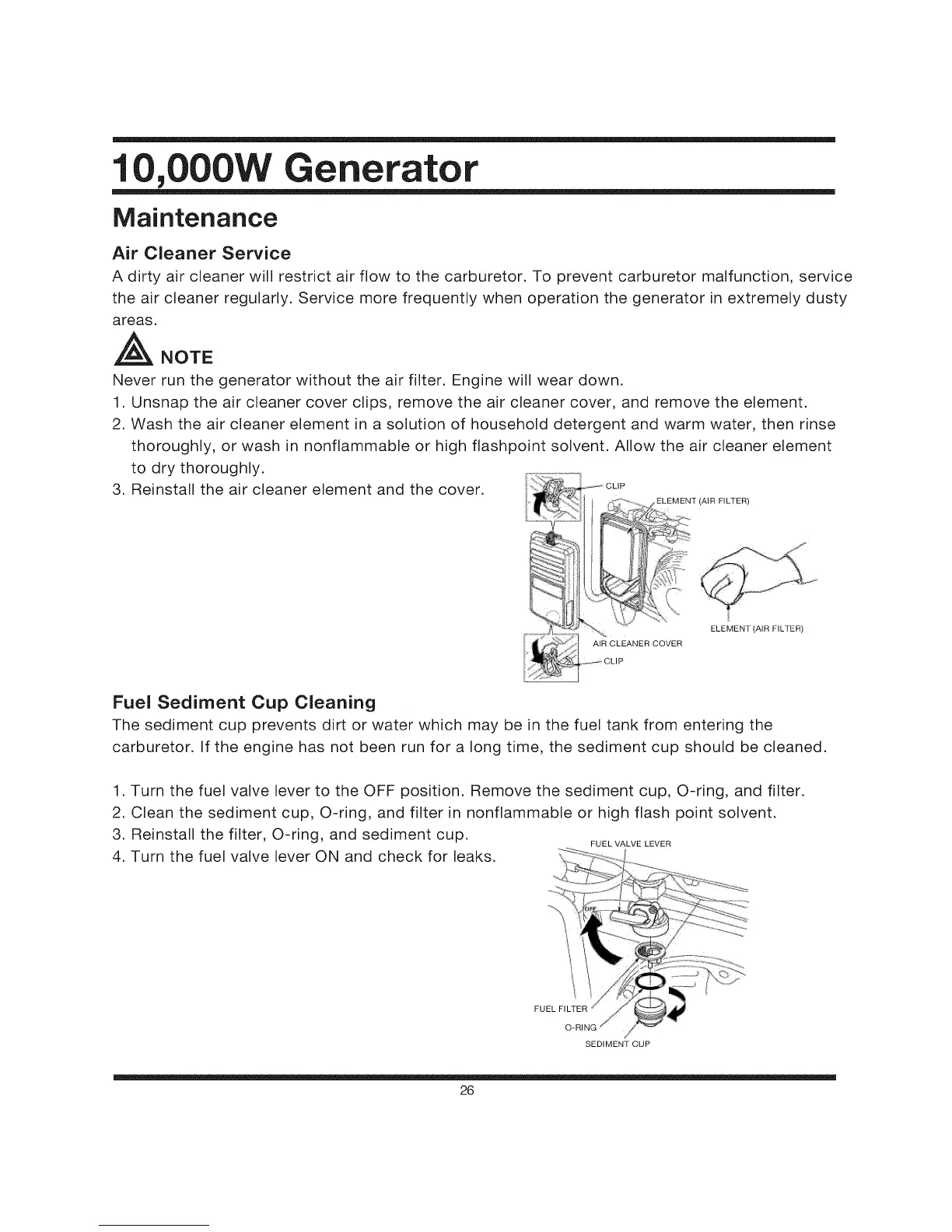

10,O00W Generator
Maintenance
Air Cleaner Service
A dirty air cleaner will restrict air flow to the carburetor. To prevent carburetor malfunction, service
the air cleaner regularly. Service more frequently when operation the generator in extremely dusty
areas.
,_ NOTE
Never run the generator without the air filter. Engine will wear down.
1. Unsnap the air cleaner cover clips, remove the air cleaner cover, and remove the element.
2. Wash the air cleaner element in a solution of household detergent and warm water, then rinse
thoroughly, or wash in nonflammable or high flashpoint solvent. Allow the air cleaner element
to dry thoroughly.
3. Reinstall the air cleaner element and the cover.
........ CLIP
AIR CLEANER COVER
...... CLIP
ELEMENT (AIR FILTER)
Fuel Sediment Cup Cleaning
The sediment cup prevents dirt or water which may be in the fuel tank from entering the
carburetor. If the engine has not been run for a long time, the sediment cup should be cleaned.
1. Turn the fuel valve lever to the OFF position. Remove the sediment cup, O-ring, and filter.
2. Clean the sediment cup, O-ring, and filter in nonflammable or high flash point solvent.
3. Reinstall the filter, O-ring, and sediment cup. FUELVALVELEVER
4. Turn the fuel valve lever ON and check for leaks.
FUEL FILTER /
O*RIN(
SEDIMENT CUP
26
