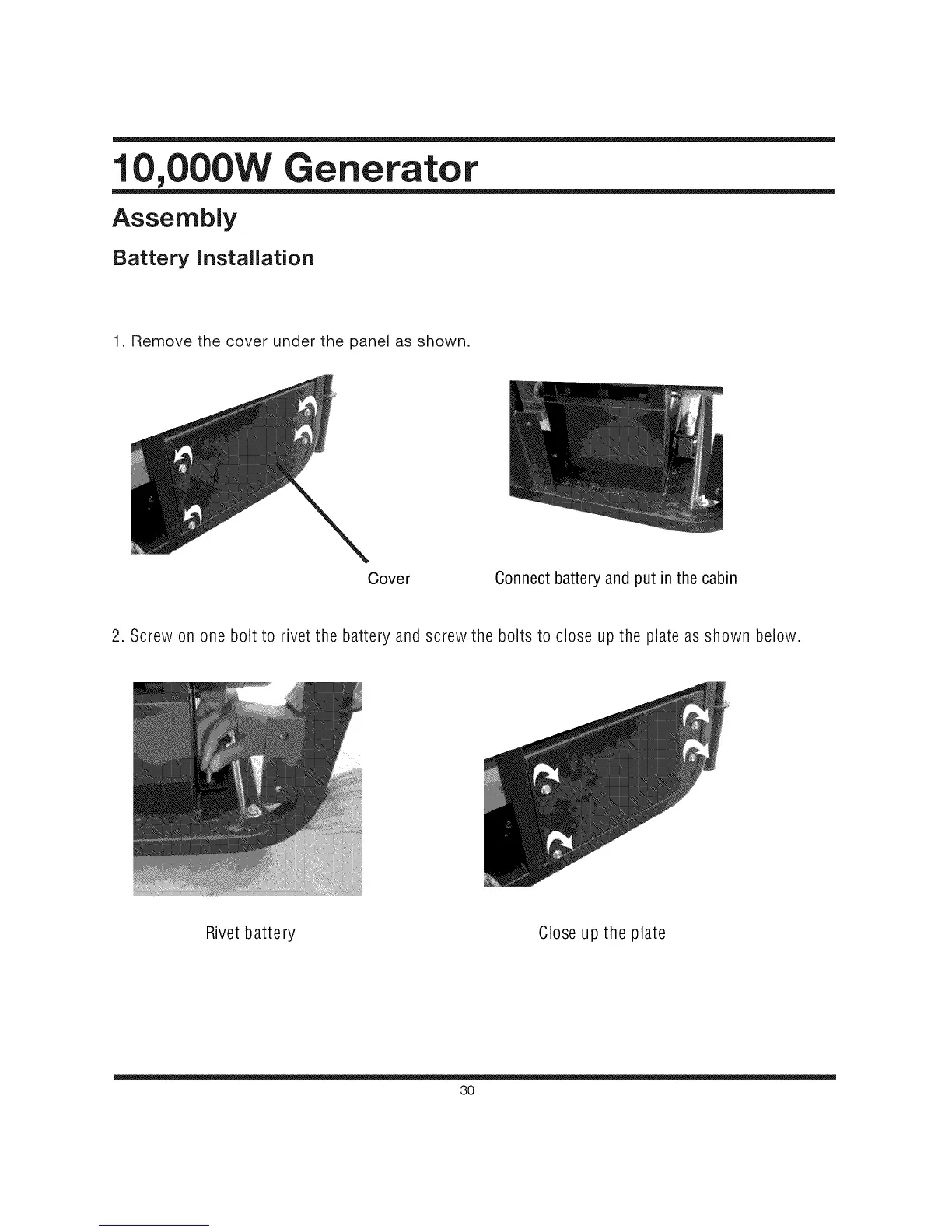

10,O00W Generator
Assembly
Battery Installation
1. Remove the cover under the panel as shown.
Cover
Connect battery and put in the cabin
2. Screw on one bolt to rivet the battery and screw the bolts to close up the plate as shown below.
Rivet battery Close up the plate
3O
