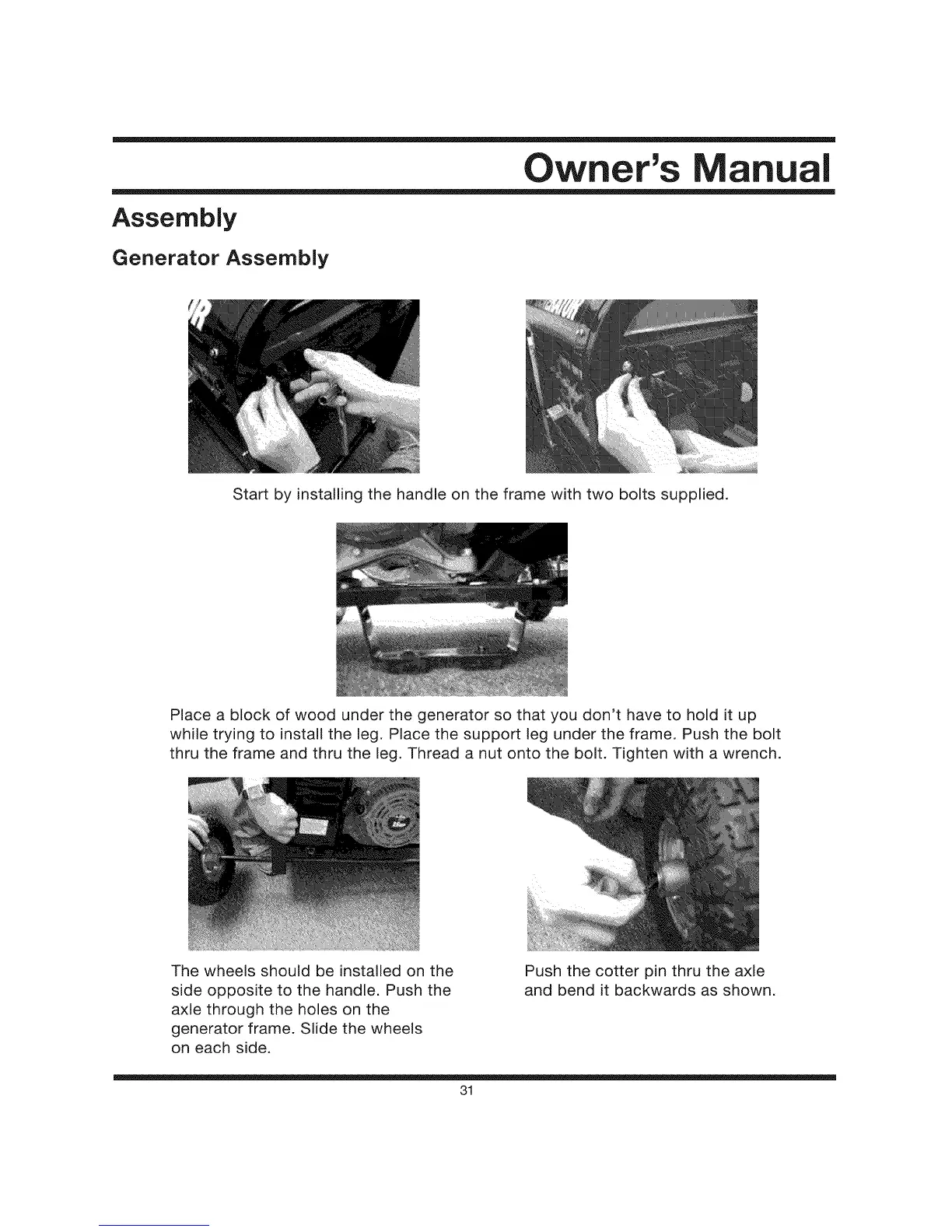

Owner's anual
Assembly
Generator Assembly
Start by installing the handle on the frame with two bolts supplied.
Place a block of wood under the generator so that you don't have to hold it up
while trying to install the leg. Place the support leg under the frame. Push the bolt
thru the frame and thru the leg. Thread a nut onto the bolt. Tighten with a wrench.
The wheels should be installed on the
side opposite to the handle. Push the
axle through the holes on the
generator frame. Slide the wheels
on each side.
Push the cotter pin thru the axle
and bend it backwards as shown.
31
