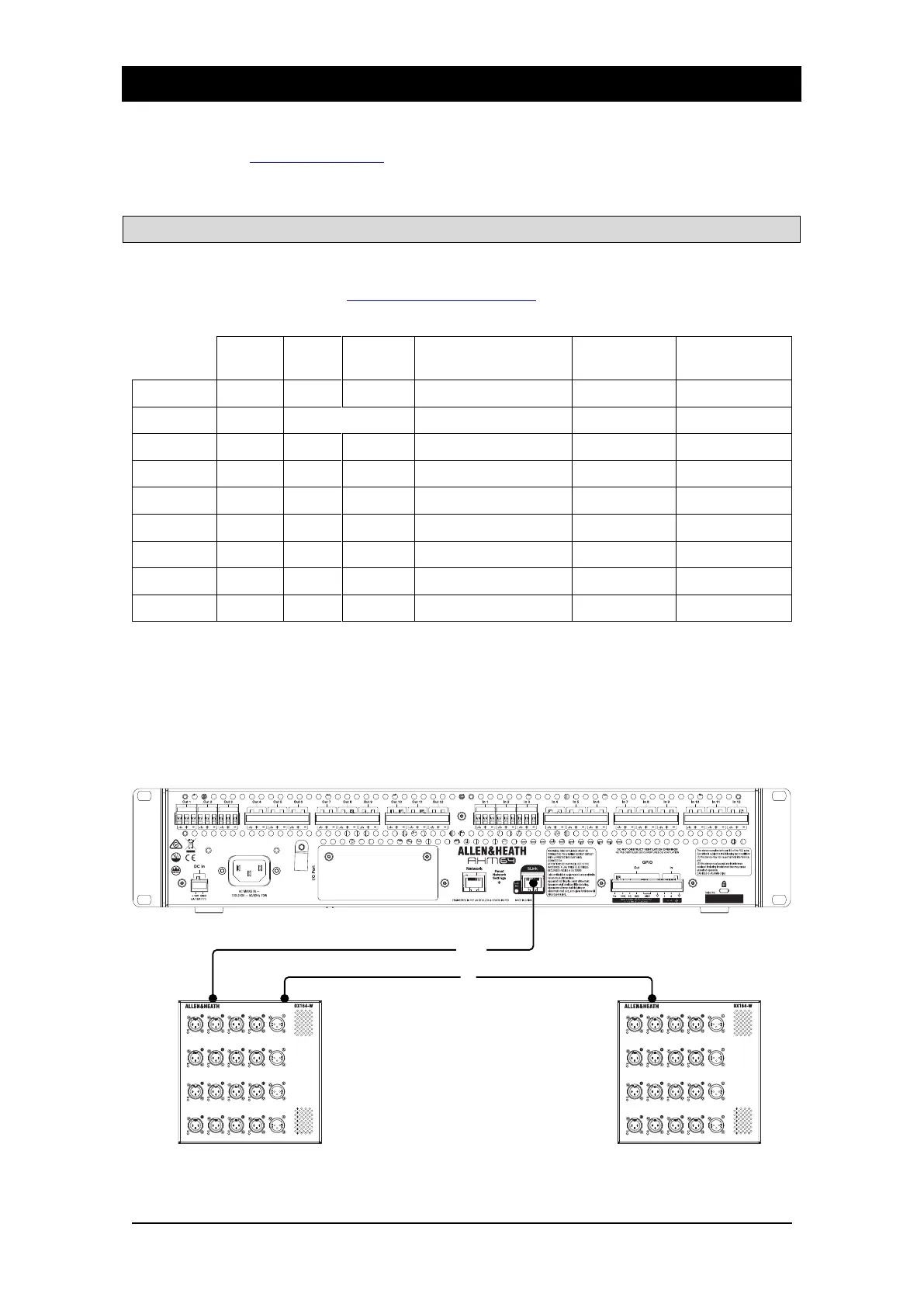

6. Connections - Audio
For all audio connections, use CAT5e (or higher specification) STP cables up to 100m long.
 Refer to www.allen-heath.com for cable requirements, recommendations, and a list
of CAT cables available to order.
6.1 Audio expanders over SLink
When an audio expander is connected, the SLink port detects the type of device and automatically
switches to the relevant Allen & Heath protocol, sample rate and Ethernet speed. The table below lists
compatible audio expanders. Visit allen-heath.com/everything-io/ for more information on our range of
expansion options.
Sample
Rate
Inputs
Outputs
Connection
Protocol
Ethernet
speed
GX4816
96kHz
48
16
SLink port
gigaACE
Gigabit
DX32
96kHz
<32
SLink port or DX Hub
DX
Fast Ethernet
DX168
96kHz
16
8
SLink port or DX Hub
DX
Fast Ethernet
DX164-W
96kHz
16
4
SLink port or DX Hub
DX
Fast Ethernet
DX012
96kHz
0
12
SLink port or DX Hub
DX
Fast Ethernet
DX Hub
96kHz
128
128
SLink port
gigaACE
Gigabit
AR2412
48kHz
24
12
SLink port
dSnake
Fast Ethernet
AR84
48kHz
8
4
Slink port
dSnake
Fast Ethernet
AB168
48kHz
16
8
Slink port
dSnake
Fast Ethernet
At connection or power up, AHM-64 will check the firmware version of the expander device and upgrade
or downgrade the device to match the main unit firmware.
Up to 2x dSnake 48kHz expanders can be daisy-chained over SLink, provided the first expander is an
AR2412 or AB168, and the second expander is an AB168 or AR84. Connection of 2x AR2412 is not
supported.
Up to 2x DX168, DX164-W, DX012 expanders in any combination can be daisy-chained over SLink. AHM-
64 does not support redundant connection to DX expanders.
SLink
DX164-W
Cascade Mode: ON
DX164-W
DX
