Allen & Heath 14 XONE:43 User Guide

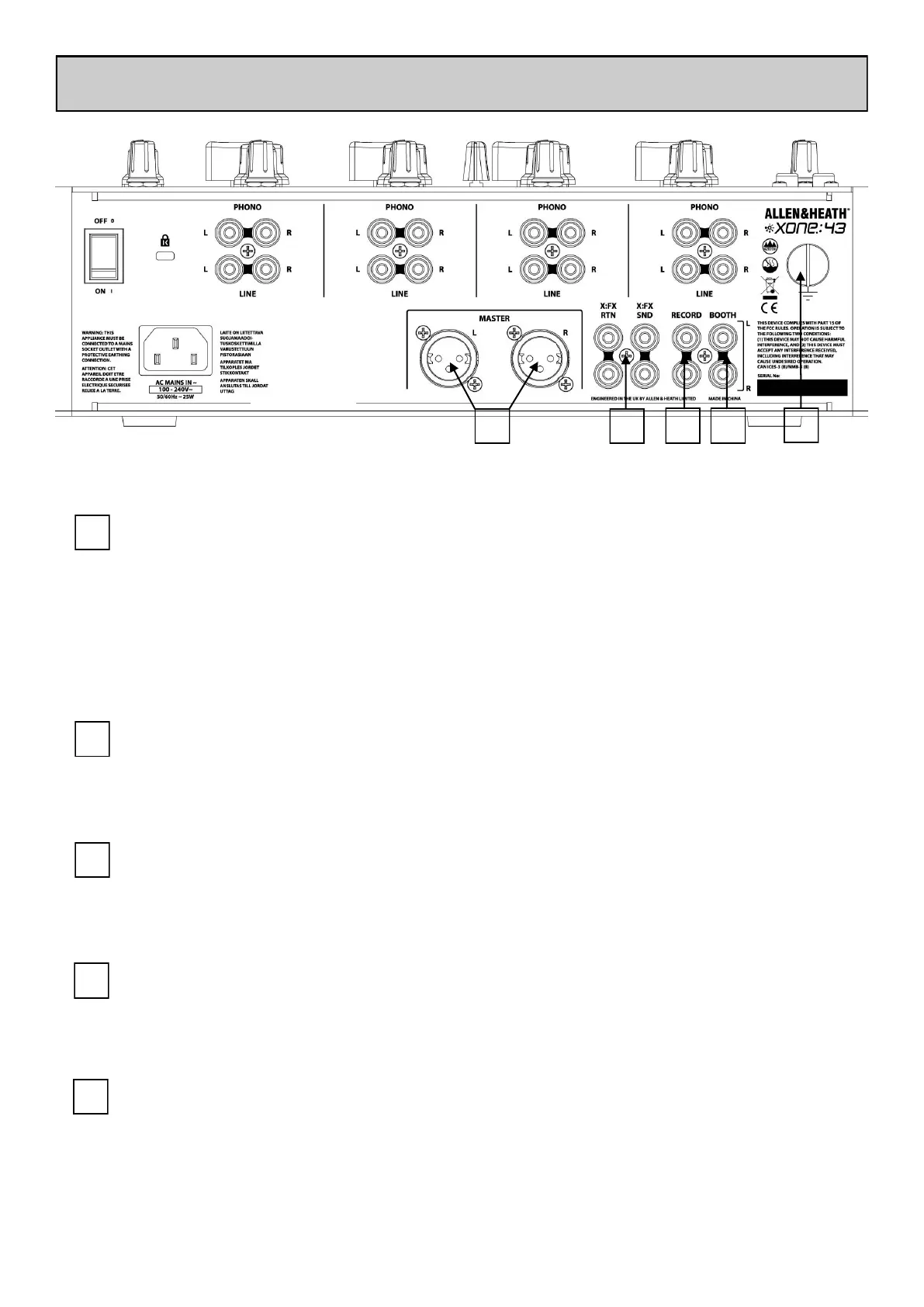

REAR CONNECTORS
5
6
4
Master Output
Balanced XLR. This is the main output that feeds the house PA system. Plug into the house
processor/amplifier system using balanced cables. Use balanced cables and equipment.
When the main meter LEDs are at “0dB” the output will nominally be at +4dBu. Do not
unbalance this output by shorting one phase to ground—for unbalanced operation use pin 2
only.
Booth Output
RCA phono, 0dBu. Provides a line level stereo feed to the DJ local monitor amplifier sys-
tem. It is not affected by the master fader or cue system.
X:FX Send/Return
RCA phono. Connect your external effects device and use the X:FX dry / wet control to
send channel signals to the effects unit. The signal returns to the mix bus but can be routed
to the VCF filter by pressing the ‘X:FX’ button on the front panel filter section. This allows
the filter to be ‘stacked’ with an external effects device.
Record Output
RCA Phono, nominal 0dBu. Pre-level mix output for connection to external recording de-
vices.
Chassis Earth Terminal
A screw terminal is provided for connecting the earth straps from turntables. This connec-
tion earths the metal parts of the turntable to reduce hum, buzz or similar audible noise get-
ting into the system.
4
5
6 7
7
8
8
