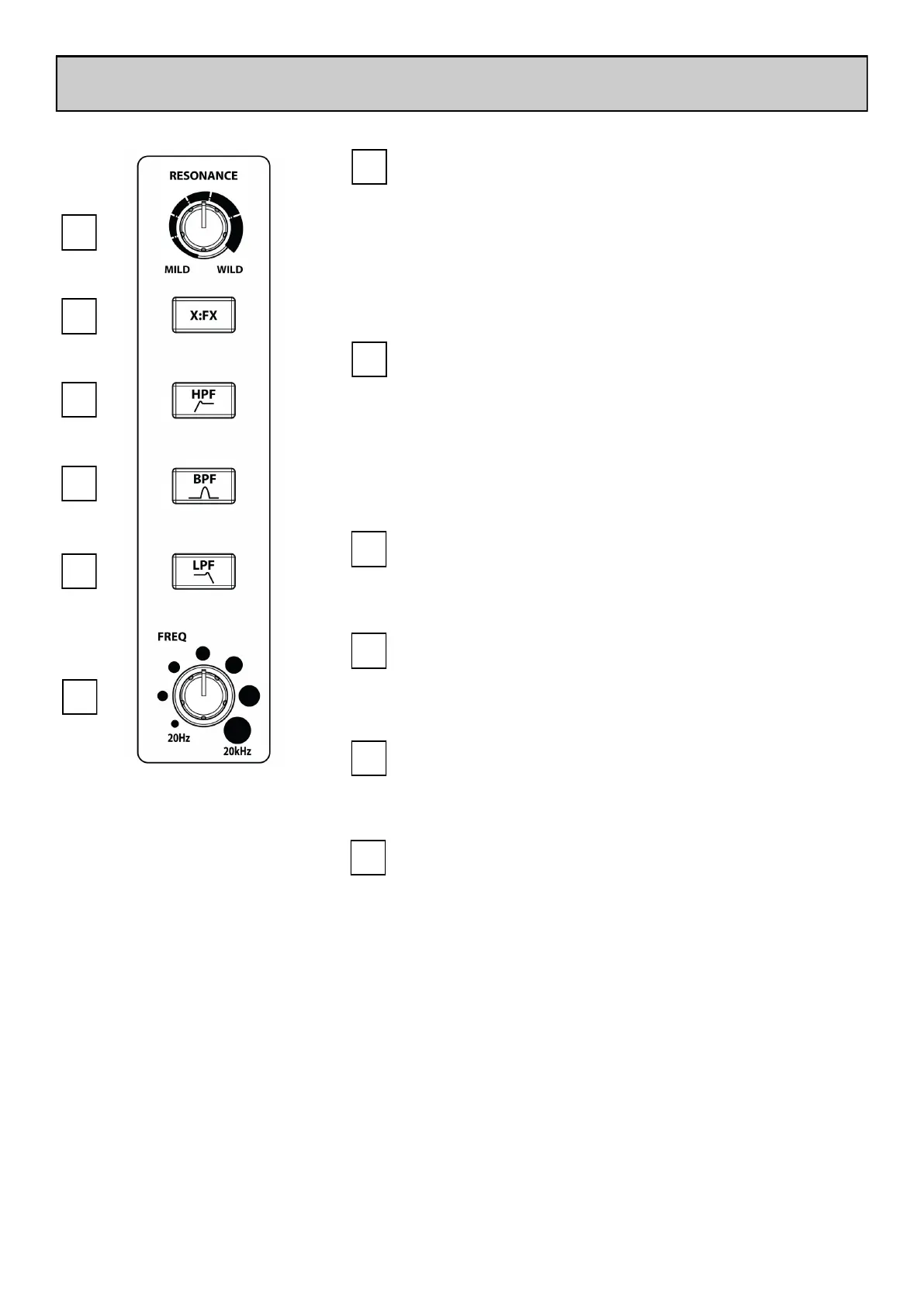

FILTER SECTION
1
2
3
4
5
1
X:FX Return to Filter
Pressing this button routes the X:FX return to the VCF
filter, instead of directly into the main mix buss. The
effected channel signal can then be filtered as well, allow-
ing extra versatility and creativity to be brought into the
mix.
2
Resonance Control
This produces the classic Xone VCF sound by feeding
some of the filter output back to its input. The control
ranges from ‘mild’ producing a very subtle effect, to
‘wild’ producing a dramatic phase effect with feedback
just short of oscillation.
3
HPF
Turns on the high pass (bass cut) filter slope.
4
BPF
Turns on the band pass (bell shaped) filter slope.
5
LPF
Turns on the low pass (treble cut) filter slope.
Frequency Sweep Control
This control sets the –3dB cut-off frequency of the filter.
It ranges from very low frequency (20Hz) to very high
frequency (20kHz).
