Configuration Mode Chapter 3
• The CPU temperature must be less than 95 °C (203 °F).
• The battery voltage must be at least 2.75V DC.

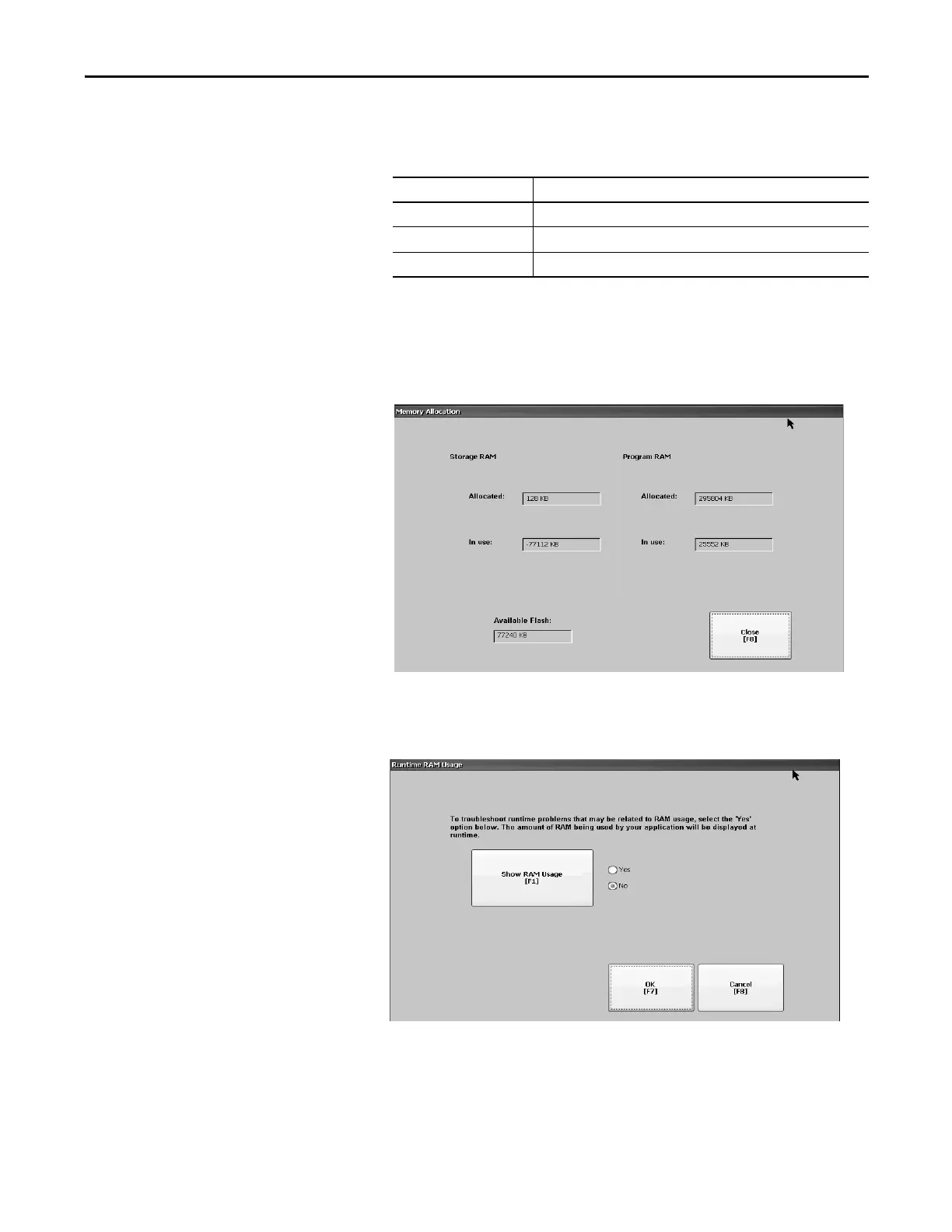

2. Press Memory Allocation to view the following:
• Amount of allocated storage or program memory
• Amount of storage or program memory in use
• Amount of available nonvolatile memory
3. Press Close to return to previous dialog box.
4. Press Runtime RAM Usage to troubleshoot runtime anomalies by showing
the amount of RAM used by your application at runtime.
5. Press OK to return to previous dialog box.
6. Press Close until you return to terminal settings.
Battery State Description
Good Good battery condition.
Failing Low battery. Replace the battery.
Bad Battery is missing or bad. Replace the battery.
