Bulletin 700S-P
• Mechanically-linked
contacts meeting
IEC 947-5-1-L
• 2…12 poles–all
mechanically-linked
• Red faceplate for easy
identification of safety
circuits
• IEC mechanically-linked
contacts symbol
displayed on front
• Double-break contacts
to reduce probability of
welded contacts
• Visual indication of
contact state
• Tamper resistant Lexan
®
cover helps prevent
changes which could
jeopardize safety
• Complete catalog
number displayed on
front
• Ideal for use in safety
circuits
TABLE OF CONTENTS
Description Page Description Page
Product Selection
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Specifications
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Approximate Dimensions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

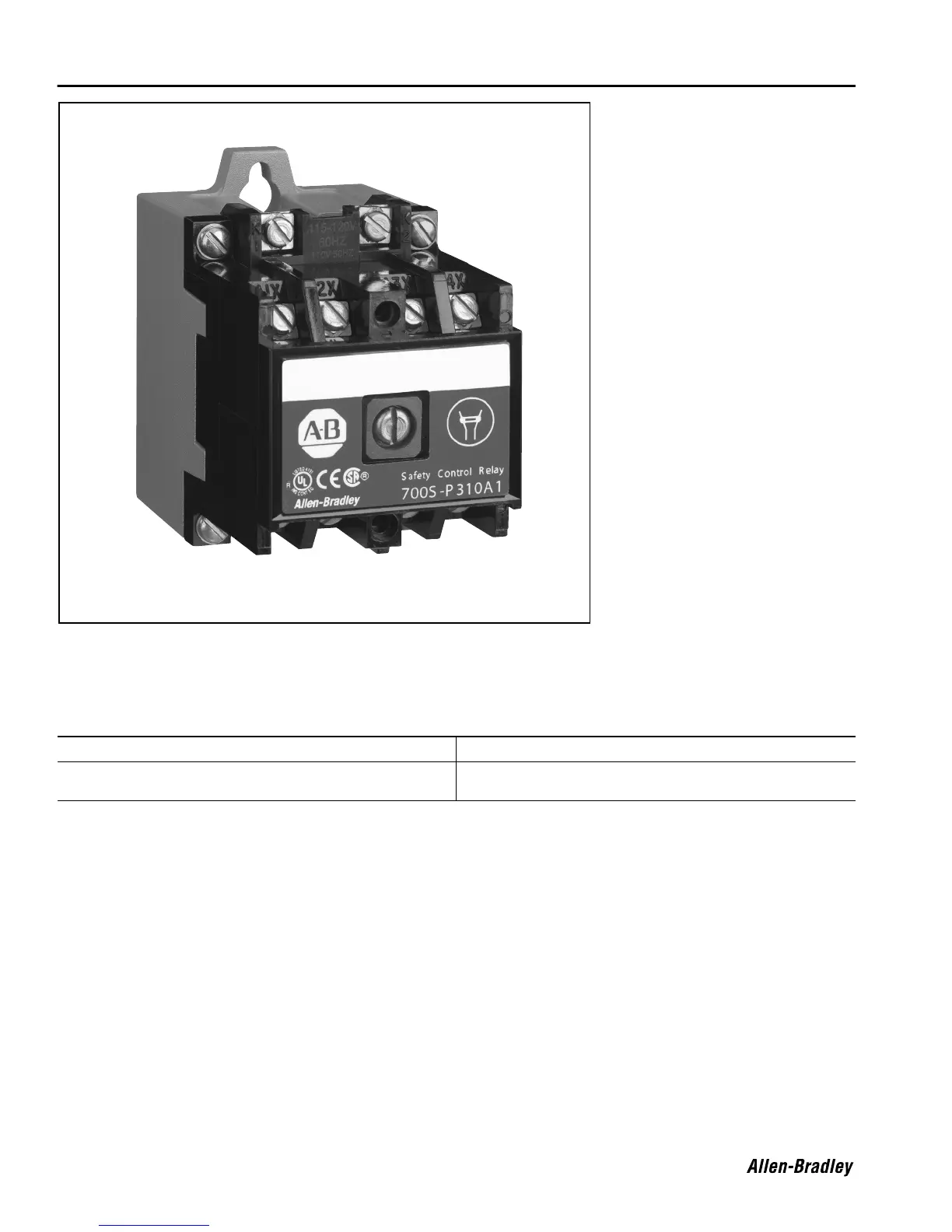

Description
The 700S-P safety control relay is designed with special features for use in safety circuits. It is designed to reduce the possibility
of a welded contact, and, with external monitoring, a welded contact can be detected if one ever occurs. It features mechanically
linked contacts for all N.O./N.C. contact pairs which allow detection of a welded contact in any of the poles. Contacts cannot be
added, removed, nor changed so that the safety function is never jeopardized. Similarly, there is no “push-to-test” function so that
safety function is not jeopardized. Typical applications: use with E-stops, light curtains, safety gates, safety interlocks.
Your order must include:
• Cat. No. of the relays required,
complete with coil suffix.
Conformity to Standards Approvals
NEMA ICS-5-2
EN/IEC 60947-5-1, including
Mechanically-linked Contacts
IEC 337-1 CENELEC
BS 4794
cULus Listed
VDE 0660
UL File #E14840, Guide NKCR
CSA C22.2 No. 14
ANSI B11.19, section 5.5.1, Control Reliability
UL508
CE Certified
