34 Rockwell Automation Publication 2080-UM003A-EN-E - March 2013
Chapter 5 Configure Your Expansion I/O Module
2085-IF4 and 2085-IF8

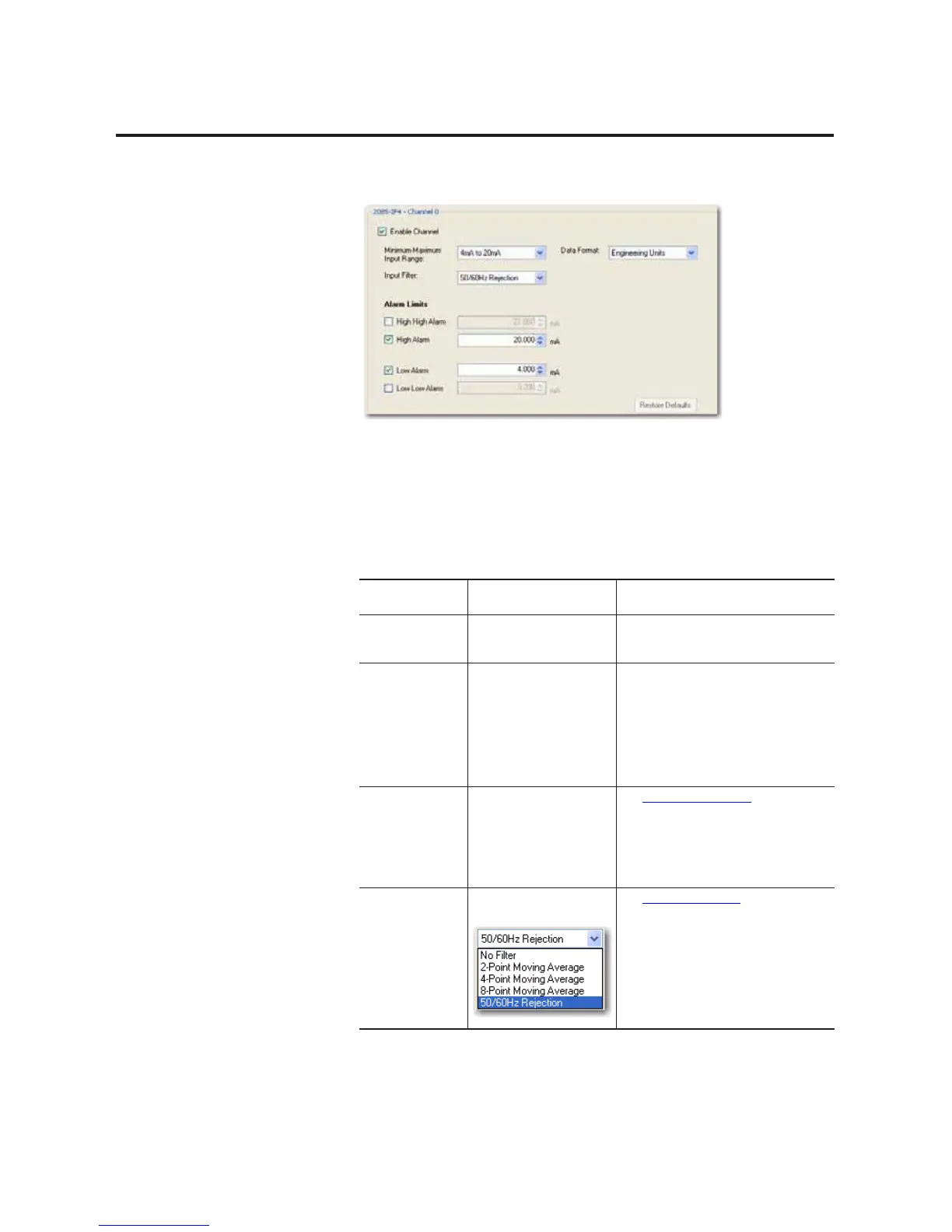

For the analog input modules, 2085-IF4 and 2085-IF8, you can configure
properties such as input range, format, filter and alarm limits for each individual
channel.
Configuration Parameters for 2085-IF4 and 2085-IF8
Configuration
Property
What to do Description
Enable Channel Select or deselect the
checkbox. The box is selected
by default.
Enable or disable a channel through this
checkbox. By default, each channel is
enabled.
Minimum-Maximum
Input Range
Choose from a range of
values:
• 0…20 mA
• 4…20 mA (default)
• -10…10 V
• 0…10 V
Defines the input mode for the channel as
either voltage or current, with current as
default mode.
Data format Select from the following
options:
• Raw/Proportional Data
• Engineering Units (default)
• Percent Range
See Data formats on page 7
for detailed
information.
Input filter Choose from the following
values:
See Input Filter on page 9
for detailed
information.
