166 Rockwell Automation Publication 750-IN001O-EN-P - October 2014
Chapter 4 Power Wiring

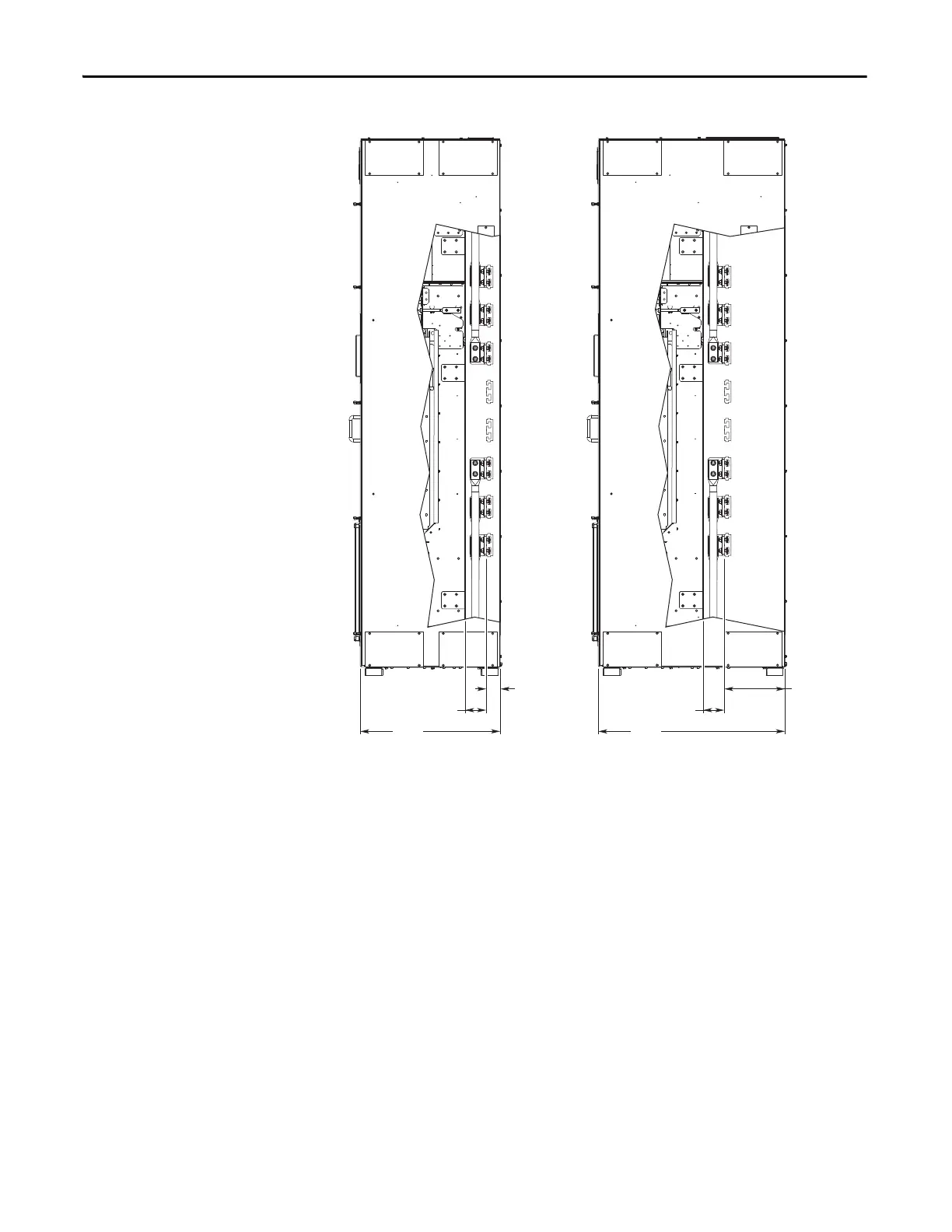

Figure 101 - Floor Mount Drives Cabinet Clearances
Dimensions are in millimeters and (inches).
102
(4.0)
69
(2.7)
600
(23.6)
269
(10.6)
800
(31.5)
102
(4.0)
