Rockwell Automation Publication 750-IN001O-EN-P - October 2014 53
Lift and Mount the Drive Chapter 3

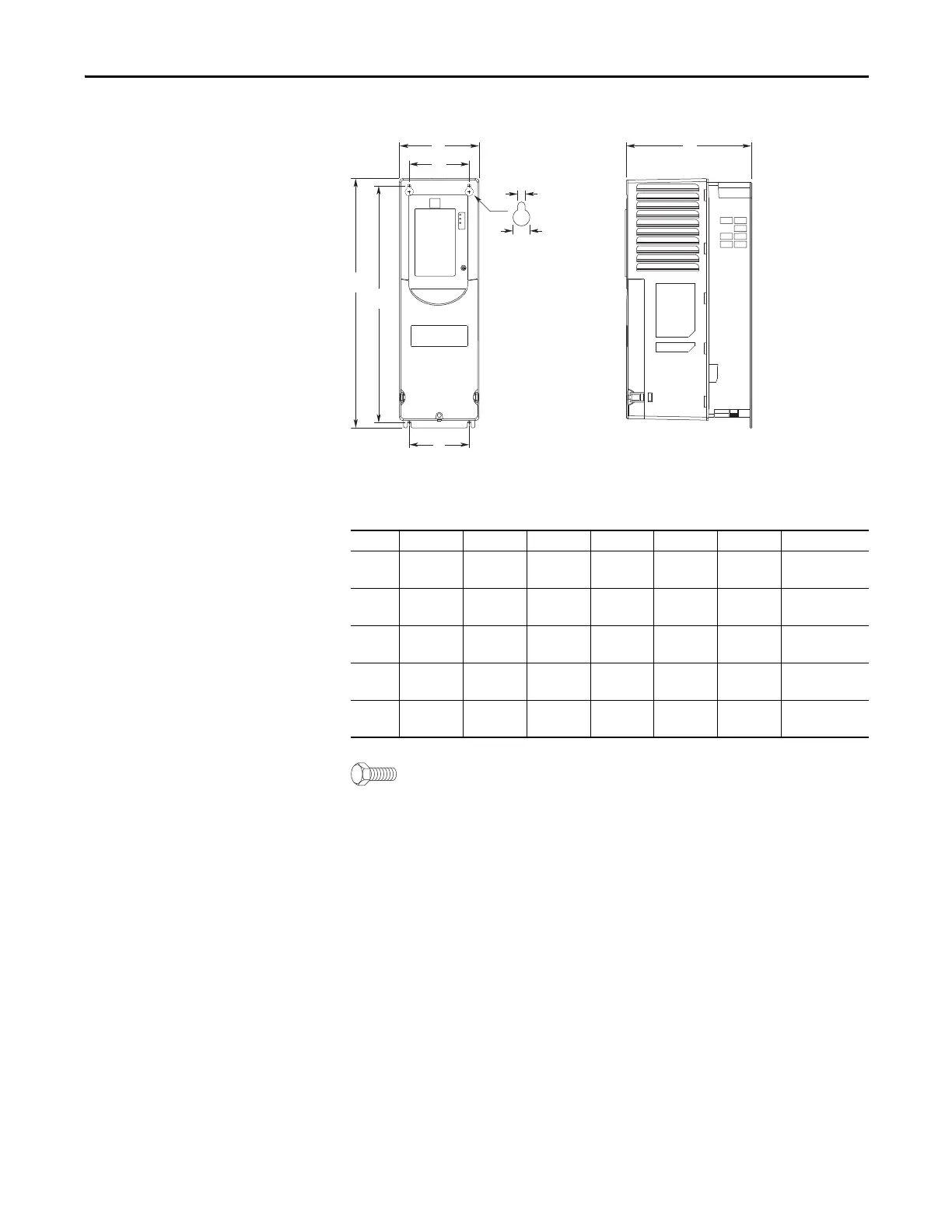

Figure 14 - IP20, NEMA/UL Open Type, Wall Mount Frames 1…5 (Frame 2 Shown)
Dimensions are in millimeters and (inches).
Weights are in kilograms and (pounds).
M6 (#10 or #12) mounting hardware recommended.
Frame A B C D E F Weight kg (lb)
1 110.0
(4.33)
400.5
(15.77)
211.0
(8.31)
68.0
(2.68)
82.0
(3.23)
390.4
(15.37)
6.0
(12.75)
2 134.5
(5.30)
424.2
(16.70)
212.0
(8.35)
100.0
(3.94)
100.0
(3.94)
404.2
(15.91)
7.8
(17.2)
3 190.0
(7.48)
454.0
(17.87)
212.0
(8.35)
158.0
(6.22)
158.0
(6.22)
435.0
(17.13)
11.8
(26.1)
4 222.0
(8.74)
474.0
(18.66)
212.0
(8.35)
194.0
(7.64)
202.0
(7.95)
455.0
(17.91)
13.6
(30.0)
5 270.0
(10.63)
550.0
(21.65)
212.0
(8.35)
238.0
(9.37)
238.0
(9.37)
531.0
(20.91)
20.4
(45.0)
14.3 (0.56)
6.4 (0.25)
A
D
B
F
C
E
