Lift and Mount the Drive Chapter 3

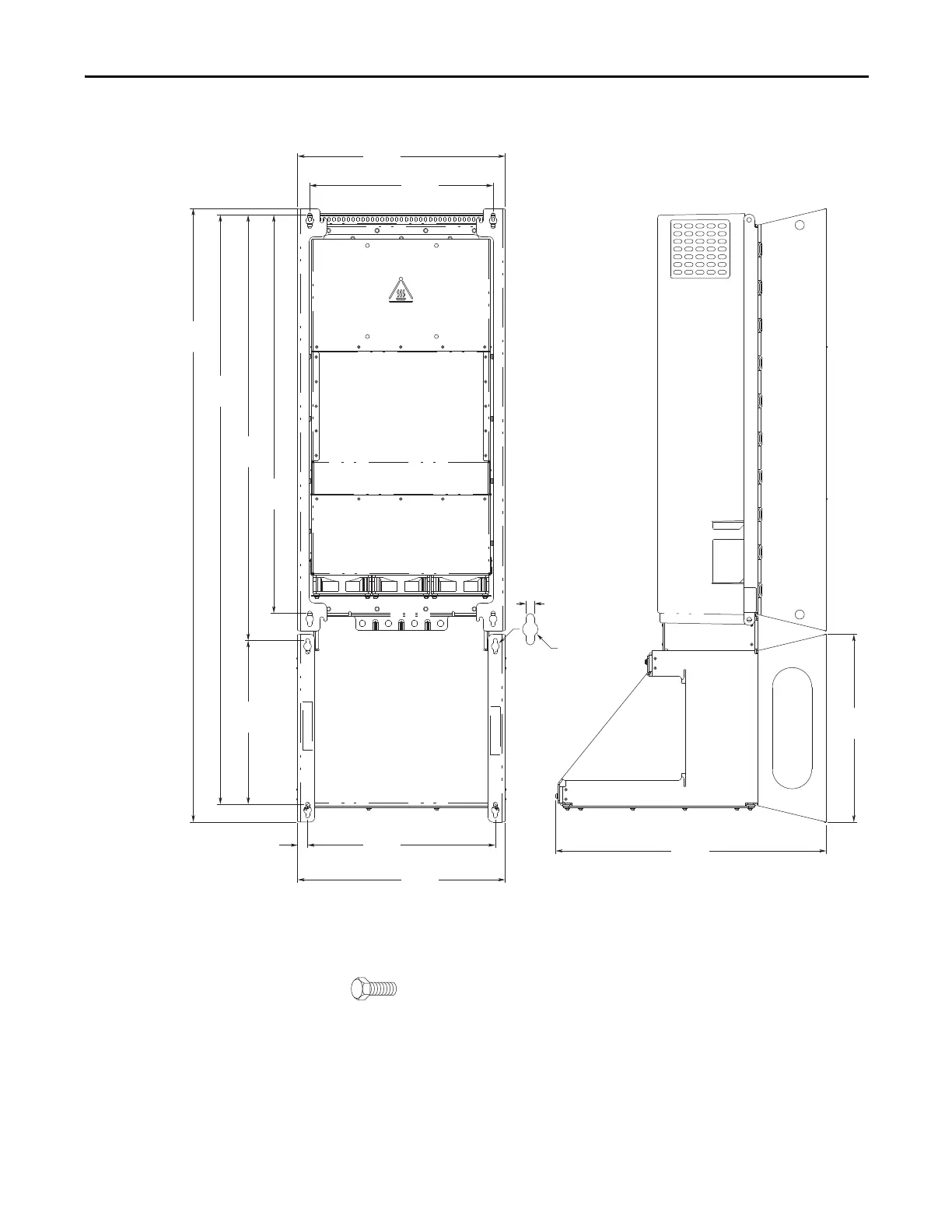

Figure 31 - NEMA/UL Type 1, Wall Mount Frame 7
Dimensions are in millimeters and (inches).
M8 (5/16 in.) mounting hardware recommended.
430.0
(16.93)
1271.0
(50.04)
1221.0
(48.07)
881.8
(34.72)
825.0
(32.48)
380.0
(14.96)
389.0
(15.31)
20.5
(0.81)
561.0
(22.08)
389.2
(15.32)
8.5 (0.33)
ø16.0 (0.63)
430.0
(16.93)
339.2
(13.35)
