Rockwell Automation Publication 750-IN001O-EN-P - October 2014 81
Lift and Mount the Drive Chapter 3

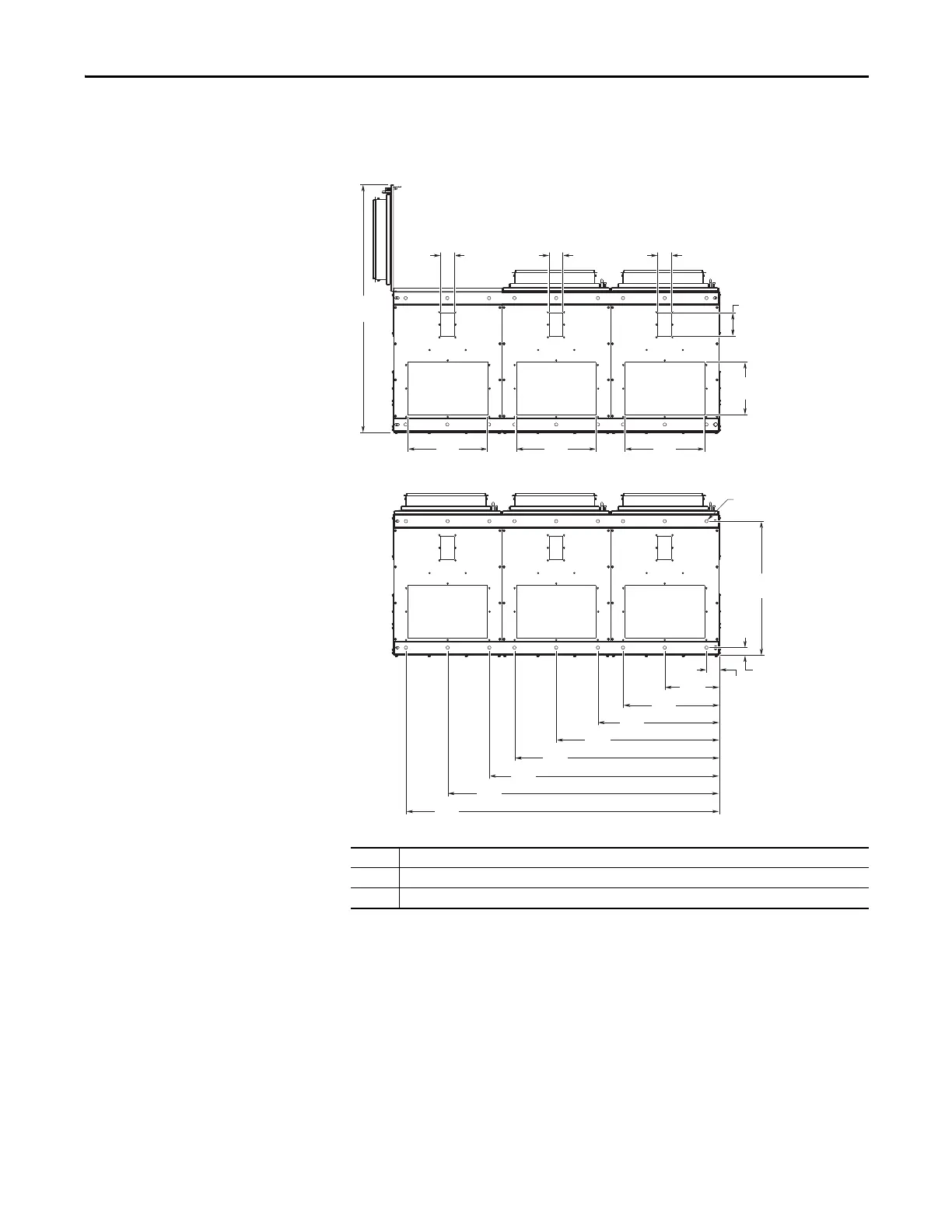

Figure 43 - IP54, NEMA 12, MCC Style Cabinet, Floor Mount Frame 10 Bottom Access
(Enclosure Codes K and Y)
IP54, UL Type 12, MCC Style Cabinet, Floor Mount Frame 10 Bottom Access
(Enclosure Code J)
No. Description
➊ Power wiring conduit plates.
➋ Control wiring conduit plates.
1374
(54.1)
440
(17.3)
76
(3.0)
➊
➋
440
(17.3)
76
(3.0)
➊
➋
292
(11.5)
440
(17.3)
76
(3.0)
127
(5.0)
➊
➋
300
(11.8)
531
(20.9)
669
(26.3)
ø18.0
(0.71)
742
(29.2)
43
(1.7)
69
(2.7)
900
(35.4)
1131
(44.5)
1500
(59.1)
1731
(68.1)
1269
(50.1)
