Allen-Bradley PowerFlex 20-750-DENC-1 User Manual

Rockwell Automation Publication 750-IN001O-EN-P - October 2014 259
I/O Wiring Chapter 5

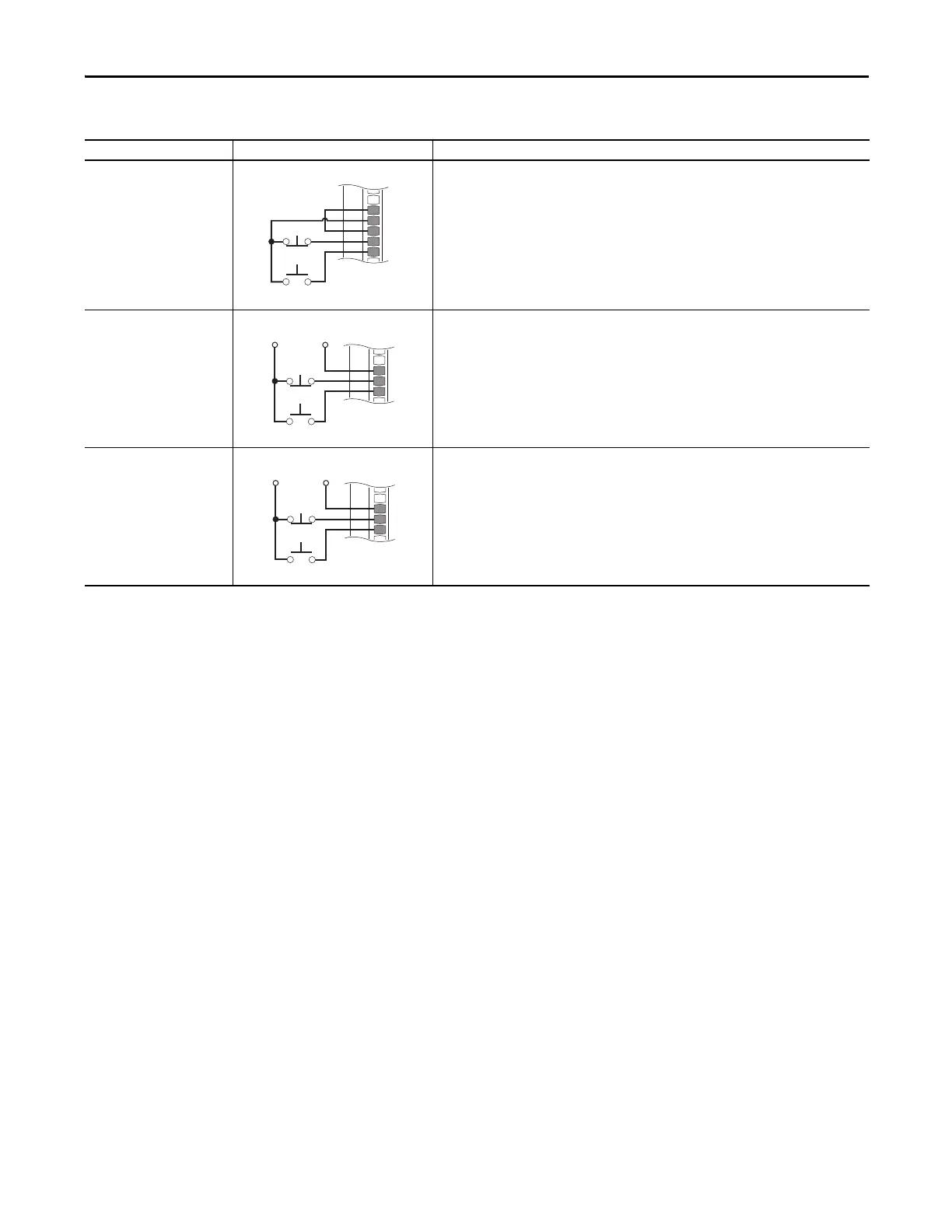

3-Wire Control
Internal supply
22-Series I/O Module TB1
• Set Selection
Port 0: P158 [DI Stop] = Port X (22-Series I/O Module): P1 [Dig In Sts], bit 0 = Input 0
Port 0: P161 [DI Start] = Port X (22-Series I/O Module): P1 [Dig In Sts], bit 1 = Input 1
• View Results
Port X (22-Series I/O Module): P1 [Dig In Sts]
Port 0: P935 [Drive Status 1]
3-Wire Control
External 24 volt supply
20-750-2262C-2R
20-750-2263C-1R2T
22-Series I/O Module TB1
• Set Selection
Port 0: P158 [DI Stop] = Port X (22-Series I/O Module): P1 [Dig In Sts], bit 0 = Input 0
Port 0: P161 [DI Start] = Port X (22-Series I/O Module): P1 [Dig In Sts], bit 1 = Input 1
• View Results
Port X (22-Series I/O Module): P1 [Dig In Sts]
Port 0: P935 [Drive Status 1]
3-Wire Control
External 120 volt supply
20-750-2262D-2R
22-Series I/O Module TB1
• Set Selection
Port 0: P158 [DI Stop] = Port X (22-Series I/O Module): P1 [Dig In Sts], bit 0 = Input 0
Port 0: P161 [DI Start] = Port X (22-Series I/O Module): P1 [Dig In Sts], bit 1 = Input 1
• View Results
Port X (22-Series I/O Module): P1 [Dig In Sts]
Port 0: P935 [Drive Status 1]
22-Series I/O Module TB1 Wiring Examples (Continued)
Input/Output Connection Example Required Parameter Changes
24VC
+24V
Di C
Di 0
Di 1
Stop
Start
Di C
Di 0
Di 1
Stop
Start
+24V Common
Di C
Di 0
Di 1
Stop
Start
+120V Common
