Rockwell Automation Publication 750-IN001O-EN-P - October 2014 59
Lift and Mount the Drive Chapter 3

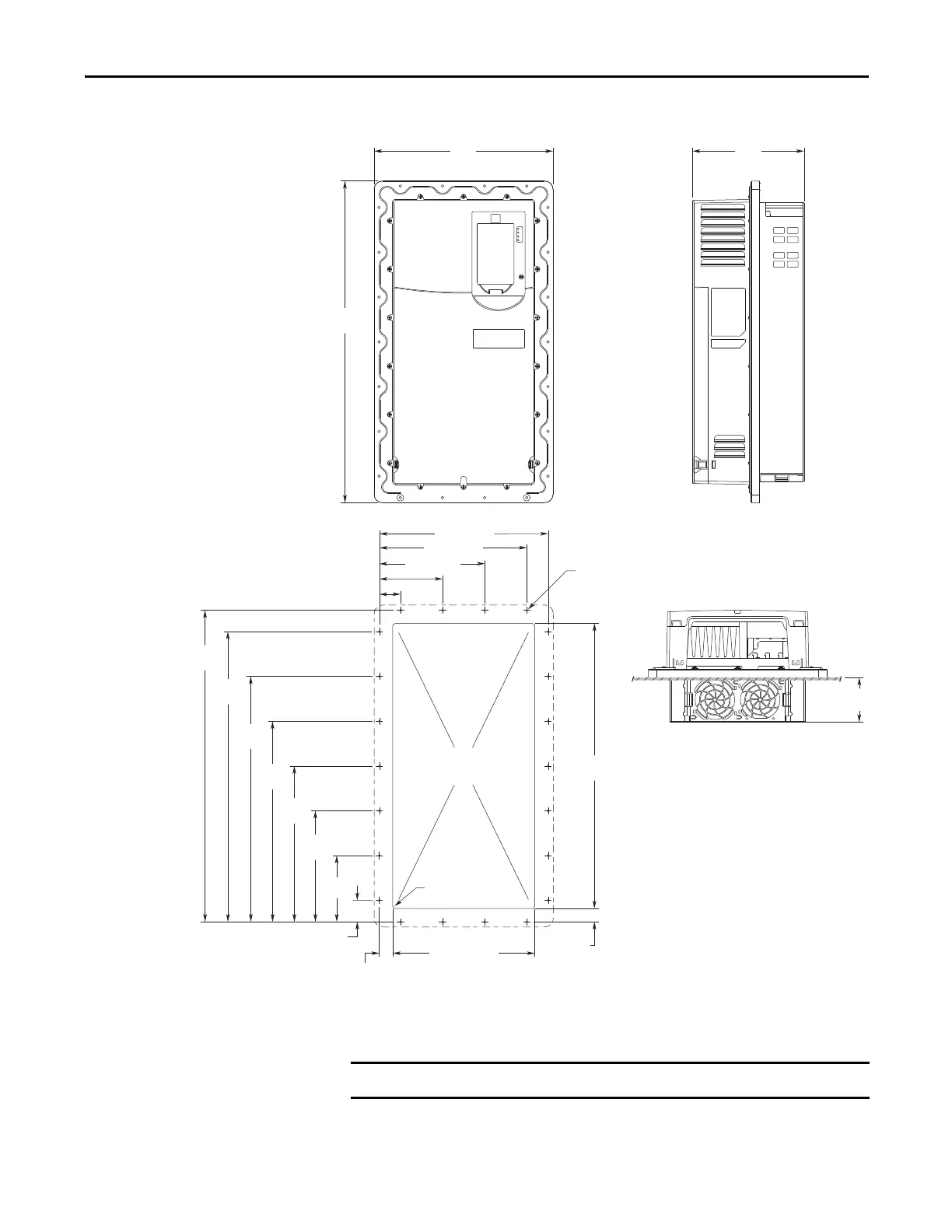

Figure 21 - Flange Mount, Frame 5
Dimensions are in millimeters and (inches).
211.9
(8.34)
340.0
(13.39)
611.0
(24.06)
259.0 +1.8/-0.0
(10.20 +0.07/-0.00)
531.0 +1.8/-0.0
(20.91 +0.07/-0.00)
125.75
(4.951)
40.75
(1.604)
210.75
(8.297)
295.75
(11.644)
380.75
(14.990)
465.75
(18.337)
550.75
(21.683)
591.50
(23.287)
40.25 (1.585)
120.25 (4.734)
200.25 (7.884)
280.25 (11.033)
320.50 (12.618)
22x: Ø3.50
(Ø0.138)
84.5
(3.33)
30.75
(1.211)
4x: 5.00R
(0.197R)
30.25
(1.191)
IMPORTANT
Must use mounting hardware supplied to meet enclosure rating.
