128 Rockwell Automation Publication 750-IN001O-EN-P - October 2014
Chapter 3 Lift and Mount the Drive
Disconnect Cabinet Options Wiring and Electrical Connections

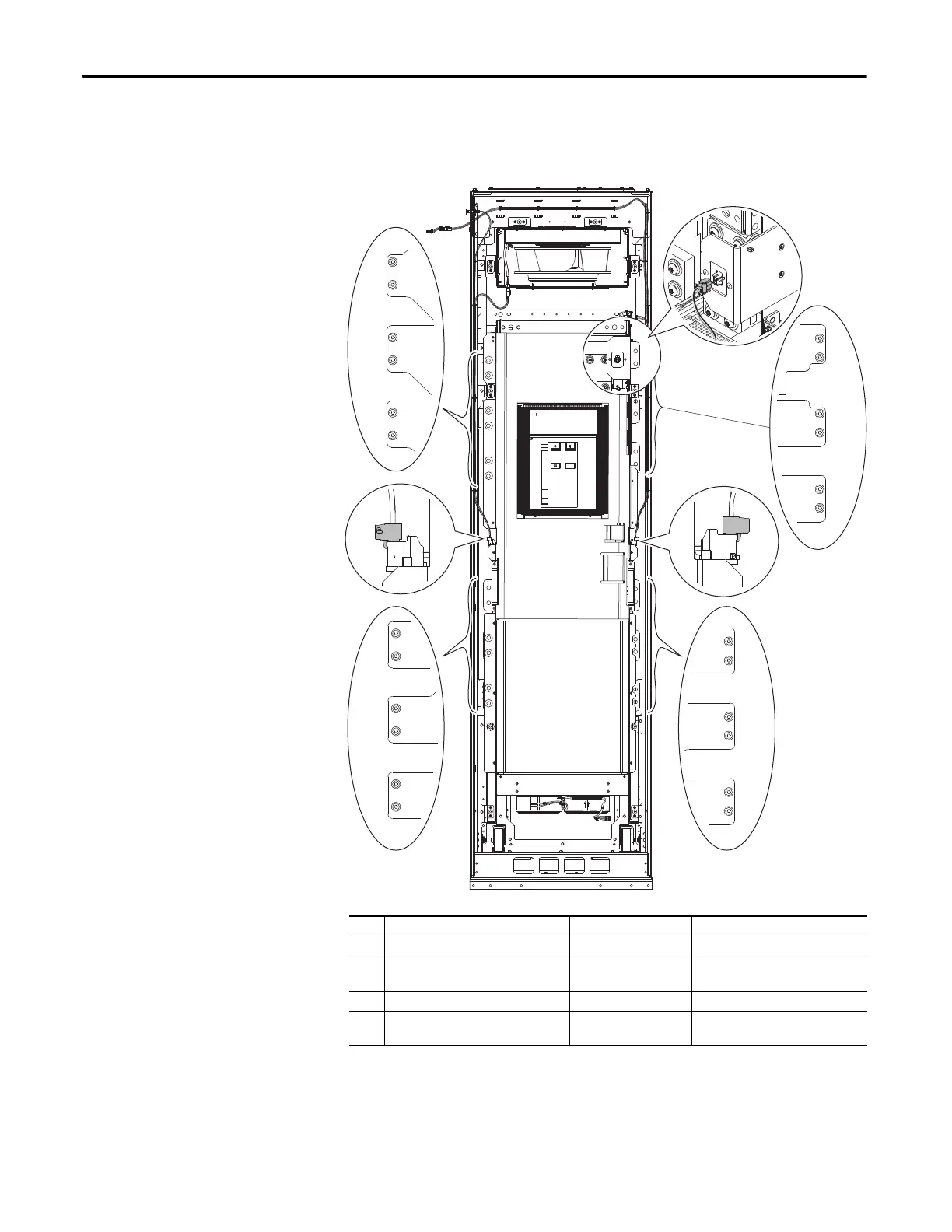

Figure 82 - Cabinet Options Wire Harness and Electrical Connections
➌
➌
➎
➎
➍
➍
➋
No. Description Torque Recommended Tool
➋ Thermostat connection (plug). N/A N/A
➌ AC Input connections (12 places) 22.4 N•m (200 lb•in) T45 Hexalobular driver with ~457
mm (18 in) extension
➍ Terminal block connections (plugs). N/A N/A
➎ Output Reactor connections (12 places) 22.4 N•m (200 lb•in) T45 Hexalobular driver with ~457
mm (18 in) extension
