Rockwell Automation Publication 750-IN001O-EN-P - October 2014 95
Lift and Mount the Drive Chapter 3

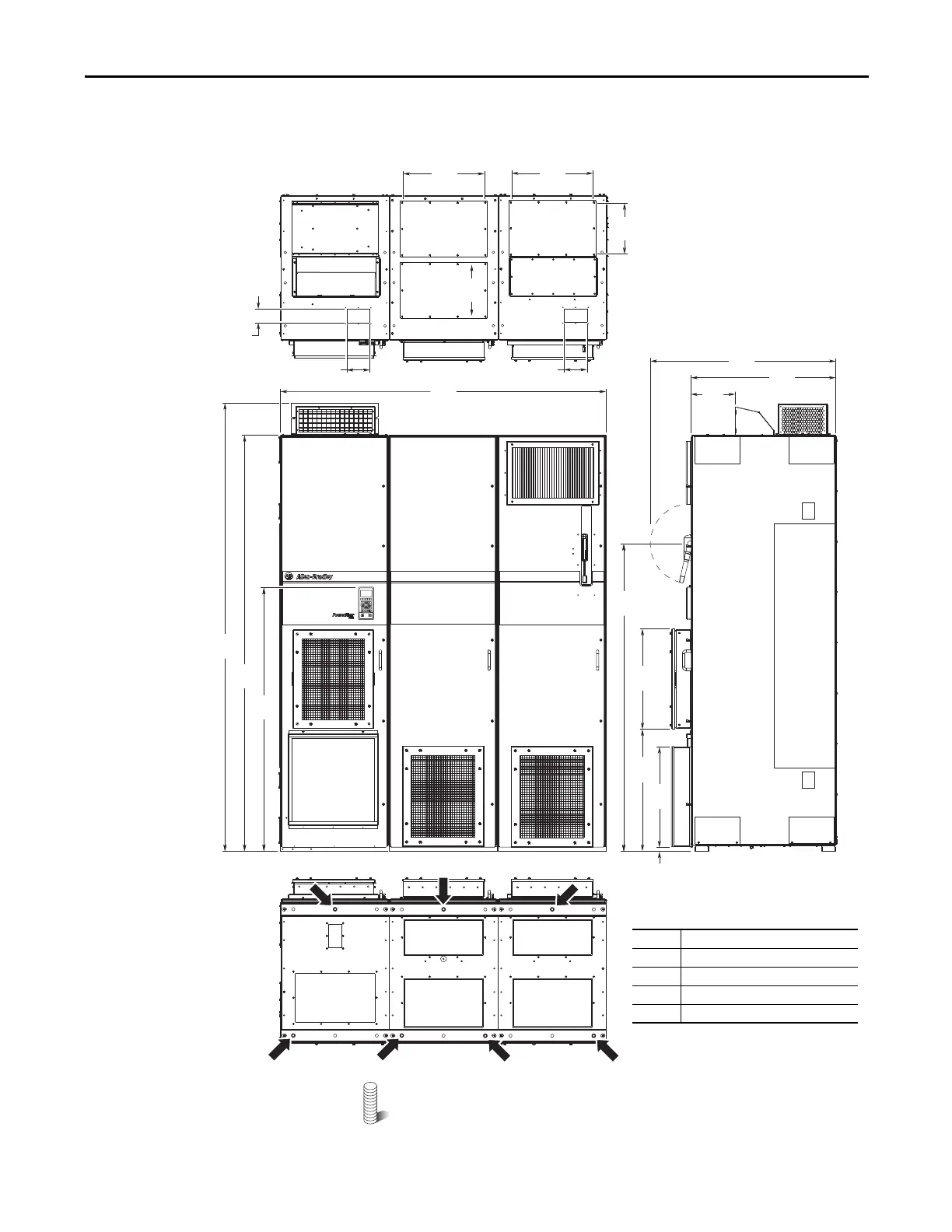

Figure 56 - IP54, NEMA 12, MCC Style Cabinet, Floor Mount Frame 8 (Enclosure Codes K and Y)
IP54, UL Type 12, MCC Style Cabinet, Floor Mount Frame 8 (Enclosure Code J)
800 mm Deep Drive with Wiring Bay and Cabinet Options Bay.
M12 (1/2 in.) Property Class 8.8 anchoring hardware recommended to
fasten the drive cabinet through its internal mounting angle to the
foundation. Anchor bolts may be pre-located and embedded in the
foundation prior to instillation.
➍
➊➊
➊
2477
(97.5)
2300
(90.6)
1800
(70.9)
1464
(57.6)
800
(31.5)
1030
(40.6)
244
(9.6)
675
(26.6)
556
(21.9)
24
(1.0)
556
(21.9)
310
(12.2)
480
(18.9)
1703
(67.0)
480
(18.9)
310
(12.2)
➌
➋
78
(3.1)
➋
127
(5.0)
➋➋
127
(5.0)
No. Description
➊ Power wiring conduit plates.
➋ Control wiring conduit plates.
➌ Optional HIM.
➍ Recommended seven-hole anchoring.
BOTTOM
TOP
