Rockwell Automation Publication 750-IN001O-EN-P - October 2014 111
Lift and Mount the Drive Chapter 3

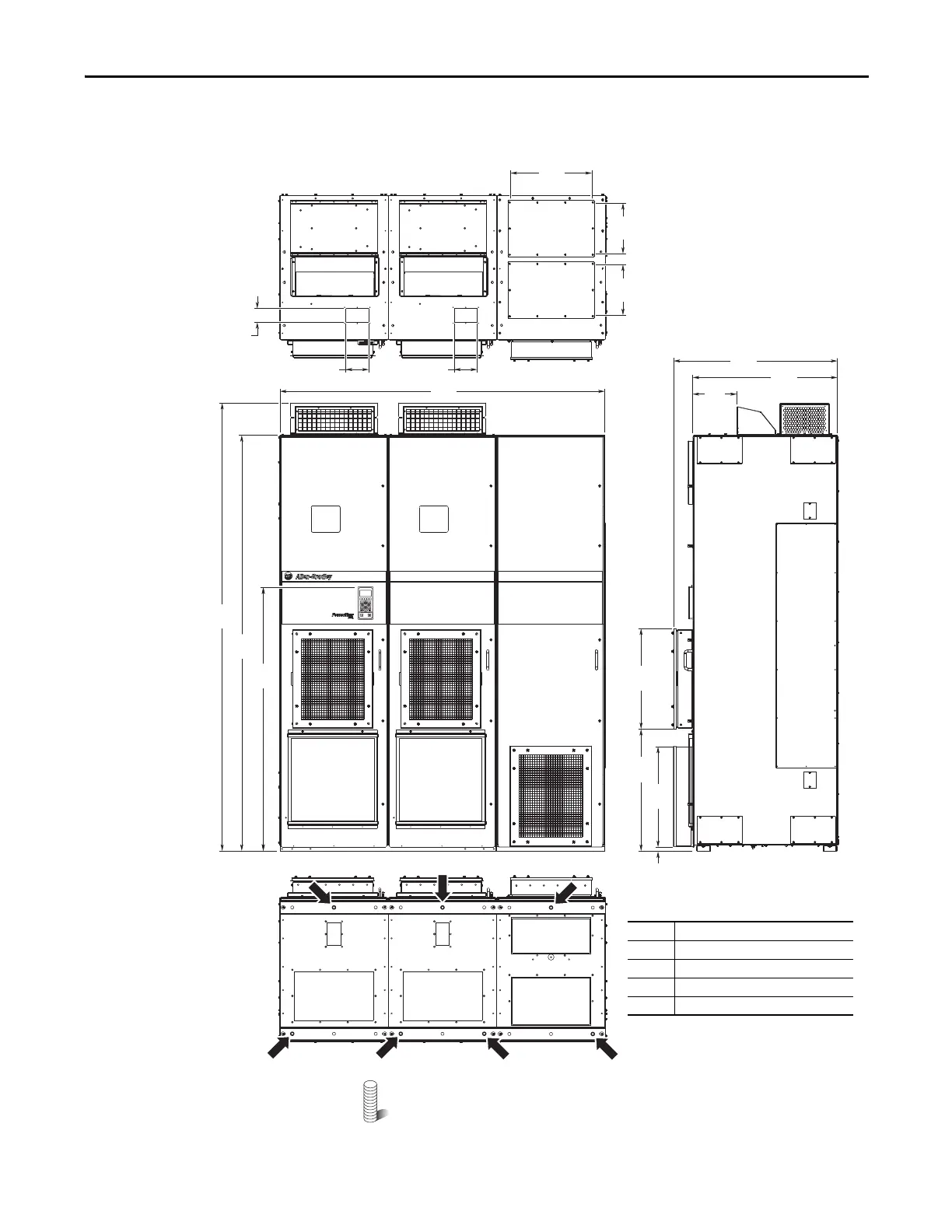

Figure 72 - IP54, NEMA 12, MCC Style Cabinet, Floor Mount Frame 9 (Enclosure Codes K and Y)
IP54, UL Type 12, MCC Style Cabinet, Floor Mount Frame 9 (Enclosure Code J)
With P14 - 800 mm Deep Drive with Wiring Bay.
M12 (1/2 in.) Property Class 8.8 anchoring hardware recommended to
fasten the drive cabinet through its internal mounting angle to the
foundation. Anchor bolts may be pre-located and embedded in the
foundation prior to instillation.
➊
➍
➊
2477
(97.5)
2300
(90.6)
1800
(70.9)
1464
(57.6)
800
(31.5)
909
(35.8)
244
(9.6)
675
(26.6)
556
(21.9)
24
(1.0)
556
(21.9)
310
(12.2)
310
(12.2)
480
(18.9)
➌
➋
78
(3.1)
➋
127
(5.0)
➋➋
127
(5.0)
No. Description
➊ Power wiring conduit plates.
➋ Control wiring conduit plates.
➌ Optional HIM.
➍ Recommended seven-hole anchoring.
TOP
BOTTOM
