Allen-Bradley PowerFlex 20-750-S1 User Manual

Rockwell Automation Publication 750-IN001O-EN-P - October 2014 119
Lift and Mount the Drive Chapter 3

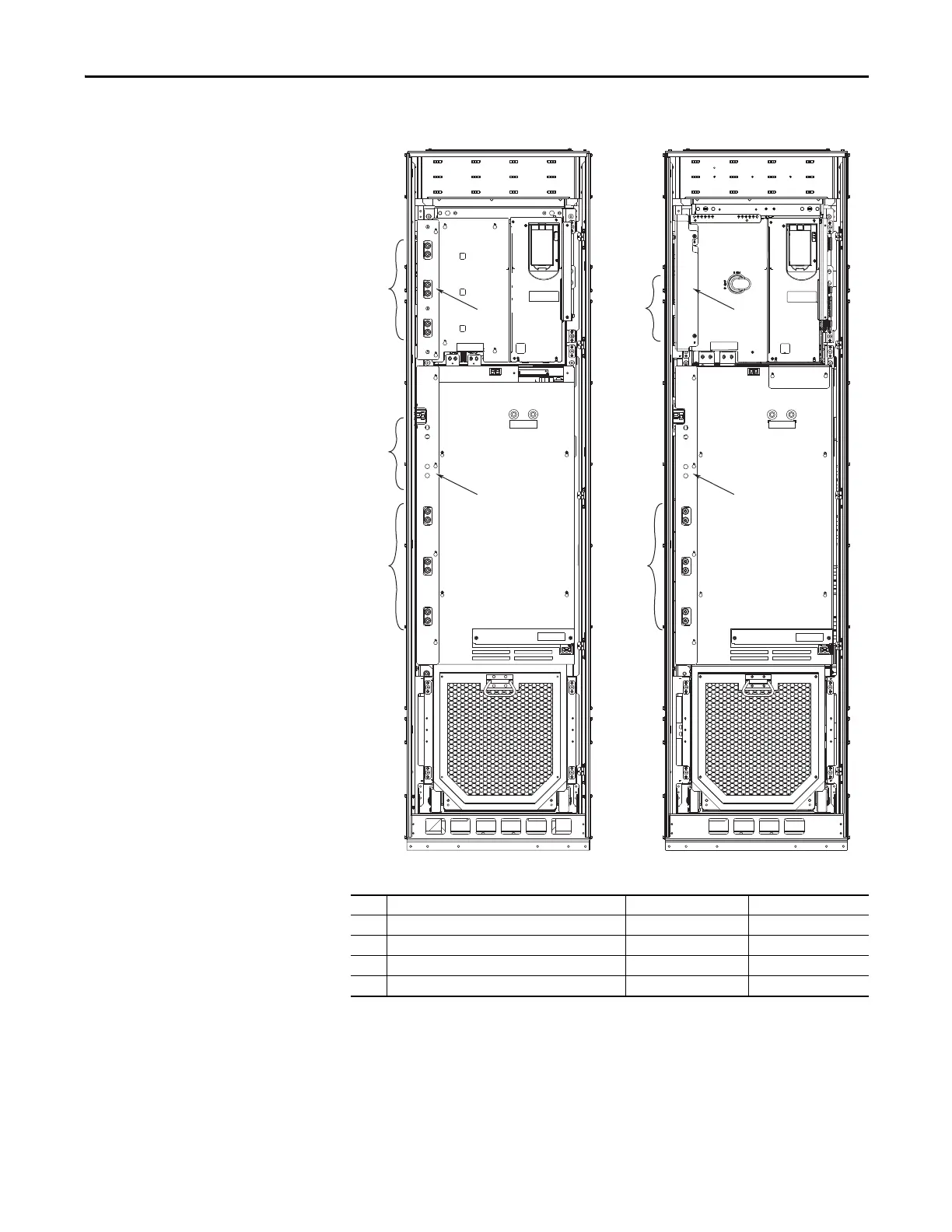

Figure 79 - Side Shield and Bus Bar Connections
No. Description Torque Recommended Tool
➊ Converter input power connections. 22.6 N•m (200 lb•in) T45 hexalobular (Torx)
➋ DC bus connections (if equipped). 22.6 N•m (200 lb•in) T45 hexalobular (Torx)
➌ Inverter output power connections. 22.6 N•m (200 lb•in) T45 hexalobular (Torx)
➍ Side shields 2.8 N•m (25 lb•in) T25 hexalobular (Torx)
➊
➊
➋
➌
➌
➍
➍ ➍
➍
Common DC Input DriveAC Input Drive
