Chapter 3 Lift and Mount the Drive

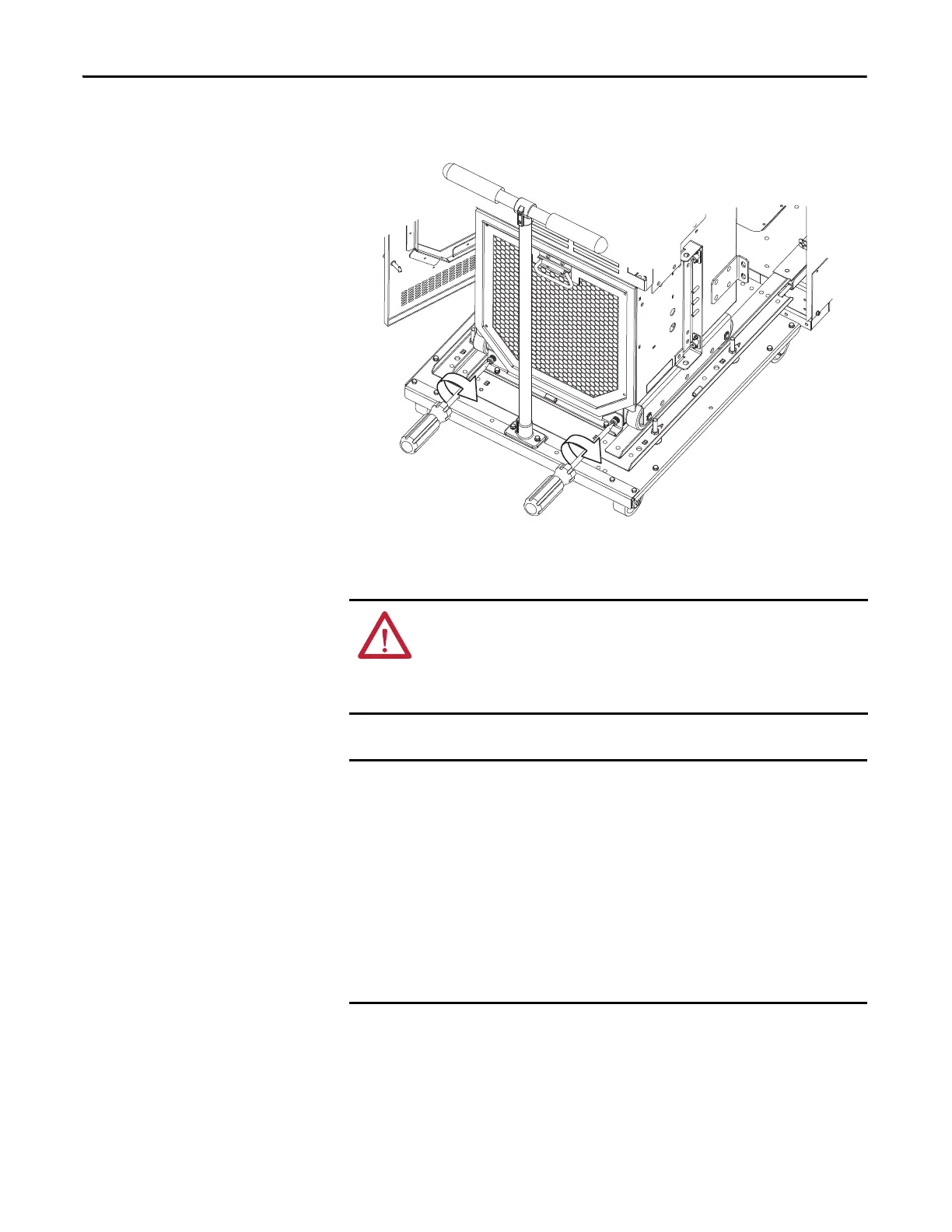

3. Engage and tighten the capture screws to lock the drive assembly or
cabinet options assembly to the Stop.
4. Release the retaining clips to roll the drive assembly or cabinet options
assembly away from the cabinet.
ATTENTION: The drive assembly and cabinet options assembly have a high
center of gravity and a tip over hazard exists. To guard against death, serious
personal injury, and/or equipment damage, do not subject the drive assembly
or cabinet options assembly to high rates of acceleration or deceleration while
transporting. Do not push or pull above the points indicated.
Take precautions when using the Roll-out Cart to move the drive.
• Only use the Roll-out Cart to move the drive or cabinet options a short
distance in order to gain access to the cabinet interior.
• Do not attempt to move the drive or cabinet options on the Roll-out Cart
with the handle alone. The Roll-out Cart handle is designed for positioning
the empty cart.
• Only use the cart on a smooth and level surface.
• Verify the path for the cart is clear of debris and obstacles.
• Avoid sloped and rough surfaces.
• Always move the drive or cabinet options slowly.
