Allen-Bradley PowerFlex 20-750-S1 User Manual

254 Rockwell Automation Publication 750-IN001O-EN-P - October 2014
Chapter 5 I/O Wiring

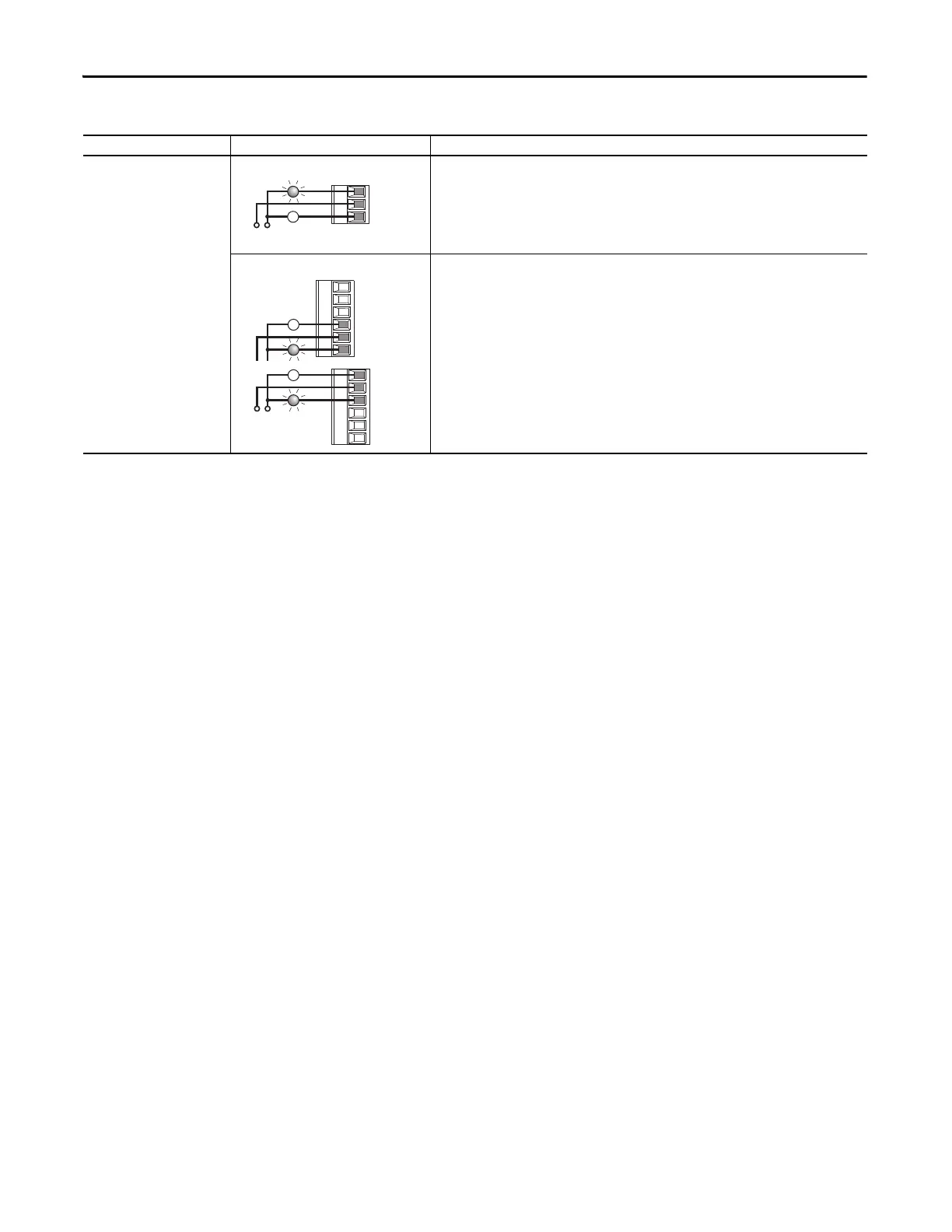

11-Series I/O Relay Wiring Examples
Input/Output Connection Example Required Parameter Changes
Relay Output
External supply
753 Main Control Board • Set Selection
Port 0: P230 [RO0 Sel] = Port 0: P935 [Drive Status 1], bit 7 = Faulted
• View Results
Port 0: P225 [Dig Out Sts]
11-Series I/O Module • Set Selection
Port X (11-Series I/O Module): P10 [RO0 Sel] = Port 0: P935 [Drive Status 1], bit 7 = Faulted
• View Results
Port X (11-Series I/O Module): P5 [Dig Out Sts]
Power
Source
R0NC
R0C
R0NO
Power
Source
or
R0NO
R0C
R0NC
R1NO
R1C
R1NC
