88 Rockwell Automation Publication 750-IN001O-EN-P - October 2014
Chapter 3 Lift and Mount the Drive

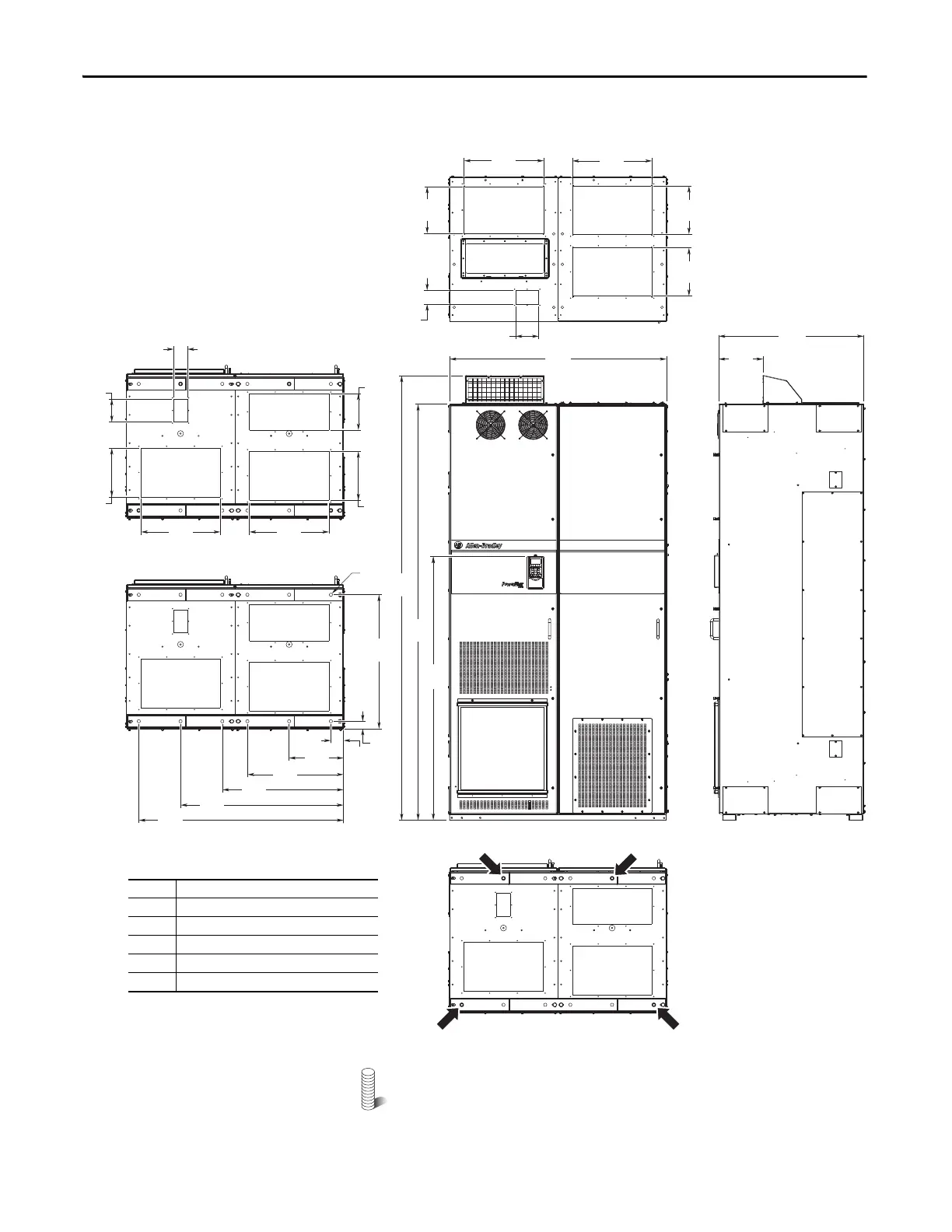

Figure 49 - IP20, NEMA/UL Type 1, MCC Style Cabinet, Floor Mount Frame 8
Enclosure Code L, P, W - 800 mm Deep Drive with Wiring Bay.
M12 (1/2 in.) Property Class 8.8 anchoring hardware recommended to
fasten the drive cabinet through its internal mounting angle to the
foundation. Anchor bolts may be pre-located and embedded in the
foundation prior to instillation.
127
(5.0)
2453
(96.6)
1200
(47.2)
2300
(90.6)
440
(17.3)
78
(3.1)
300
(11.8)
531
(20.9)
669
(26.3)
900
(35.4)
1131
(44.5)
69
(2.7)
ø18.0
(0.71)
742
(29.2)
43
(1.7)
800
(31.5)
240
(9.4)
270
(10.6)
127
(5.0)
76
(3.0)
440
(17.3)
200
(7.9)
➊➊
➊
➋
➊➊
➊
➋
➎
➍
440
(17.3)
267
(10.6)
1464
(57.6)
➌
440
(17.3)
268
(10.5)
266
(10.5)
266
(10.5)
No. Description
➊ Power wiring conduit plates.
➋ Control wiring conduit plates.
➌ Optional exhaust hood.
➍ Optional HIM.
➎ Recommended four-hole anchoring.
BOTTOM
TOP
BOTTOM
