allen 9910 - 3-Piece Wand Assembly

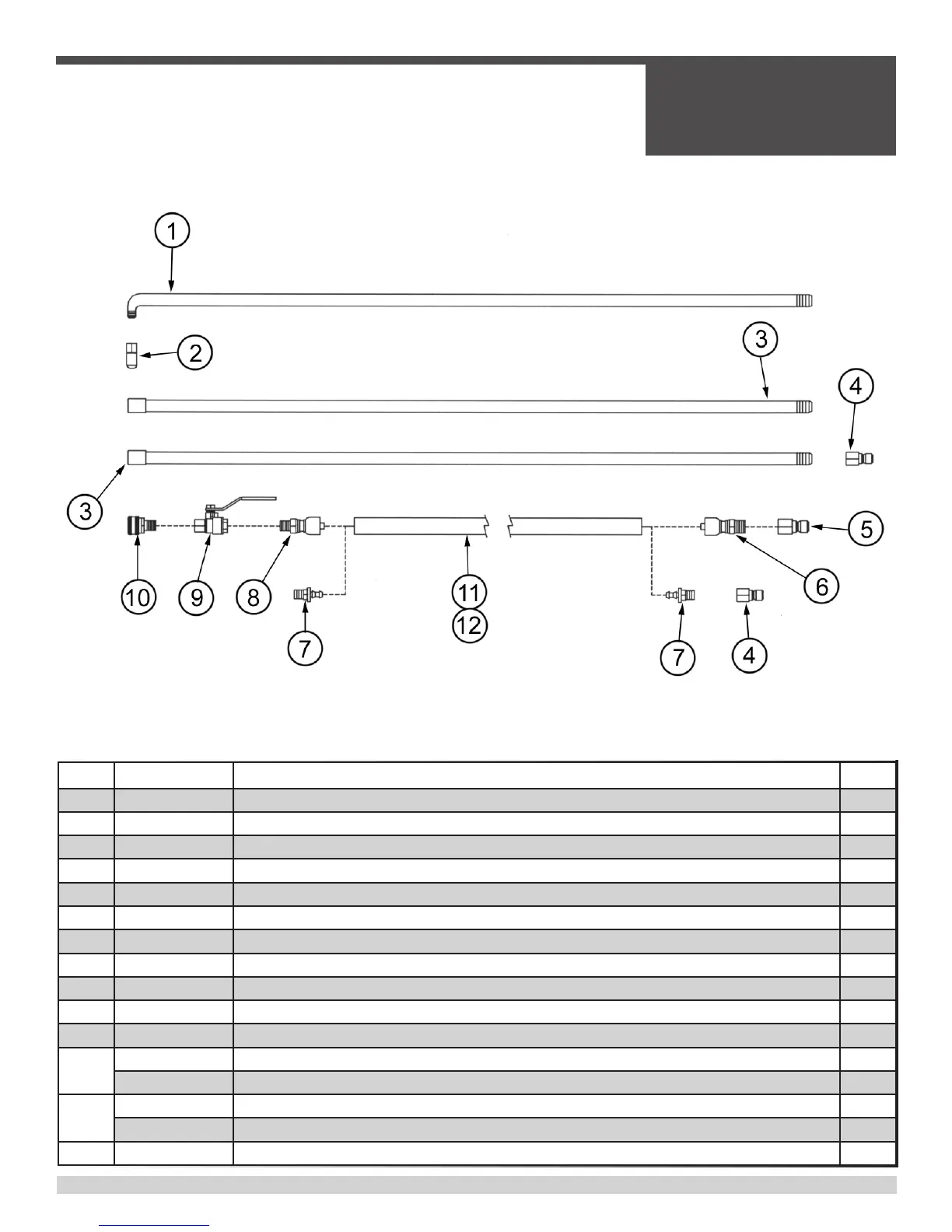

4.11 - 3-Piece Spray Wand Assembly,
Illustration & Parts List
ITEM PART # DESCRIPTION QTY
- 035570 Assembly, 3-Piece Wand Kit -
1 010236 Spray Wand End with 1/4” Elbow 1
2 010234 Nozzle, 1/4” Hudson Spray 1
3 010235 Spray Wand Center, 3’ Section 2
4 010176 Fitting, Nipple, QDC, 3/8”, Male (7560 & 9910) 1
5 010177 Fitting, Nipple, QDC, 1/2”, Male (7560 & 9910) 1
6 013055 Swage, 11355-6-6 Swiv. (9910 ONLY) 1
7 010196 Fitting, Push-lock, 3/8”x 1/2”-14, Male, (6500 & 7560) 2
8 013057 Swage, 11355-8-6 Swiv. (9910 ONLY) 1
9 010238 Valve, 3/8”, Parker Ball 1
10 010188 Fitting, Nipple, QDC, 3/8”, Feale (7560 & 9910) 1
11
028939 Hose, 3/8”, Aeroquip, High Impulse, 25’ (9910 ONLY) 1
028939 Hose, 3/8”, Aeroquip, High Impulse, 100’ (Optional) 1
12
013392 Hose, 3/8”, Push-lock, 25’ (6500 & 7560) 1
013392 Hose, 3/8”, Push-lock, 25’ (6500 & 7560) [Optional] 1
13 019430 Fastener, Clamp, #4 Mini Hose (6500 & 7560) 2
SECTION 4
PARTS
038479 Page 55
