The Murphy PowerView 380 features robust, multifunction
displays for advanced monitoring of multiple electronic
engines.
It’s capable of monitoring multiple engines and machine
parameters on an easy to-read 3.8-inch (97mm) QVGA
monochrome LCD. The display is capable of handling
sophisticated engine diagnostics as well as basic engine
alarm/shutdown. Customize the PV380 display using
the PowerVision Conguration Studio®, an intuitive tool
designed to make customization simple. Using the software
tool, users can tailor basic graphics, designate screen layout
and dene custom parameters. The PV380 is equipped with
ve tactile push buttons to quickly access a convenient menu. In addition, a back-lit and heated graphic
display with LEDs indicate alarm or shutdown status.

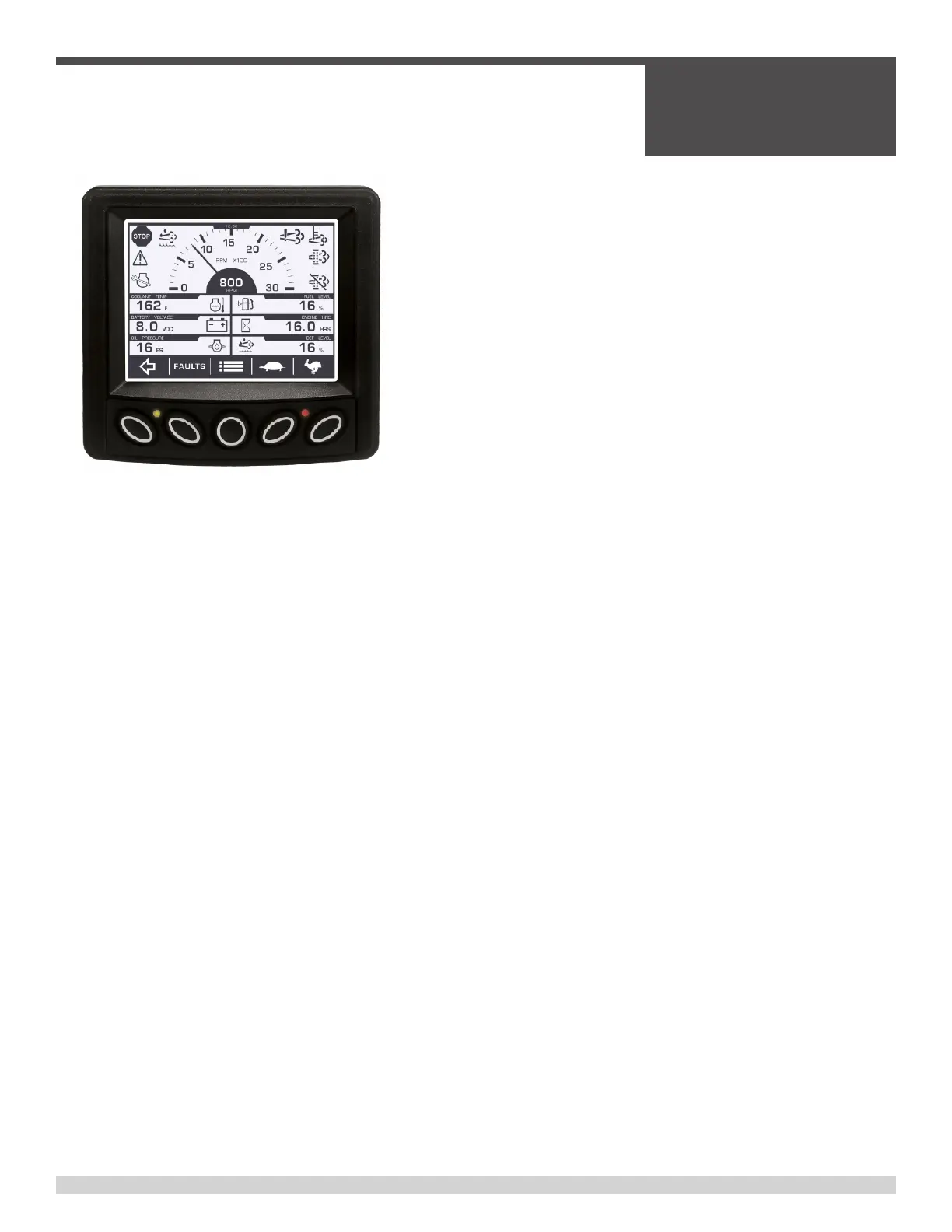

Flat Screen Display
A 3.8” QVGA monochrome LCD screen displays gauges, soft key commands and fault messages as well
as menu options for setup and conguration.
Soft Keys and Commands
The ve tactile push buttons on the bottom of the display correspond to the options available for the
screen being displayed.
Alarms
Red and amber warning LEDs; set point triggered output for external piezo buzzer or shut-down relay.
